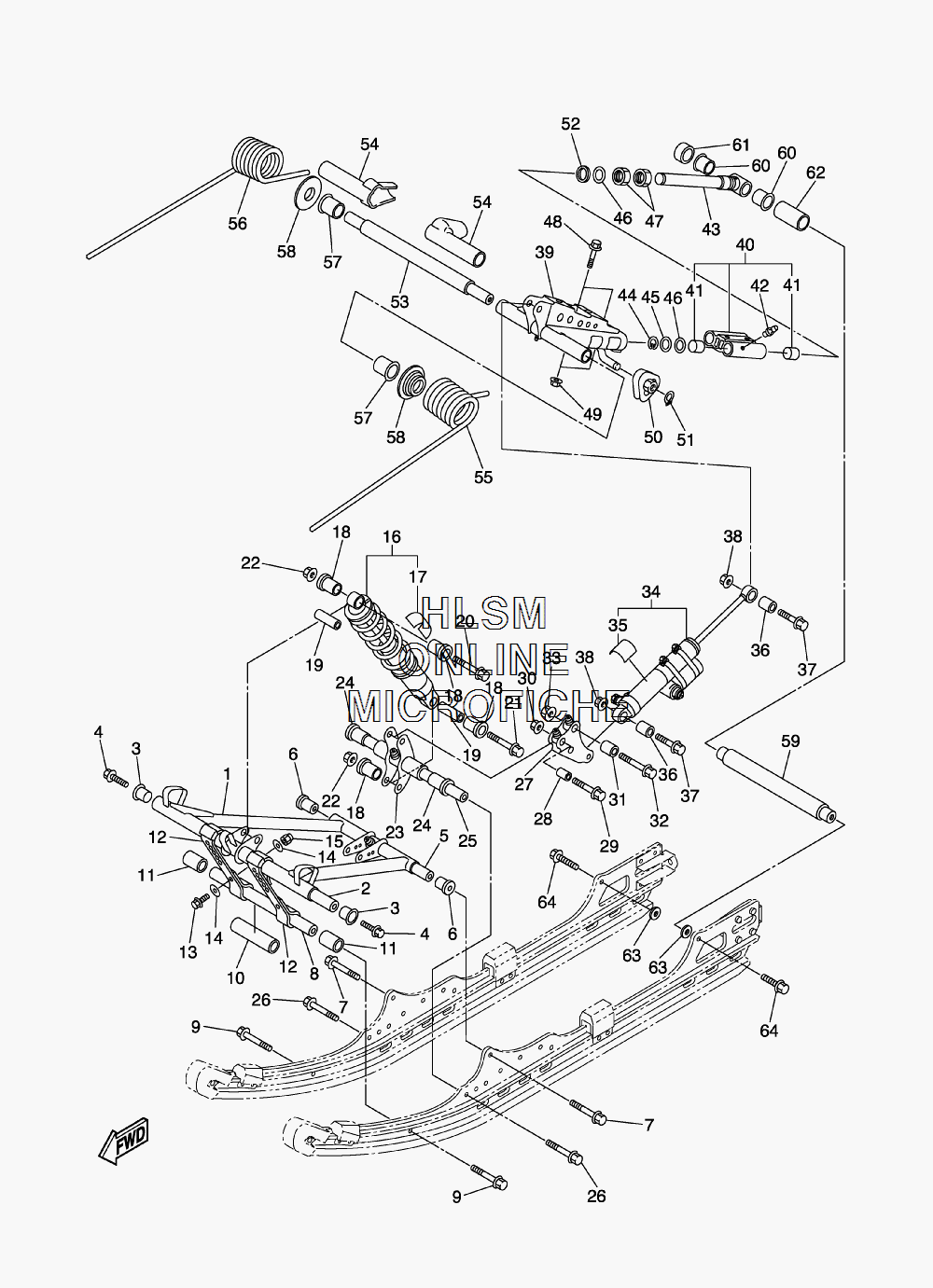

SUSPENSION - TORQUE ARM ASSY для Yamaha NYTRO - 2007 года выпуска
-
№АртикулНазвание
-
18ES-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28ES-47465-10-00 SHAFT 1SHAFT 1
-
390386-22001-00 BUSHBUSH
-
490105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
58ES-47486-00-00 SHAFT 4SHAFT 4
-
690387-10022-00 COLLARCOLLAR
-
790105-10092-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-47485-00-00 SHAFT 3SHAFT 3
-
990105-10092-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-19002-00 COLLARCOLLAR
-
1190387-19001-00 COLLARCOLLAR
-
128ES-47495-00-00 STOPPER 1STOPPER 1
-
1397007-06025-00 BOLTBOLT
-
1490201-06747-00 WASHER, PLATEWASHER, PLATE
-
1595707-06300-00 NUT, NYLONNUT, NYLON
-
168GF-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
174AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
1890381-14101-00 BUSH, SOLIDBUSH, SOLID
-
1990387-105G5-00 COLLARCOLLAR
-
2095817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2190101-10738-00 BOLTBOLT
-
2295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
238ES-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2490386-20001-00 BUSHBUSH
-
258ES-47487-00-00 SHAFT 5SHAFT 5
-
2690105-10092-00 BOLT, FLANGEBOLT, FLANGE
-
278ES-47416-00-00 BRACKET 2BRACKET 2
-
2890387-10024-00 COLLARCOLLAR
-
2995817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190387-12022-00 COLLARCOLLAR
-
3295817-12050-00 BOLT, FLANGEBOLT, FLANGE
-
3395607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
348GF-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
354AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
3690387-10023-00 COLLARCOLLAR
-
3795817-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
398ES-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
408ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
4190380-24001-00 ...BUSH, SOLID...BUSH, SOLID
-
4293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
438ES-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
4499009-24400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
4590201-24015-00 WASHER, PLATEWASHER, PLATE
-
4690202-25001-00 WASHER, PLATEWASHER, PLATE
-
478ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
4895817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
4995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
508ES-47447-00-00 HOOK 2HOOK 2
-
5199009-14400-00 CIRCLIPCIRCLIP
-
5290202-25002-00 WASHER, PLATEWASHER, PLATE
-
538ES-47475-01-00 SHAFT 2SHAFT 2
-
548ES-47445-00-00 PROTECTORPROTECTOR
-
558GF-47473-00-00 SPRING, REAR 1 (K=1900NMM/DEG)SPRING, REAR 1 (K=1900NMM/DEG)
-
568GF-47474-00-00 SPRING, REAR 2 (K=1900NMM/DEG)SPRING, REAR 2 (K=1900NMM/DEG)
-
5790381-28108-00 BUSH, SOLIDBUSH, SOLID
-
588ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
598ES-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
6090386-25001-00 BUSHBUSH
-
6190387-26002-00 COLLARCOLLAR
-
6290387-26003-00 COLLARCOLLAR
-
6390201-10028-00 WASHER, PLATEWASHER, PLATE
-
6495817-10030-00 BOLT, FLANGEBOLT, FLANGE
