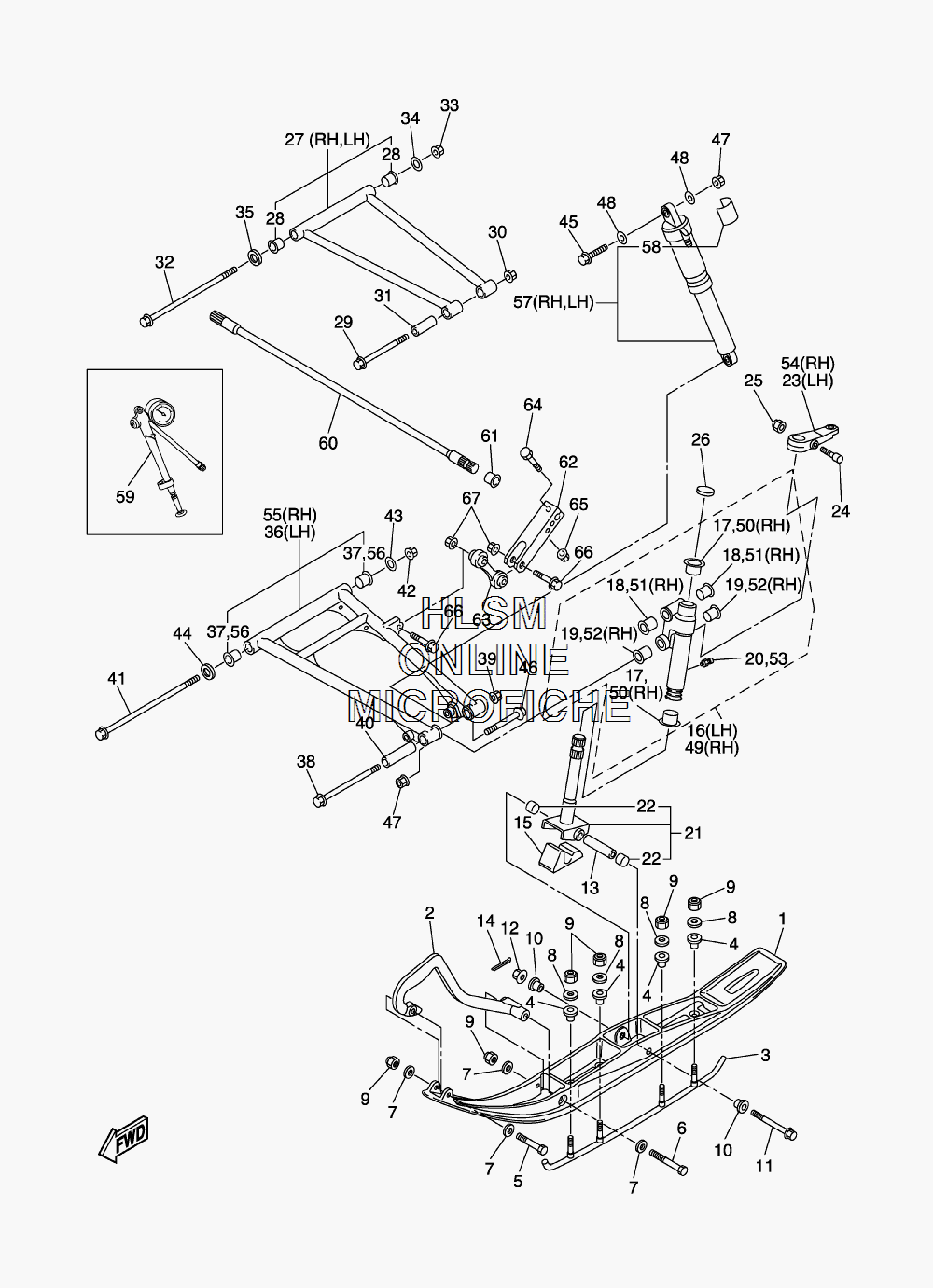

SUSPENSION - FRONT W/ SKI ASSY для Yamaha NYTRO - 2007 года выпуска
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1SKI 1
-
28FB-F3712-00-00 RED 8DM HANDLE PLASTICRED 8DM HANDLE PLASTIC
-
38EK-F3731-00-00 RUNNER 1RUNNER 1
-
48EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
59702M-08055-00 BOLTBOLT
-
69702M-08100-00 BOLTBOLT
-
790201-08784-00 WASHER, PLATEWASHER, PLATE
-
890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
99570M-08300-00 NUT, NYLONNUT, NYLON
-
108EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1790381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
218ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2490110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
263YK-22472-40-00 CAP, CASECAP, CASE
-
278ES-23540-60-00 FRONT UPPER ARM COMP.FRONT UPPER ARM COMP.
-
2890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2990105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
3095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190387-10N58-00 COLLARCOLLAR
-
3290105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3590209-15N50-00 WASHERWASHER
-
368ES-23570-60-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
3790381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3890105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
3995607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090387-12N54-00 COLLARCOLLAR
-
4190105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4490209-15N50-00 WASHERWASHER
-
4590105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
4690105-10392-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
498ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
5090381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5290381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
548FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
558ES-23580-60-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
5690381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
578GH-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
588GT-F2259-50-00 ...LABEL, WARNING...LABEL, WARNING
-
598GT-F3703-00-00 FOX AIR PUMPFOX AIR PUMP
-
608FG-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
618FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
628FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
638ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6490101-06765-00 BOLTBOLT
-
6595604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6695814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
6795604-08200-00 NUT, U FLANGENUT, U FLANGE
