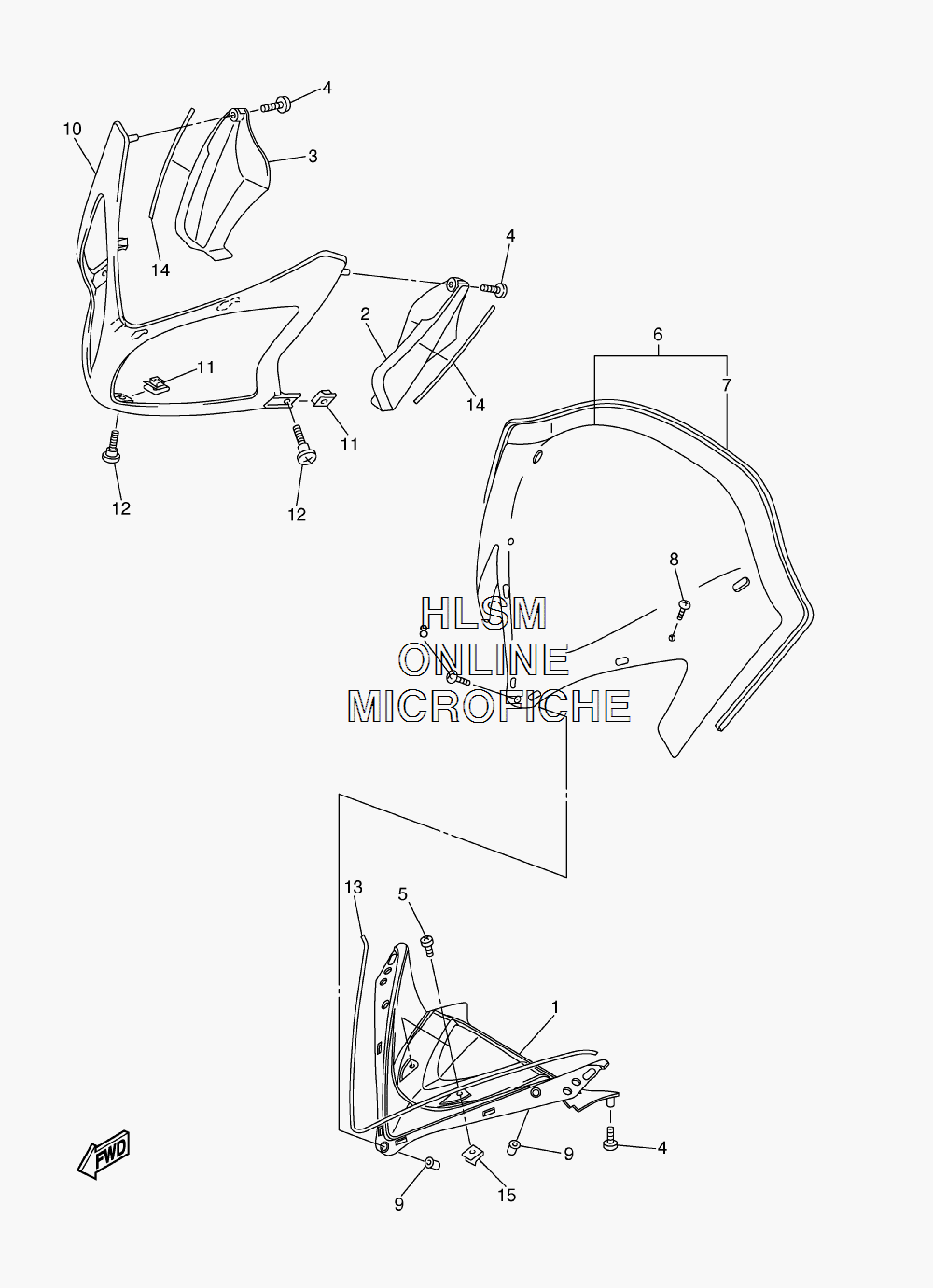

HOOD - WINDSHIELD ASSY для Yamaha NYTRO - 2007 года выпуска`
-
№АртикулНазвание
-
18FA-77251-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28FA-77185-00-00 PLATE 1PLATE 1
-
38FA-77186-00-00 PLATE 2PLATE 2
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
598907-06014-00 SCREW, BINDSCREW, BIND
-
68GF-K72A0-20-00 WINDSCREEN COMP.WINDSCREEN COMP.
-
78GF-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
890150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
990179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
108FA-77231-A0-33 FAIRING (BLACK)FAIRING (BLACK)
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
138FA-77214-00-00 TRIM, LOWERTRIM, LOWER
-
148FA-77215-00-00 TRIM 3TRIM 3
-
1590183-06053-00 NUT, SPRINGNUT, SPRING
