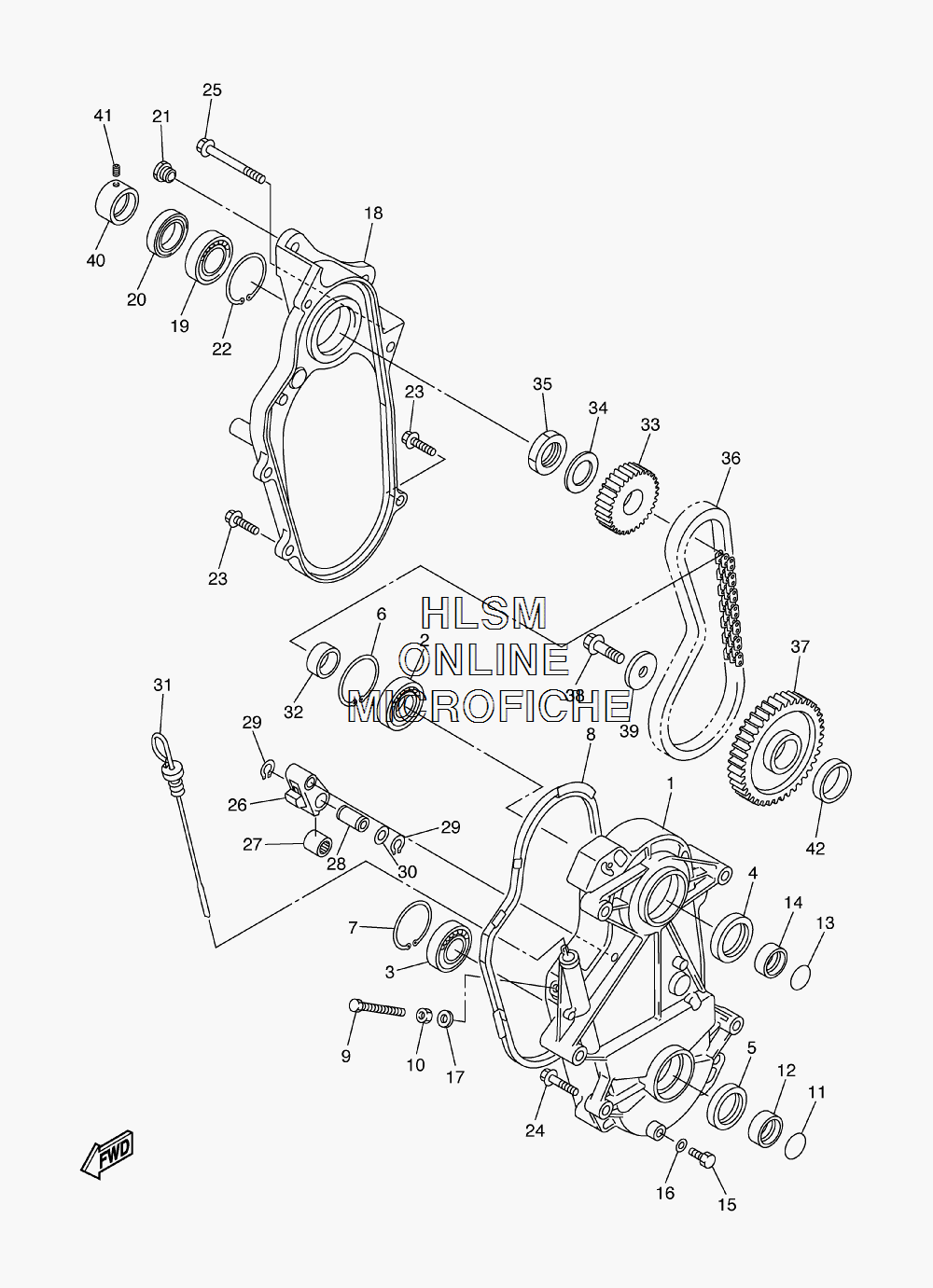

CHAINCASE ASSY для Yamaha NYTRO - 2007 года выпуска`
-
№АртикулНазвание
-
18FP-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393306-20592-00 BEARINGBEARING
-
493102-40014-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FP-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10700-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1393210-29282-00 O-RINGO-RING
-
1490387-30004-00 COLLARCOLLAR
-
1597007-08014-00 BOLTBOLT
-
1690210-08017-00 WASHER, SEALWASHER, SEAL
-
1790201-106H5-00 WASHER, PLATEWASHER, PLATE
-
188ES-47543-10-00 CAP, HOUSINGCAP, HOUSING
-
1993306-20511-00 BEARINGBEARING
-
2093102-35473-00 OIL SEALOIL SEAL
-
2190179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2299009-52500-00 CIRCLIPCIRCLIP
-
2390105-08748-00 BOLT, FLANGEBOLT, FLANGE
-
2495827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2595827-10090-00 BOLT, FLANGEBOLT, FLANGE
-
268ES-47613-00-00 HOLDERHOLDER
-
2793311-32685-00 BEARINGBEARING
-
2890387-22005-00 COLLARCOLLAR
-
2999009-26400-00 CIRCLIPCIRCLIP
-
3090201-266P2-00 WASHER, PLATEWASHER, PLATE
-
318FA-47546-00-00 LEVEL, OILLEVEL, OIL
-
3290387-30005-00 COLLARCOLLAR
-
338FA-17682-10-00 SPROCKET, CHAIN DRIVE (21T)SPROCKET, CHAIN DRIVE (21T)
-
3490208-28001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3590170-28009-00 NUTNUT
-
3694890-09070-00 CHAIN (70L)CHAIN (70L)
-
378DW-47587-01-00 SPROCKET, CHAIN DRIVEN (40T)SPROCKET, CHAIN DRIVEN (40T)
-
3890105-10751-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-10321-00 WASHER, PLATEWASHER, PLATE
-
4090387-25009-00 COLLARCOLLAR
-
4190113-06064-00 BOLT, SETBOLT, SET
-
4290387-2508B-00 COLLARCOLLAR
