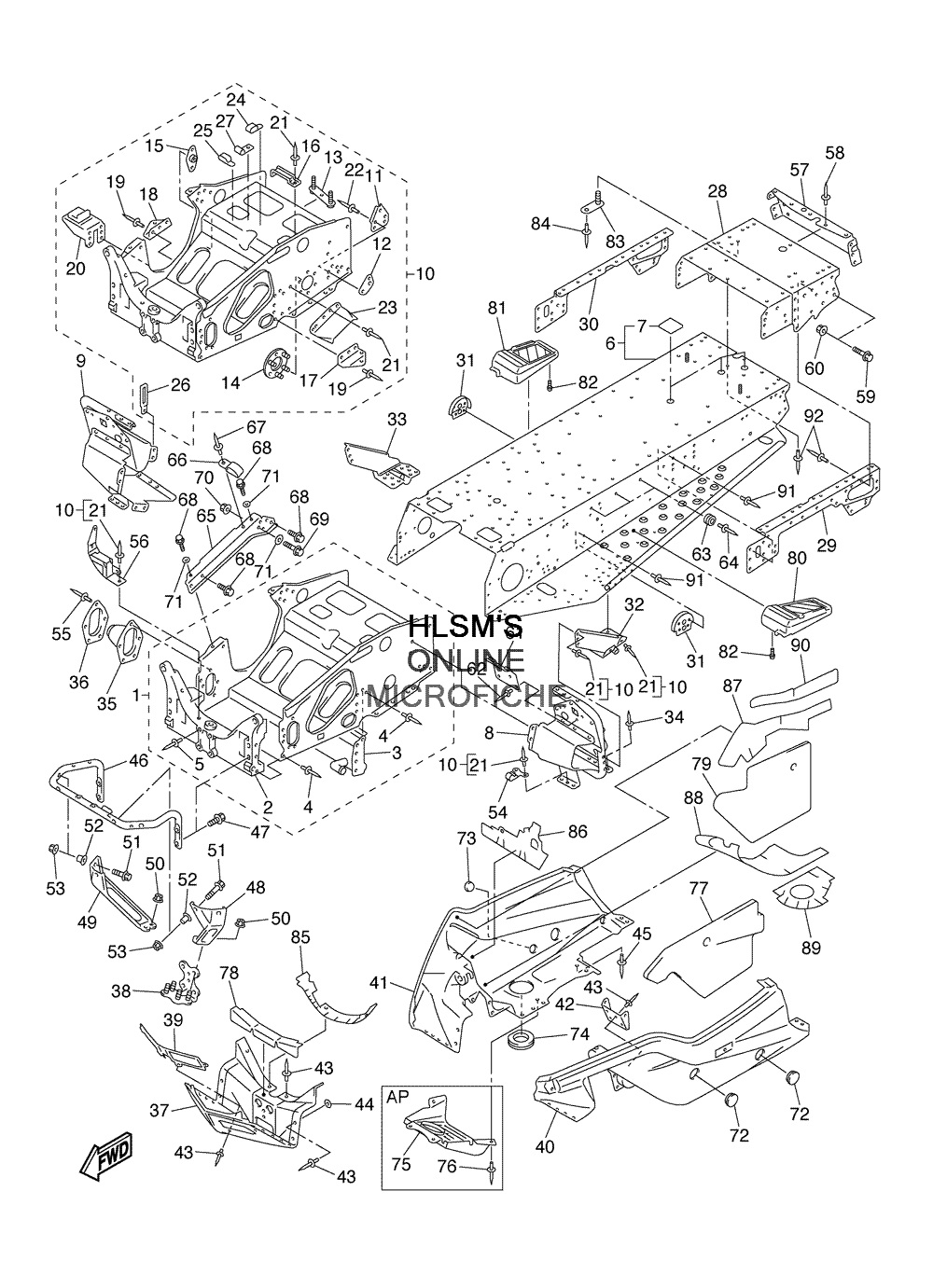

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VENTURE 600 - 2004 года выпуска`
-
№АртикулНазвание
-
18FD-21940-09-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28EK-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38EX-12440-10-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
590267-48057-00 ...RIVET, BLIND...RIVET, BLIND
-
68FF-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
78CR-2198J-00-00 ...COVER 3...COVER 3
-
88EK-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
98EK-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
108EX-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
118CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
128CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
138CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
148EK-21920-01-00 ...HOUSING, REINF SUB-ASSY. (L.H)...HOUSING, REINF SUB-ASSY. (L.H)
-
158CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
168DN-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
178EK-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
188EK-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1990267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
208EX-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2190267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
2290267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
238CR-2198G-01-00 ...COVER 2...COVER 2
-
2490461-05003-00 ...CLAMP...CLAMP
-
2590461-06142-00 ...CLAMP...CLAMP
-
2690462-05059-00 ...CLAMP...CLAMP
-
2790461-10148-00 ...CLAMP...CLAMP
-
288CW-21916-02-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
298CW-21964-02-00 PATCH 4PATCH 4
-
308CW-21965-02-00 PATCH 5PATCH 5
-
318CW-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
328DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
338DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
3490269-07080-00 RIVETRIVET
-
358DN-2198F-00-00 COVER 1COVER 1
-
368CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
378EX-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
388EK-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
398CR-77128-00-00 STAY 4STAY 4
-
408EK-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
418EK-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
428EK-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
4390267-48018-00 RIVET, BLINDRIVET, BLIND
-
4490201-05033-00 WASHER, PLATEWASHER, PLATE
-
4590267-47187-00 RIVET, BLINDRIVET, BLIND
-
468EK-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4795807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
488EK-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
498EK-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
5095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5195807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
5290387-08015-00 COLLARCOLLAR
-
5395707-08500-00 NUT, FLANGENUT, FLANGE
-
548EK-21999-00-00 CLAMP, WIREHARNESSCLAMP, WIREHARNESS
-
5590267-47197-00 RIVET, BLINDRIVET, BLIND
-
568EX-21971-00-00 BRACKET, SPRINGBRACKET, SPRING
-
578CR-21923-02-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5890267-47195-00 RIVET, BLINDRIVET, BLIND
-
5995027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
6095707-08500-00 NUT, FLANGENUT, FLANGE
-
618CR-21973-00-00 HOOKHOOK
-
6290267-48169-00 RIVET, BLINDRIVET, BLIND
-
6381K-2471F-00-00 BUTTONBUTTON
-
6490267-40069-00 RIVET, BLINDRIVET, BLIND
-
658CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6690461-08113-00 CLAMPCLAMP
-
6790267-48095-00 RIVET, BLINDRIVET, BLIND
-
6890105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6995827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
7095707-10500-00 NUT, FLANGENUT, FLANGE
-
7192907-10200-00 WASHER, PLAINWASHER, PLAIN
-
7290338-44093-00 PLUGPLUG
-
7390338-30256-00 PLUGPLUG
-
748DF-21998-10-00 SPACERSPACER
-
758EN-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
7690267-49004-00 RIVET, BLINDRIVET, BLIND
-
778EK-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
788EK-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
798EK-77264-10-00 LINING, SHROUD 4LINING, SHROUD 4
-
808DM-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
818DM-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
8297707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
838CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
8490267-47186-00 RIVET, BLINDRIVET, BLIND
-
858EX-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
868EX-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
878EX-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
888EX-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
898EX-77268-00-00 LINING,SHROUD 8LINING,SHROUD 8
-
908EX-7717J-00-00 TAPE,5TAPE,5
-
9190267-47195-00 RIVET, BLINDRIVET, BLIND
-
9290267-47186-00 RIVET, BLINDRIVET, BLIND
