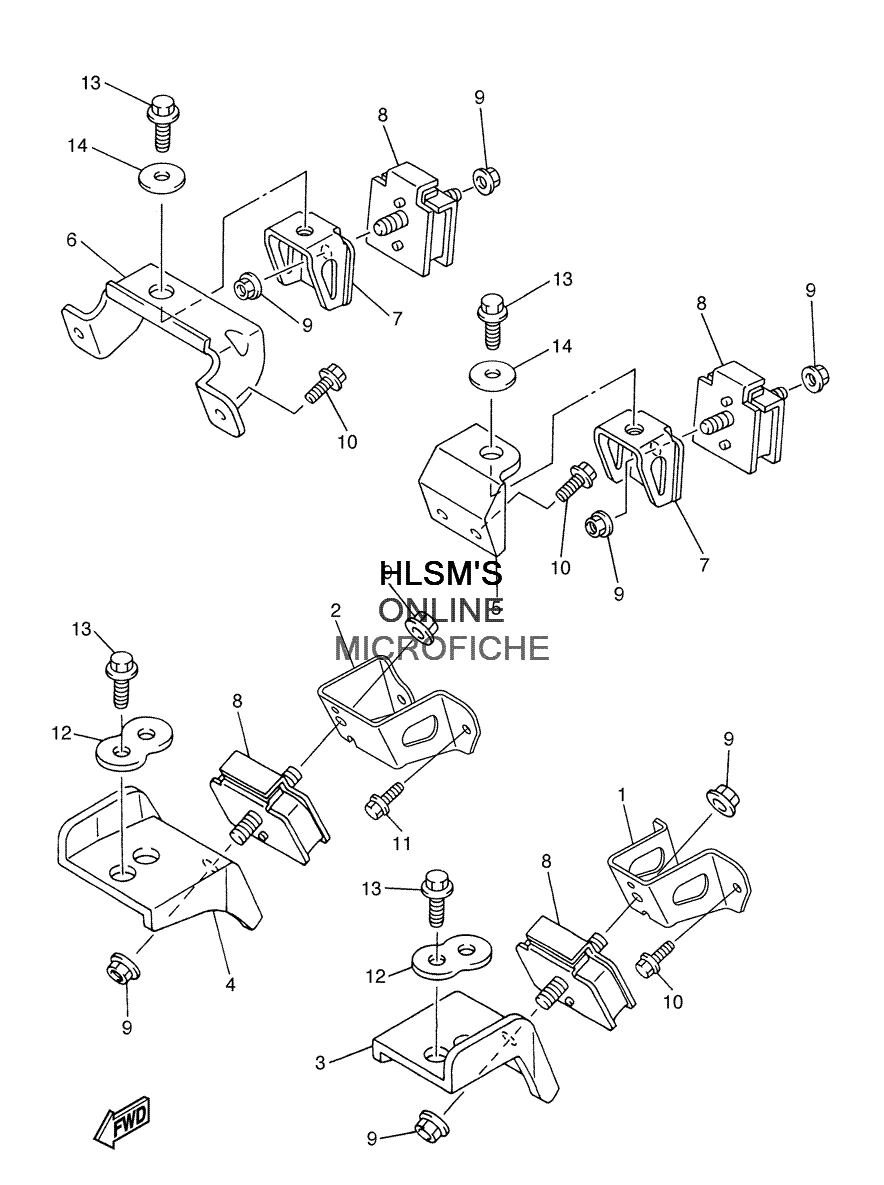

ENGINE MOUNTING для Yamaha VENTURE 600 - 2004 года выпуска`
-
№АртикулНазвание
-
18EX-21415-00-00 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
28EX-21416-00-00 BRACKET, FRONT UPPER 2BRACKET, FRONT UPPER 2
-
38DF-21417-01-00 BRACKET, FRONT LOWER 1BRACKET, FRONT LOWER 1
-
48DF-21418-00-00 BRACKET, FRONT LOWER 2BRACKET, FRONT LOWER 2
-
58CR-21425-00-00 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
68CH-21425-00-00 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
78CR-21427-10-00 BRACKET, REAR LOWER 1BRACKET, REAR LOWER 1
-
88CH-21486-10-00 DAMPER 2DAMPER 2
-
995707-10500-00 NUT, FLANGENUT, FLANGE
-
1095817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1195817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
128DF-2145B-10-00 PLATE, ENGINE MOUNTPLATE, ENGINE MOUNT
-
1395817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-10321-00 WASHER, PLATEWASHER, PLATE
