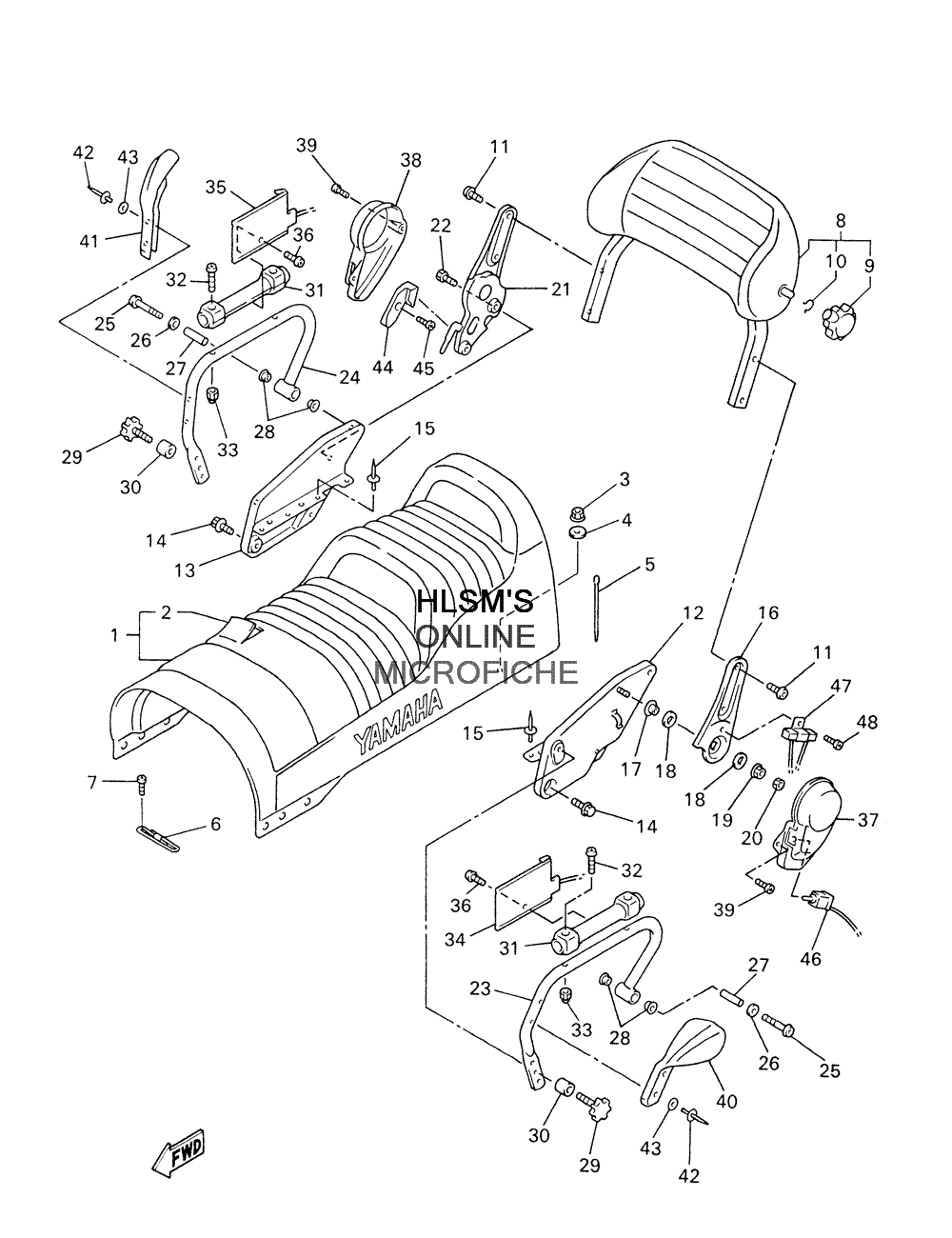

SEAT ASSY для Yamaha VENTURE 600 - 2004 года выпуска`
-
№АртикулНазвание
-
18DM-24730-10-00 DOUBLE SEAT ASSY.DOUBLE SEAT ASSY.
-
28DM-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
395707-08300-00 NUT, FLANGENUT, FLANGE
-
490201-086A3-00 WASHER, PLATEWASHER, PLATE
-
590464-13077-00 CLAMPCLAMP
-
68CR-24734-00-00 BAND, SEATBAND, SEAT
-
790154-06040-00 SCREW, BINDINGSCREW, BINDING
-
88DM-24790-00-00 SEAT BACK ASSY.SEAT BACK ASSY.
-
98DM-24598-00-00 ...KNOB...KNOB
-
108DM-24519-00-00 ...CLIP...CLIP
-
1192017-10016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
128DM-2474F-10-00 STAY, FRONT 1STAY, FRONT 1
-
138DM-2474G-10-00 STAY, FRONT 2STAY, FRONT 2
-
1495807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
1590267-47187-00 RIVET, BLINDRIVET, BLIND
-
168DM-2477R-00-00 ARM 2ARM 2
-
1790387-083Y8-00 COLLARCOLLAR
-
1890202-12236-00 WASHER, PLATEWASHER, PLATE
-
1995707-08500-00 NUT, FLANGENUT, FLANGE
-
2095307-08700-00 NUTNUT
-
218DM-24760-00-00 SEAT LEVER ASSY.SEAT LEVER ASSY.
-
2297027-10014-00 BOLTBOLT
-
238DM-2474H-10-00 BRACKET, ASSIST GRIP 1BRACKET, ASSIST GRIP 1
-
248DM-2474J-10-00 BRACKET, ASSIST GRIP 2BRACKET, ASSIST GRIP 2
-
2592017-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2690201-10140-00 WASHER, PLATEWASHER, PLATE
-
2790387-10090-00 COLLARCOLLAR
-
2890387-145G7-00 COLLARCOLLAR
-
298CW-2479H-00-00 BODY, SEAT LOCKBODY, SEAT LOCK
-
308CW-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
318DM-2474A-00-00 ASSIST, GRIPASSIST, GRIP
-
3298907-06035-00 SCREW, BINDSCREW, BIND
-
3390176-06065-00 NUT, CROWNNUT, CROWN
-
348DM-2474B-10-00 ASSIST GRIP WARMER ASSY. 1ASSIST GRIP WARMER ASSY. 1
-
358DM-2474C-10-00 ASSIST GRIP WARMER ASSY. 2ASSIST GRIP WARMER ASSY. 2
-
3697707-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
378DM-24796-00-00 COVERCOVER
-
388DM-2475X-00-00 COVER,2COVER,2
-
3997707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
408DM-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
418DM-2476V-00-00 PROTECTOR,2PROTECTOR,2
-
4290267-48051-00 RIVET, BLINDRIVET, BLIND
-
4390201-051K1-00 WASHER, PLATEWASHER, PLATE
-
448DM-2477F-00-00 LEVER, SEATLEVER, SEAT
-
4597707-40008-00 SCREW, TAPPINGSCREW, TAPPING
-
468DM-82917-10-00 SWITCHSWITCH
-
478DM-85370-10-00 RESISTOR ASSY.RESISTOR ASSY.
-
4890154-06036-00 SCREW, BINDINGSCREW, BINDING
