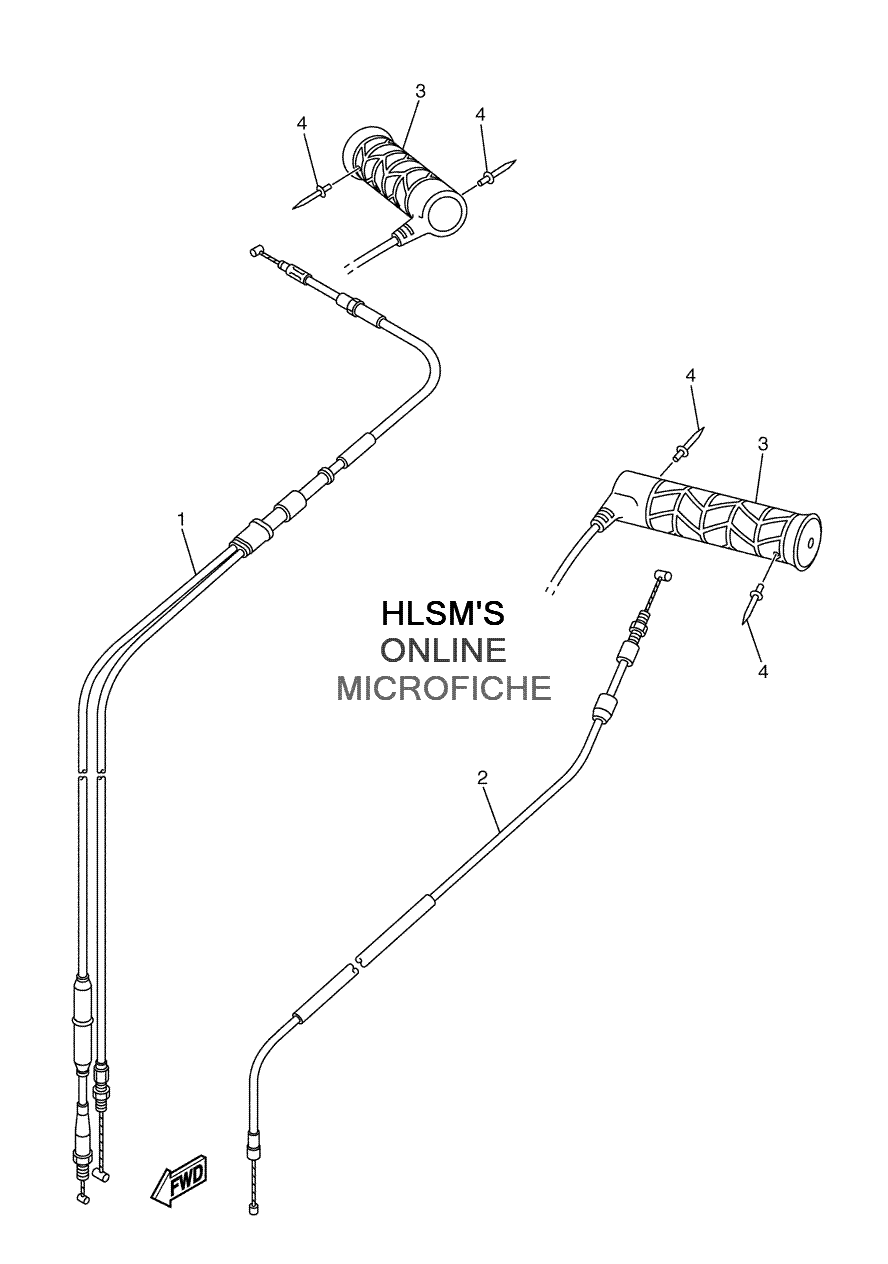

HANDLEBAR - CABLES AND GRIPS для Yamaha VENTURE 600 - 2004 года выпуска`
-
№АртикулНазвание
-
18FE-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28FE-26330-00-00 STARTER CABLE ASSY.STARTER CABLE ASSY.
-
38DM-26240-01-00 GRIP ASSY.GRIP ASSY.
-
490267-48014-00 RIVET, BLINDRIVET, BLIND
