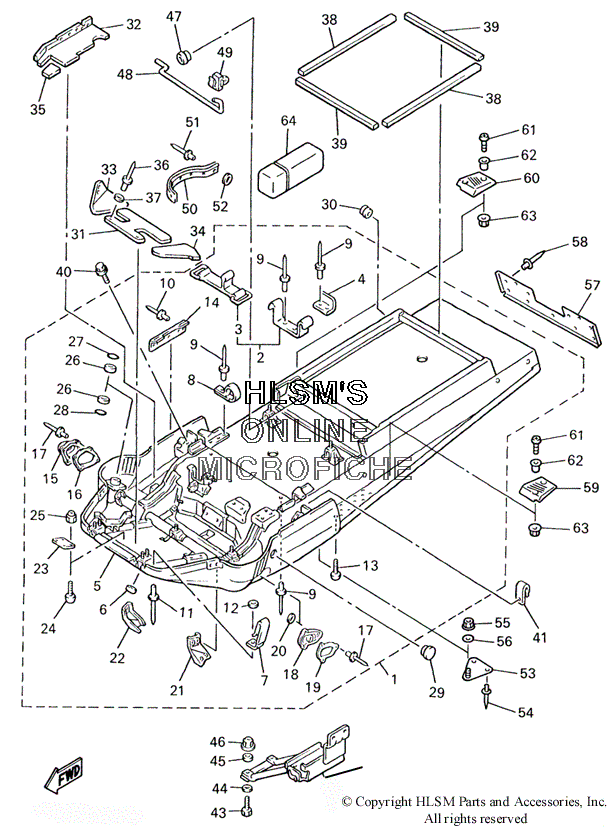

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VIKING 540 - 2000 года выпуска`
-
№АртикулНазвание
-
18AC-21910-10-00 FRAME COMPFRAME COMP
-
281E-21945-00-00 ...BRACKET, TOOL BOX FITTING...BRACKET, TOOL BOX FITTING
-
34J2-82131-01-00 ......BAND, BATTERY......BAND, BATTERY
-
483R-21955-00-00 ...BRACKET, TOOL BOX FITTING...BRACKET, TOOL BOX FITTING
-
58AC-21912-00-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
690387-081R2-00 ...COLLAR...COLLAR
-
790465-08368-00 ...CLAMP...CLAMP
-
890462-05059-00 ...CLAMP...CLAMP
-
990267-48060-00 ...RIVET, BLIND...RIVET, BLIND
-
1090267-48051-00 ...RIVET, BLIND...RIVET, BLIND
-
1190267-48141-00 ...RIVET, BLIND...RIVET, BLIND
-
1290201-04325-00 ...WASHER, PLATE...WASHER, PLATE
-
1398907-06016-00 ...SCREW, BIND...SCREW, BIND
-
148AT-77527-01-00 ...PLATE, BACK UP...PLATE, BACK UP
-
158AT-23818-00-00 ...COVER, STEERING...COVER, STEERING
-
168AT-77526-00-00 ...WASHER 2...WASHER 2
-
1790267-40029-00 ...RIVET, BLIND...RIVET, BLIND
-
188M6-2198F-00-00 ...COVER 1...COVER 1
-
198M6-21998-00-00 ...SPACER...SPACER
-
2090201-043H5-00 ...WASHER, PLATE...WASHER, PLATE
-
218AT-2194Y-00-00 ...BRACKET, FRONT GUARD 3...BRACKET, FRONT GUARD 3
-
228AT-2195Y-00-00 ...BRACKET, FRONT GUARD 4...BRACKET, FRONT GUARD 4
-
2389X-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
2498907-05014-00 ...SCREW, BIND...SCREW, BIND
-
2595707-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
2690384-36134-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2793102-36232-00 ...OIL SEAL...OIL SEAL
-
2893103-36117-00 ...OIL SEAL...OIL SEAL
-
2990338-44093-00 PLUGPLUG
-
3090480-15061-00 GROMMETGROMMET
-
318AT-77271-00-00 DAMPER, NOISE 1DAMPER, NOISE 1
-
328AC-77272-00-00 DAMPER, NOISE 2DAMPER, NOISE 2
-
338AT-77273-10-00 DAMPER, NOISE 3DAMPER, NOISE 3
-
348AT-77274-00-00 DAMPER, NOISE 4DAMPER, NOISE 4
-
358AT-77275-00-00 DAMPER, NOISE 5DAMPER, NOISE 5
-
3690267-48141-00 RIVET, BLINDRIVET, BLIND
-
3790201-04325-00 WASHER, PLATEWASHER, PLATE
-
3883R-7717E-00-00 TAPE 1TAPE 1
-
3983R-7717F-00-00 TAPE 2TAPE 2
-
4095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4190465-08125-00 CLAMPCLAMP
-
428AT-2199G-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
4397027-06025-00 BOLTBOLT
-
4490201-06778-00 WASHER, PLATEWASHER, PLATE
-
4590201-063A5-00 WASHER, PLATEWASHER, PLATE
-
4695707-06300-00 NUT, FLANGENUT, FLANGE
-
4790480-10348-00 GROMMETGROMMET
-
4885R-2471A-00-00 STAY, SEATSTAY, SEAT
-
4985R-2639F-00-00 HOLDER, 2HOLDER, 2
-
508AT-2196T-00-00 TRIM 1TRIM 1
-
5190267-40172-00 RIVET, BLIND 1RIVET, BLIND 1
-
5290201-042E0-00 WASHER, PLATE 1WASHER, PLATE 1
-
538AC-2198G-00-00 COVER 2COVER 2
-
5490267-47186-00 RIVET, BINDRIVET, BIND
-
5595707-06300-00 NUT, FLANGENUT, FLANGE
-
5690201-067A0-00 WASHER, PLATEWASHER, PLATE
-
578AC-21933-00-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
5890267-47186-00 RIVET, BINDRIVET, BIND
-
5988T-27431-10-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
6088T-27441-10-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
6198907-06025-00 SCREW, BINDSCREW, BIND
-
6290387-063E6-00 COLLARCOLLAR
-
6395707-06500-00 NUT, FLANGENUT, FLANGE
-
6485L-28100-00-00 TOOL KITTOOL KIT
