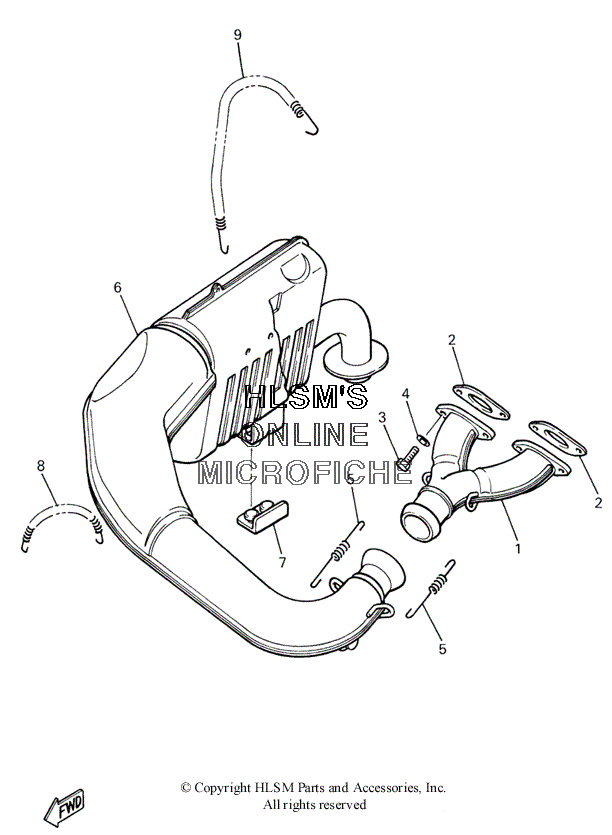

EXHAUST SYSTEM для Yamaha VIKING 540 - 2000 года выпуска
-
№АртикулНазвание
-
18K4-14610-00-00 EXHAUST PIPE ASSEMBLY 1EXHAUST PIPE ASSEMBLY 1
-
282M-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
397027-08020-00 BOLTBOLT
-
492907-08600-00 WASHER, PLATEWASHER, PLATE
-
590506-20272-00 SPRING, TENSIONSPRING, TENSION
-
683R-14710-02-00 MUFFLER ASSEMBLY 1MUFFLER ASSEMBLY 1
-
783R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
890507-16045-00 SPRING, TENSIONSPRING, TENSION
-
990507-16046-00 SPRING, TENSIONSPRING, TENSION
Все узлы модели:
- AIR INTAKE W/ INTAKE - REED VALVE
- AIR SHROUD - FAN
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH REPAIR KIT
- CLUTCH TUNE-UP KIT
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE GUARD W/ LUGGAGE BOX
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- • EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT ASSY
- SPEEDOMETER - TACH
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- TRACK DRIVE 3
- TRACK SUSPENSION 3
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
