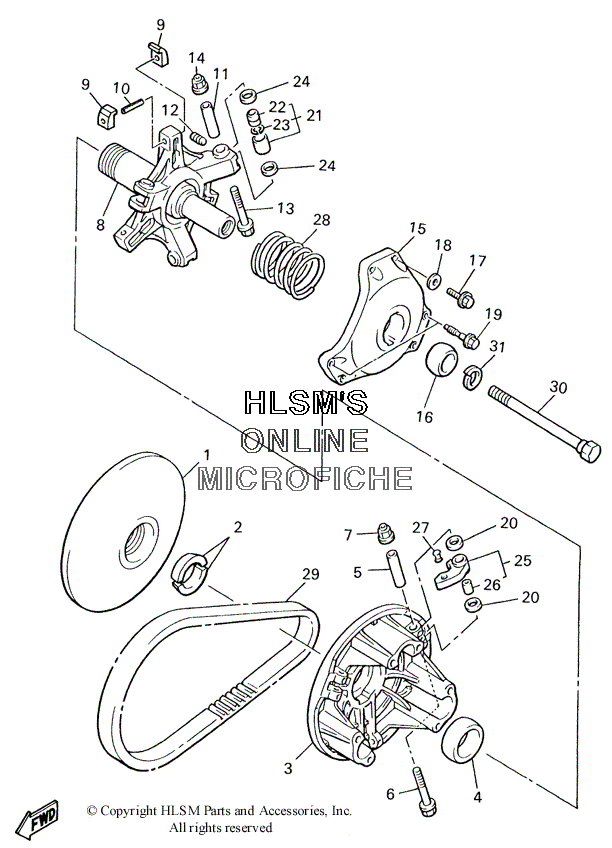

CLUTCH - DRIVE для Yamaha VIKING 540 - 2000 года выпуска
-
№АртикулНазвание
-
188R-17611-02-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 STOPPERSTOPPER
-
389F-17621-00-00 SHEAVE, PRIMARY SLIDINGSHEAVE, PRIMARY SLIDING
-
490389-41031-00 BUSHBUSH
-
590387-0501R-00 COLLARCOLLAR
-
690105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795607-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
88BW-17640-11-00 SPIDER COMPLETESPIDER COMPLETE
-
98BW-17653-00-00 SLIDERSLIDER
-
1091609-50032-00 PIN, SPRINGPIN, SPRING
-
1190387-0501R-00 COLLARCOLLAR
-
1290113-05053-00 BOLT, SETBOLT, SET
-
1390105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1495607-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1588R-17631-01-00 CAPCAP
-
1690389-28032-00 BUSHBUSH
-
1797017-06030-00 BOLTBOLT
-
1892907-06600-00 WASHER, PLATEWASHER, PLATE
-
1990109-066F4-00 BOLTBOLT
-
2090202-08204-00 WASHER, PLATEWASHER, PLATE
-
2188R-17624-01-00 ROLLER, COMPROLLER, COMP
-
2290386-08183-00 ...BUSH...BUSH
-
2393450-13133-00 ...CIRCLIP...CIRCLIP
-
2490202-08204-00 WASHER, PLATEWASHER, PLATE
-
258AT-17605-00-00 WEIGHT COMPWEIGHT COMP
-
2690386-08182-00 ...BUSH...BUSH
-
2790261-06017-00 RIVET, COUNTERSUNK (ST11.3MM) (STD)RIVET, COUNTERSUNK (ST11.3MM) (STD)
-
2790261-06019-00 RIVET, COUNTERSUNK (ST13.9MM) (STD)RIVET, COUNTERSUNK (ST13.9MM) (STD)
-
2890501-481J1-00 SPRING, COMPRESSION (STD) (SL-BL-SL)SPRING, COMPRESSION (STD) (SL-BL-SL)
-
2890501-556G6-00 SPRING, COMPRESSION (OPT) (BLUE)SPRING, COMPRESSION (OPT) (BLUE)
-
2890501-581J7-00 SPRING, COMPRESSION (OPT) (YELLOW)SPRING, COMPRESSION (OPT) (YELLOW)
-
2987X-17641-00-00 V-BELTV-BELT
-
308V0-17647-00-00 BOLTBOLT
-
3192907-16100-00 WASHERWASHER
