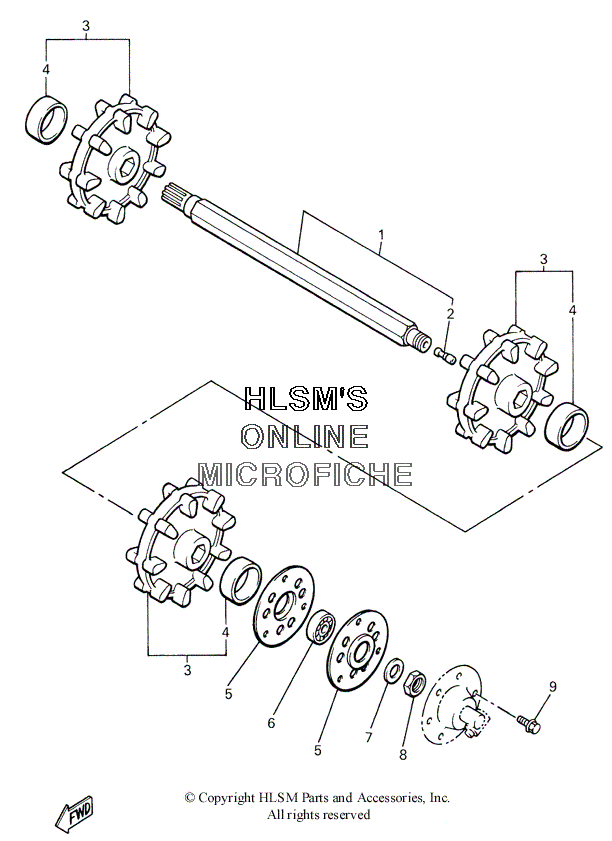

DRIVE TRAIN ASSEMBLY для Yamaha VIKING 540 - 2000 года выпуска
-
№АртикулНазвание
-
183R-W4751-00-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
383R-W4753-01-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
490387-514Y2-00 ...COLLAR...COLLAR
-
583R-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
693306-00507-00 BEARING (B6005)BEARING (B6005)
-
790208-25045-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
890170-25367-00 NUTNUT
-
995827-08014-00 BOLT, FLANGEBOLT, FLANGE
