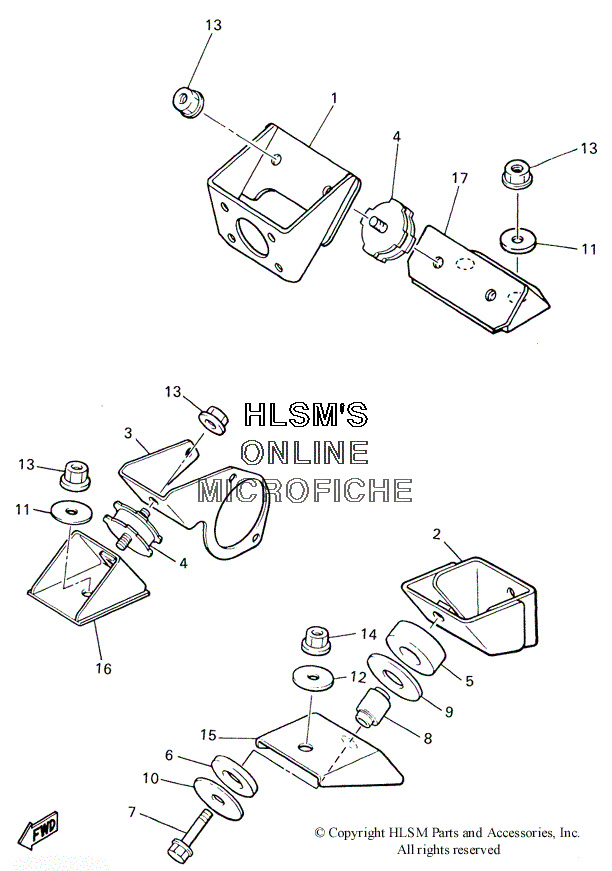

ENGINE MOUNTING для Yamaha VIKING 540 - 2000 года выпуска`
-
№АртикулНазвание
-
18H8-21411-01-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
283R-21419-00-00 BRACKET, ENGINE 2BRACKET, ENGINE 2
-
38H8-21429-01-00 BRACKET, ENGINE 3BRACKET, ENGINE 3
-
48N7-21486-00-00 DAMPER 2DAMPER 2
-
58V9-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
68V9-21486-00-00 DAMPER 2DAMPER 2
-
795817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
890380-10129-00 BUSH, SOLIDBUSH, SOLID
-
990201-257G7-00 WASHER, PLATEWASHER, PLATE
-
1090201-107G8-00 WASHER, PLATEWASHER, PLATE
-
1190201-10321-00 WASHER, PLATEWASHER, PLATE
-
1290201-12317-00 WASHER, PLATEWASHER, PLATE
-
1395707-10500-00 NUT, FLANGENUT, FLANGE
-
1495707-12500-00 NUT, FLANGENUT, FLANGE
-
158AT-21417-00-00 BRACKET, FRONT LOWER 1BRACKET, FRONT LOWER 1
-
168H8-21418-01-00 BRACKET, FRONT LOWER 2BRACKET, FRONT LOWER 2
-
178H8-21427-00-00 BRACKET, REAR LOWER 1BRACKET, REAR LOWER 1
