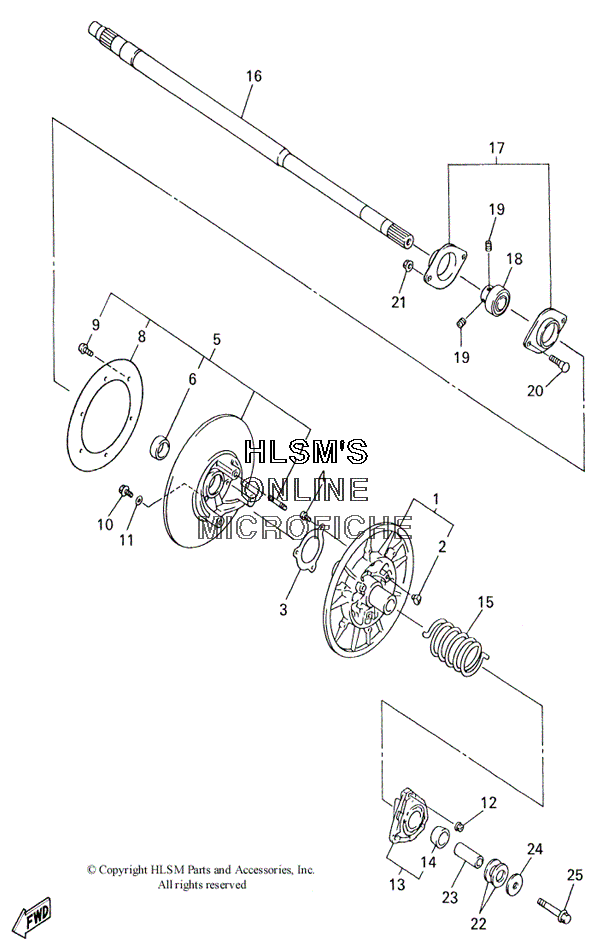

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha PHAZER 500 ELECTRIC START - 2000 года выпуска`
-
№АртикулНазвание
-
18CR-17660-20-00 SECONDARY FIXED SHEAVE COMPSECONDARY FIXED SHEAVE COMP
-
28AV-17688-10-00 SHOE, RAMPSHOE, RAMP
-
38BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
490154-06062-00 SCREW, BINDINGSCREW, BINDING
-
58BU-17670-10-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
690384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
795617-08630-00 ...BOLT, STUD...BOLT, STUD
-
88CM-17675-00-00 ...PLATE 2...PLATE 2
-
990150-05040-00 ...SCREW, ROUND HEAD...SCREW, ROUND HEAD
-
1090105-06734-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190201-06037-00 WASHER, PLATE (T=1.0) (UR UN)WASHER, PLATE (T=1.0) (UR UN)
-
1190201-061H1-00 WASHER, PLATE (T=0.5) (UR UN)WASHER, PLATE (T=0.5) (UR UN)
-
1290179-08655-00 NUTNUT
-
138BV-17604-31-00 SEAT SPRING SETSEAT SPRING SET
-
1490384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1590508-536A9-00 SPRING, TORSIONSPRING, TORSION
-
168CR-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
178CR-47631-01-00 HOUSING, BEARINGHOUSING, BEARING
-
1893399-99943-00 BEARINGBEARING
-
1990113-06064-00 BOLT, SETBOLT, SET
-
2090109-083G2-00 BOLTBOLT
-
2195707-08500-00 NUT, FLANGENUT, FLANGE
-
2290201-222F0-00 WASHER, PLATE (T0.5) (UR UN)WASHER, PLATE (T0.5) (UR UN)
-
2290201-225A4-00 WASHER, PLATE (T1.0) (UR UN)WASHER, PLATE (T1.0) (UR UN)
-
2390387-1407L-00 COLLARCOLLAR
-
2490201-141A3-00 WASHER, PLATEWASHER, PLATE
-
2590105-14766-00 BOLT, WASHER BASEDBOLT, WASHER BASED
