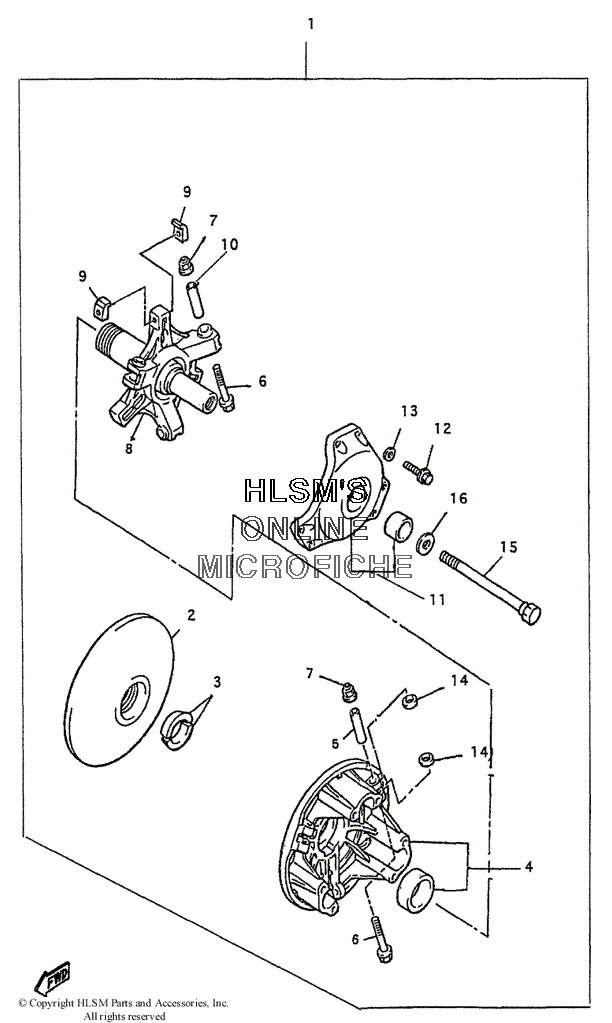

CLUTCH - REPAIR KIT (OPTION) для Yamaha PHAZER 500 ELECTRIC START - 2000 года выпуска`
-
№АртикулНазвание
-
18CJ-17601-09-00 CLUTCH REPAIR KIT (AP)CLUTCH REPAIR KIT (AP)
-
28CR-17611-01-00 ...SHEAVE, PRIMARY FIXED...SHEAVE, PRIMARY FIXED
-
38V0-17639-00-00 ...STOPPER...STOPPER
-
48BV-17620-03-00 ...PRIMARY SLIDING SHEAVE COMP...PRIMARY SLIDING SHEAVE COMP
-
590387-0514T-00 ...COLLAR...COLLAR
-
690105-05644-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
795607-05200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
88CA-17640-12-00 ...SPIDER COMPLETE...SPIDER COMPLETE
-
98BW-17653-00-00 ...SLIDER...SLIDER
-
1090387-0514U-00 ...COLLAR...COLLAR
-
118BV-17630-10-00 ...PRIMARY SHEAVE CAP COMP...PRIMARY SHEAVE CAP COMP
-
1297017-06030-00 ...BOLT...BOLT
-
1392907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1490202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
158V0-17647-00-00 ...BOLT...BOLT
-
1692907-16100-00 ...WASHER...WASHER
