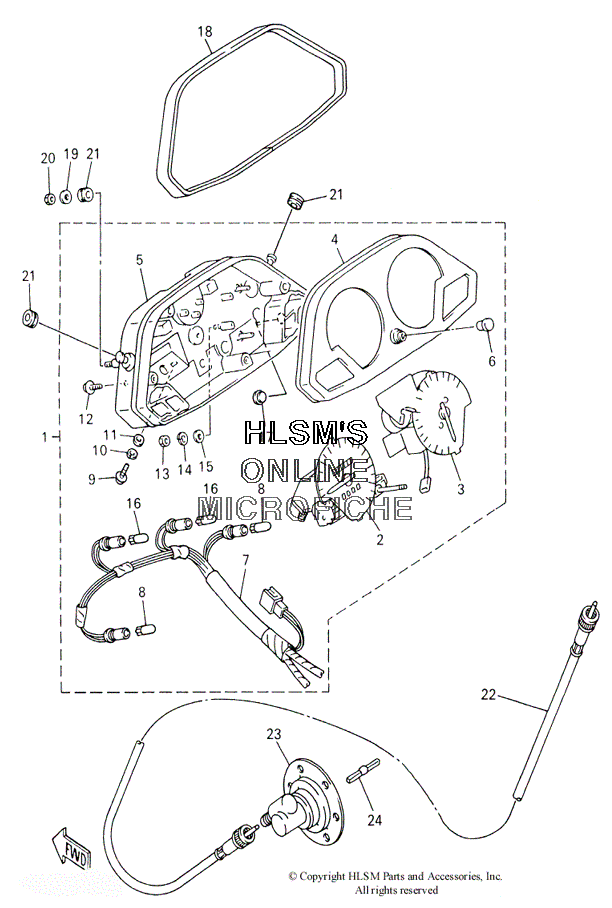

ELECTRICAL - INSTRUMENTS для Yamaha PHAZER 500 ELECTRIC START - 2000 года выпуска`
-
№АртикулНазвание
-
18DX-83500-40-00 SPEEDOMETER ASSEMBLY (MILE/H)SPEEDOMETER ASSEMBLY (MILE/H)
-
28CR-83580-40-00 ...SPEEDOMETER ASSEMBLY (MILE/H)...SPEEDOMETER ASSEMBLY (MILE/H)
-
38CR-83540-40-00 ...TACHOMETER ASSEMBLY...TACHOMETER ASSEMBLY
-
48DX-83559-40-00 ...COVER, METER...COVER, METER
-
58DJ-8353H-40-00 ...CASE, UNDER...CASE, UNDER
-
629L-83578-00-00 ...KNOB, TRIP METER...KNOB, TRIP METER
-
78DJ-83509-40-00 ...SOCKET CORD ASSEMBLY...SOCKET CORD ASSEMBLY
-
84R0-83517-00-00 ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
998517-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1192907-04600-00 ...WASHER...WASHER
-
1297707-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1395307-04600-00 ...NUT...NUT
-
1492907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1592907-04600-00 ...WASHER...WASHER
-
161YT-83517-00-00 ...BULB (12V-1.7W, T10)...BULB (12V-1.7W, T10)
-
174BE-8352K-00-00 ...PLUG, BLIND...PLUG, BLIND
-
188CR-77225-00-00 TRIM 5TRIM 5
-
1990201-06380-00 WASHER, PLATEWASHER, PLATE
-
2095307-06600-00 NUTNUT
-
215J0-83513-00-00 DAMPERDAMPER
-
228CR-83550-00-00 SPEEDOMETER CABLE ASSEMBLYSPEEDOMETER CABLE ASSEMBLY
-
238DP-47700-00-00 METER GEAR HOUSING COMPMETER GEAR HOUSING COMP
-
248K4-47715-00-00 JOINTJOINT
