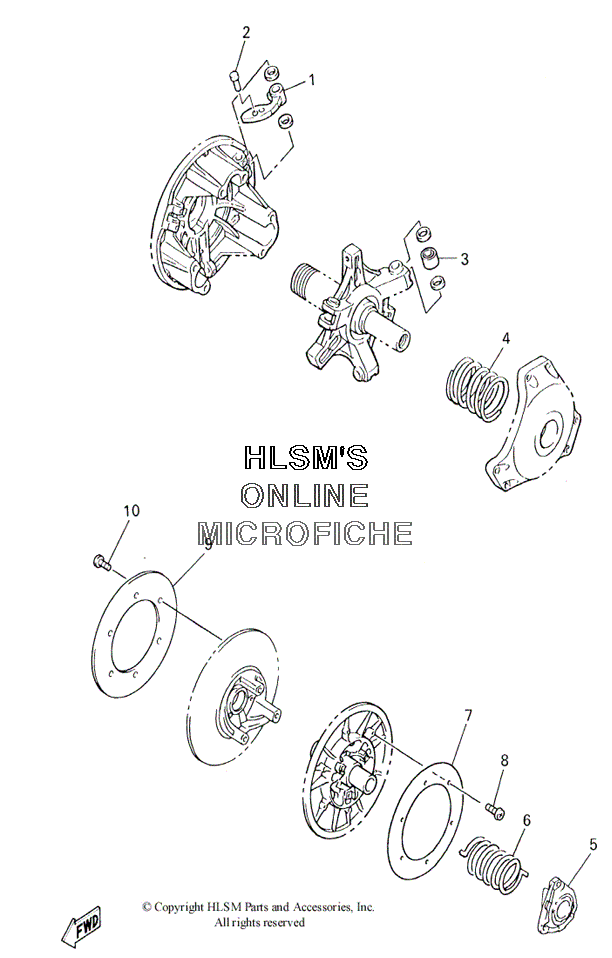

CLUTCH - WEIGHTS AND SPRINGS (OPTION) (DRIVE SETTING 1) для Yamaha PHAZER 500 ELECTRIC START - 2000 года выпуска
-
№АртикулНазвание
-
18CH-17605-10-00 WEIGHT COMP (UR)WEIGHT COMP (UR)
-
18CR-17605-10-00 WEIGHT COMP (UR)WEIGHT COMP (UR)
-
18DF-17605-10-00 WEIGHT COMP (UR)WEIGHT COMP (UR)
-
18DG-17605-00-00 WEIGHT COMP (UR)WEIGHT COMP (UR)
-
18DJ-17605-00-00 WEIGHT COMP (UR)WEIGHT COMP (UR)
-
18DN-17605-10-00 WEIGHT COMP (UR)WEIGHT COMP (UR)
-
290261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (UR)RIVET, COUNTERSUNK (ST10.3MM) (UR)
-
290261-06017-00 RIVET, COUNTERSUNK (ST11.3MM) (UR)RIVET, COUNTERSUNK (ST11.3MM) (UR)
-
290261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (UR)RIVET, COUNTERSUNK (ST13.3MM) (UR)
-
290261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (UR)RIVET, COUNTERSUNK (AL10.3MM) (UR)
-
290261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (UR)RIVET, COUNTERSUNK (ST17.2MM) (UR)
-
290261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (UR)RIVET, COUNTERSUNK (ST13.9MM) (UR)
-
38CR-17624-00-00 ROLLER, COMP (UR)ROLLER, COMP (UR)
-
38CR-17624-10-00 ROLLER, COMP (UR)ROLLER, COMP (UR)
-
38CR-17624-20-00 ROLLER COMP (UR)ROLLER COMP (UR)
-
38CR-17624-30-00 ROLLER, COMP (UR)ROLLER, COMP (UR)
-
490501-481J1-00 SPRING, COMPRESSION (UR) (SL-BL-SL)SPRING, COMPRESSION (UR) (SL-BL-SL)
-
490501-487G8-00 SPRING, COMPRESSION (UR) (GOLD)SPRING, COMPRESSION (UR) (GOLD)
-
490501-507G2-00 SPRING, COMPRESSION (UR) (GO-BL-GO)SPRING, COMPRESSION (UR) (GO-BL-GO)
-
490501-507G7-00 SPRING, COMPRESSION (UR) (R-GR-R)SPRING, COMPRESSION (UR) (R-GR-R)
-
490501-521J6-00 SPRING, COMPRESSION (UR) (GO-P-GO)SPRING, COMPRESSION (UR) (GO-P-GO)
-
490501-524G4-00 SPRING, COMPRESSION (UR) (R-Y-R)SPRING, COMPRESSION (UR) (R-Y-R)
-
490501-524G5-00 SPRING, COMPRESSION (UR) (GO-Y-GO)SPRING, COMPRESSION (UR) (GO-Y-GO)
-
490501-525J8-00 SPRING, COMPRESSION (UR) (BL-P-BL)SPRING, COMPRESSION (UR) (BL-P-BL)
-
490501-526G4-00 SPRING, COMPRESSION (UR) (BL-GO-BL)SPRING, COMPRESSION (UR) (BL-GO-BL)
-
490501-526J9-00 SPRING, COMPRESSION (UR) (R-P-R)SPRING, COMPRESSION (UR) (R-P-R)
-
490501-527G1-00 SPRING, COMPRESSION (UR) (R-BL-R)SPRING, COMPRESSION (UR) (R-BL-R)
-
490501-550J8-00 SPRING, COMPRESSION (UR) (WH-P-WH)SPRING, COMPRESSION (UR) (WH-P-WH)
-
490501-553G0-00 SPRING, COMPRESSION (UR) (BL-Y-BL)SPRING, COMPRESSION (UR) (BL-Y-BL)
-
490501-553G6-00 SPRING, COMPRESSION (UR) (WH-Y-WH)SPRING, COMPRESSION (UR) (WH-Y-WH)
-
490501-555J9-00 SPRING, COMPRESSION (UR) (WH-SL-WH)SPRING, COMPRESSION (UR) (WH-SL-WH)
-
490501-556G5-00 SPRING, COMPRESSION (UR) (WH-BL-WH)SPRING, COMPRESSION (UR) (WH-BL-WH)
-
490501-556G6-00 SPRING, COMPRESSION (UR) (BLUE)SPRING, COMPRESSION (UR) (BLUE)
-
490501-556G7-00 SPRING, COMPRESSION (UR) (Y-BL-Y)SPRING, COMPRESSION (UR) (Y-BL-Y)
-
490501-557G5-00 SPRING, COMPRESSION (UR) (Y-GO-Y)SPRING, COMPRESSION (UR) (Y-GO-Y)
-
490501-557G6-00 SPRING, COMPRESSION (UR) (WH-GO-WH)SPRING, COMPRESSION (UR) (WH-GO-WH)
-
490501-581J7-00 SPRING, COMPRESSION (UR) (YELLOW)SPRING, COMPRESSION (UR) (YELLOW)
-
490501-582J1-00 SPRING, COMPRESSION (UR) (Y-P-Y)SPRING, COMPRESSION (UR) (Y-P-Y)
-
490501-585J3-00 SPRING, COMPRESSION (UR) (GR-P-GR)SPRING, COMPRESSION (UR) (GR-P-GR)
-
490501-586J0-00 SPRING, COMPRESSION (UR) (Y-SL-Y)SPRING, COMPRESSION (UR) (Y-SL-Y)
-
490501-602J0-00 SPRING, COMPRESSION (UR) (PINK)SPRING, COMPRESSION (UR) (PINK)
-
490501-604G0-00 SPRING, COMPRESSION (UR) (P-Y-P)SPRING, COMPRESSION (UR) (P-Y-P)
-
490501-605G7-00 SPRING, COMPRESSION (UR) (GR-Y-GR)SPRING, COMPRESSION (UR) (GR-Y-GR)
-
490501-605J5-00 SPRING, COMPRESSION (UR) (OR-P-OR)SPRING, COMPRESSION (UR) (OR-P-OR)
-
490501-606G9-00 SPRING, COMPRESSION (UR) (P-BL-P)SPRING, COMPRESSION (UR) (P-BL-P)
-
490501-607G0-00 SPRING, COMPRESSION (UR) (GR-BL-GR)SPRING, COMPRESSION (UR) (GR-BL-GR)
-
490501-607G3-00 SPRING, COMPRESSION (UR) (P-GO-P)SPRING, COMPRESSION (UR) (P-GO-P)
-
490501-607G4-00 SPRING, COMPRESSION (UR) (GR-GO-GR)SPRING, COMPRESSION (UR) (GR-GO-GR)
-
58BV-17604-11-00 SEAT SPRING SET (UR)SEAT SPRING SET (UR)
-
58BV-17604-31-00 SEAT SPRING SET (UR)SEAT SPRING SET (UR)
-
58BV-17604-51-00 SEAT SPRING SET (UR)SEAT SPRING SET (UR)
-
58BV-17604-71-00 SEAT SPRING SET (UR)SEAT SPRING SET (UR)
-
58BV-17604-91-00 SEAT SPRING SET (UR)SEAT SPRING SET (UR)
-
690508-500B1-00 SPRING, TORSION (UR)SPRING, TORSION (UR)
-
690508-536A9-00 SPRING, TORSION (UR)SPRING, TORSION (UR)
-
690508-556A2-00 SPRING, TORSION (UR)SPRING, TORSION (UR)
-
690508-556A7-00 SPRING, TORSION (UR)SPRING, TORSION (UR)
-
78CM-17665-00-00 PLATE 1 (UR)PLATE 1 (UR)
-
890150-05040-00 SCREW, ROUND HEAD (UR)SCREW, ROUND HEAD (UR)
-
98CM-17675-00-00 PLATE 2 (UR)PLATE 2 (UR)
-
1090150-05040-00 SCREW, ROUND HEAD (UR)SCREW, ROUND HEAD (UR)
Все узлы модели:
- AIR SHROUD W/ FAN
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- • CLUTCH - WEIGHTS AND SPRINGS (OPTION) (DRIVE SETTING 1)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE GUARD W/ LUGGAGE BOX
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE KIT (OPTION)
- SEAT ASSY
- SEAT ASSY 1 (OPTION)
- SEAT ASSY 2 (OPTION)
- SEAT ASSY 3 (OPTION)
- STARTER - ELECTRICAL STARTER ASSY (OPTION)
- STARTER - ELECTRICAL STARTER KIT W/ BATTERY AND STARTER (OPTION)
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
