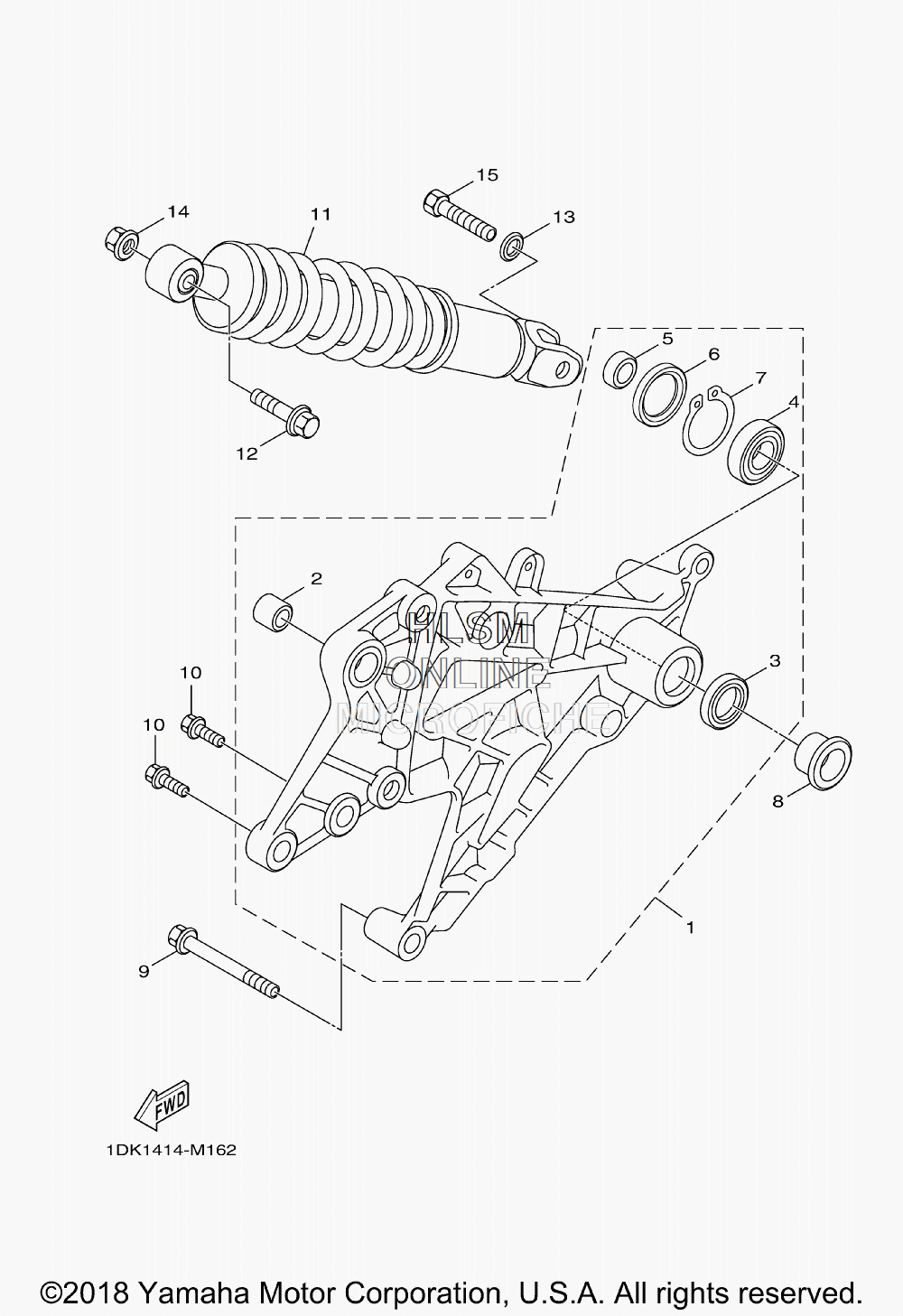

SUSPENSION - REAR ARM W/ SHOCK для Yamaha SMAX - 2019 года выпуска`
-
№АртикулНазвание
-
11DK-F2100-00-00 REAR ARM ASSYREAR ARM ASSY
-
252S-F1488-00-00 ...DAMPER...DAMPER
-
393109-28811-00 ...OIL SEAL...OIL SEAL
-
493306-303YG-00 ...BEARING...BEARING
-
590387-17807-00 ...COLLAR...COLLAR
-
693106-28811-00 ...OIL SEAL...OIL SEAL
-
799009-47500-00 ...CIRCLIP...CIRCLIP
-
890387-17808-00 COLLARCOLLAR
-
995812-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1095812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
112SW-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1290105-10860-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-11803-00 WASHER, PLATEWASHER, PLATE
-
1490179-10813-00 NUTNUT
-
1590101-10823-00 BOLTBOLT
