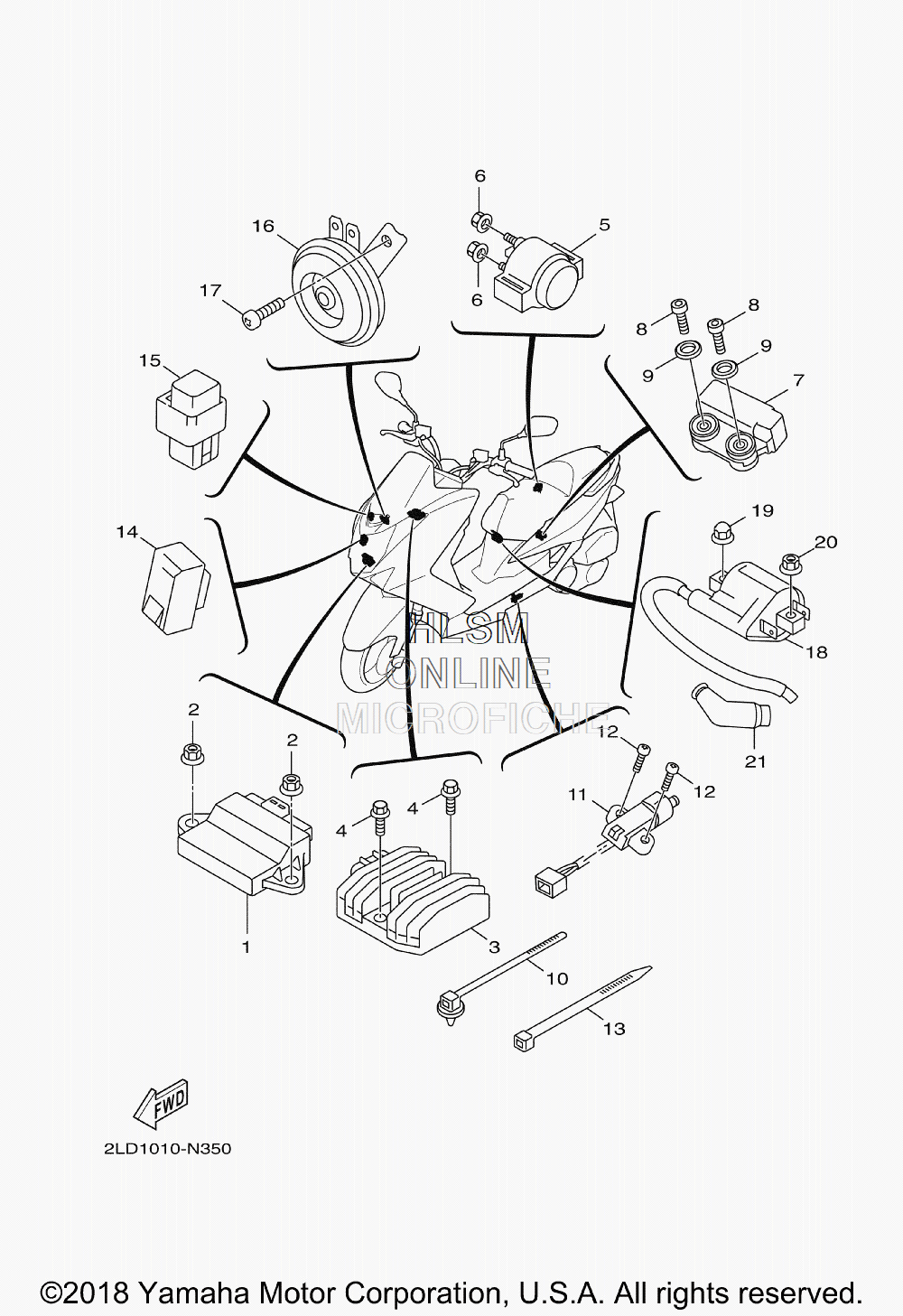

ELECTRICAL для Yamaha SMAX - 2019 года выпуска`
-
№АртикулНазвание
-
12SW-H591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
352S-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
51CJ-H1940-10-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
695302-06700-00 NUT, HEXAGONNUT, HEXAGON
-
732P-H2576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
891312-04025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990201-04027-00 WASHER, PLATEWASHER, PLATE
-
1090464-45803-00 CLAMPCLAMP
-
113LD-82566-40-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1290157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1390464-23003-00 CLAMPCLAMP
-
1429U-81950-93-00 RELAY ASSY (ACA12115-1)RELAY ASSY (ACA12115-1)
-
1525G-81950-01-00 RELAY ASSY (25G-01)RELAY ASSY (25G-01)
-
165FA-H3371-20-00 HORNHORN
-
1795027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1852S-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1990176-06011-00 NUT, CROWNNUT, CROWN
-
2095702-06500-00 NUT, FLANGENUT, FLANGE
-
2152S-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
