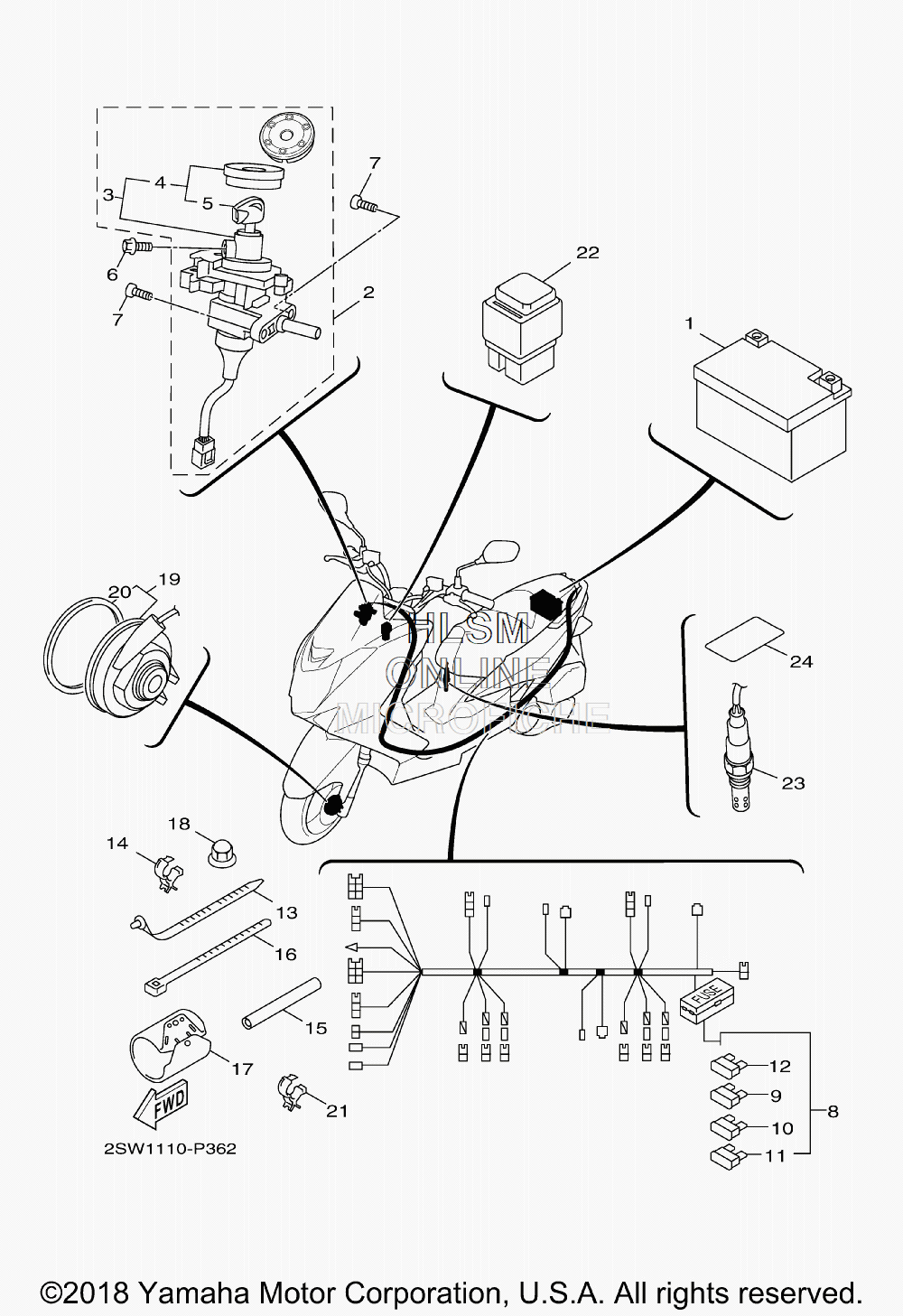

ELECTRICAL 2 для Yamaha SMAX - 2019 года выпуска`
-
№АртикулНазвание
-
152S-H2100-01-00 BATTERY ASSY (GT7B-4)BATTERY ASSY (GT7B-4)
-
22LD-WH203-00-00 KEY SETKEY SET
-
32LD-H2501-00-00 ...MAIN SWITCH STEERING LOCK...MAIN SWITCH STEERING LOCK
-
44P9-WH250-41-A0 ......SHUTTER & BLANK KEY......SHUTTER & BLANK KEY
-
44P9-WH250-41-C0 ......SHUTTER & BLANK KEY......SHUTTER & BLANK KEY
-
54P9-H2511-**-** ..........KEY, MAIN SWITCH..........KEY, MAIN SWITCH
-
690119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790155-06803-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
82SW-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
105MH-H2151-00-00 ...FUSE (20A)...FUSE (20A)
-
115ML-H2151-20-00 ...FUSE (7.5A)...FUSE (7.5A)
-
121P5-H2151-00-00 ...FUSE(10A)...FUSE(10A)
-
1390464-30802-00 CLAMPCLAMP
-
1490464-30801-00 CLAMPCLAMP
-
151CF-F117G-00-00 PROTECTORPROTECTOR
-
1690464-60800-00 CLAMPCLAMP
-
1752S-H252U-00-00 COVERCOVER
-
1890176-06055-00 NUT, CROWNNUT, CROWN
-
192LD-H3755-11-00 SENSOR, SPEEDSENSOR, SPEED
-
2093102-44800-00 OIL SEALOIL SEAL
-
2190464-23003-00 CLAMPCLAMP
-
223GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
232SW-H592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
2428B-E4452-00-00 SEALSEAL
