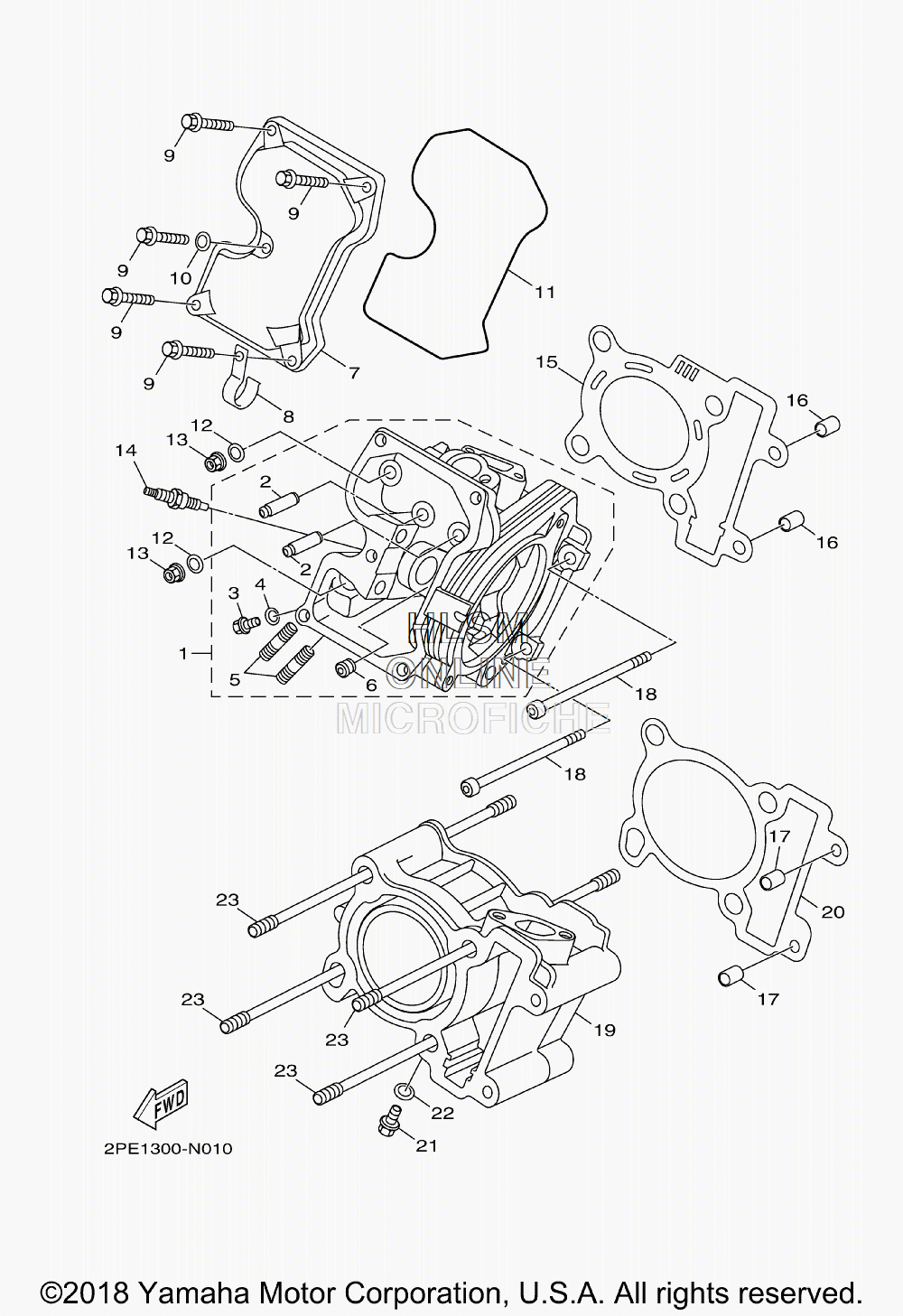

CYLINDER W/ HEAD ASSY. для Yamaha SMAX - 2019 года выпуска`
-
№АртикулНазвание
-
11DK-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25YP-E1133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
395022-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
490430-06014-00 ...GASKET...GASKET
-
590116-08806-00 ...BOLT, STUD...BOLT, STUD
-
690340-12813-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
752S-E1191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
890462-12801-00 CLAMPCLAMP
-
995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1090430-06014-00 GASKETGASKET
-
1152S-E1193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1290201-08883-00 WASHER, PLATEWASHER, PLATE
-
1390179-08518-00 NUTNUT
-
1494700-00415-00 PLUG, SPARK (NGK CPR8EA)PLUG, SPARK (NGK CPR8EA)
-
1552S-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1691810-14807-00 PIN, DOWELPIN, DOWEL
-
1791810-14807-00 PIN, DOWELPIN, DOWEL
-
1891312-06100-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1952S-E1311-00-00 CYLINDER 1CYLINDER 1
-
2052S-E1351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
2195022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06014-00 GASKETGASKET
-
2352S-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
