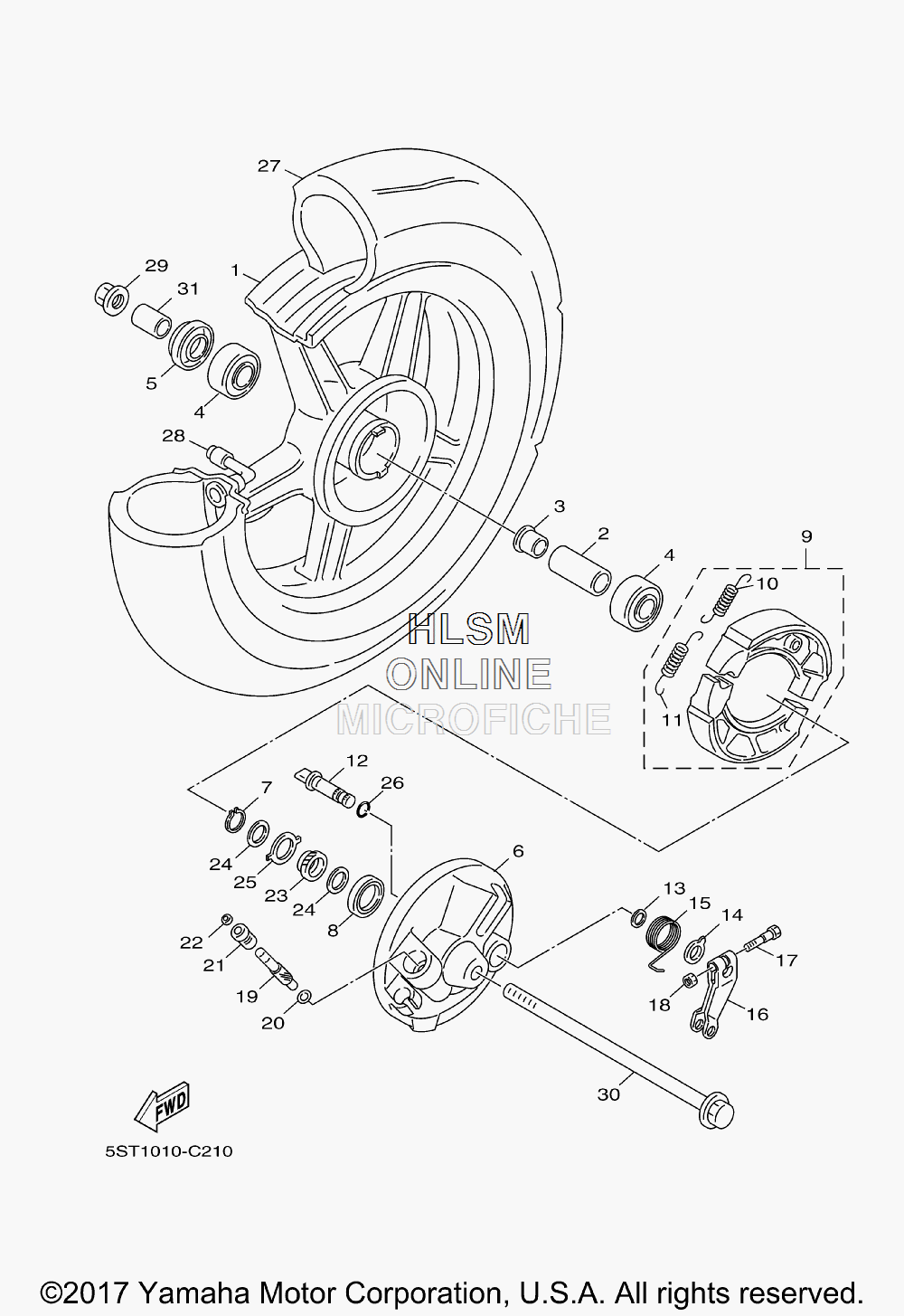

WHEEL - FRONT для Yamaha VINO CLASSIC - 2018 года выпуска`
-
№АртикулНазвание
-
15ST-F5168-00-35 CAST WHEEL, FRONT (SL - SILVER)CAST WHEEL, FRONT (SL - SILVER)
-
290560-10103-00 SPACERSPACER
-
320A-F5115-00-00 FLANGE, SPACER 1FLANGE, SPACER 1
-
493306-300Y4-00 BEARINGBEARING
-
593106-20808-00 OIL SEALOIL SEAL
-
65ST-F5121-00-35 PLATE, BRAKE SHOE (SL - SILVER)PLATE, BRAKE SHOE (SL - SILVER)
-
799009-20400-00 CIRCLIPCIRCLIP
-
893102-44833-00 OIL SEALOIL SEAL
-
95SW-WF53E-10-00 BRAKE SHOE KITBRAKE SHOE KIT
-
1090506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
1190506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
125ST-F5151-00-00 CAMSHAFTCAMSHAFT
-
1393109-14021-00 OIL SEALOIL SEAL
-
145SU-F533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
1590508-28800-00 SPRING, TORSIONSPRING, TORSION
-
165ST-F5155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1790101-06819-00 BOLTBOLT
-
189530L-06600-00 NUTNUT
-
195ST-F5138-00-00 GEAR, METERGEAR, METER
-
2090201-07076-00 WASHER, PLATEWASHER, PLATE
-
213N2-F5136-00-00 BUSHBUSH
-
2293104-07803-00 OIL SEALOIL SEAL
-
235ST-F5135-00-00 GEAR, DRIVEGEAR, DRIVE
-
2490201-20269-00 WASHER, PLATEWASHER, PLATE
-
254X6-F5149-00-00 CLUTCH, METERCLUTCH, METER
-
2693210-14805-00 O-RINGO-RING
-
2794109-10807-00 TIRE (90/90-10 41J C922)TIRE (90/90-10 41J C922)
-
2893900-00802-00 VALVE, RIMVALVE, RIM
-
2990185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
303XG-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
3190387-10806-00 COLLARCOLLAR
