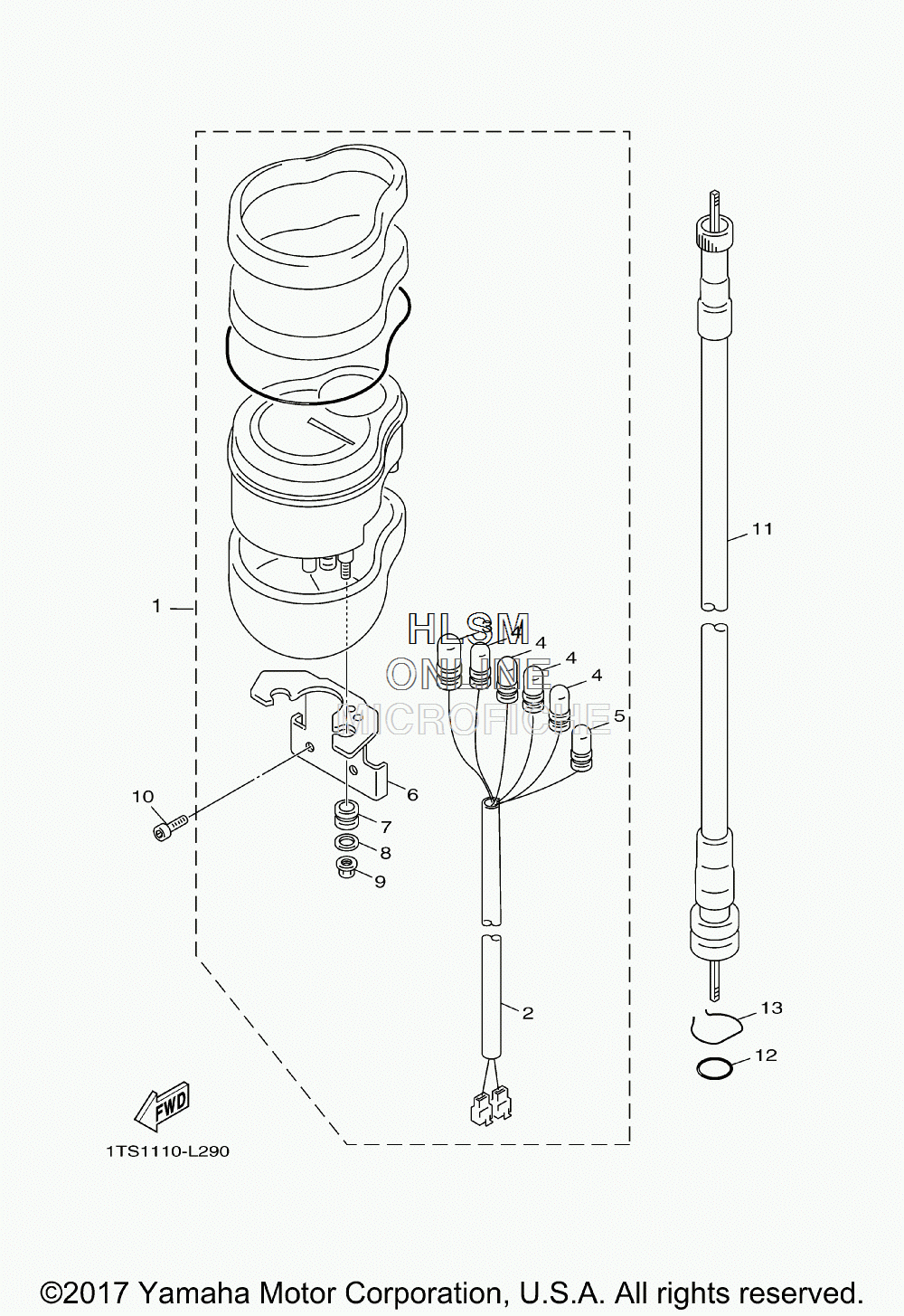

INSTRUMENT PANEL для Yamaha VINO CLASSIC - 2018 года выпуска`
-
№АртикулНазвание
-
11TS-H3510-60-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
21TS-H3509-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
33GF-H3517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
45JS-H3517-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
54CW-H3517-00-00 ...BULB (14V-3W T6.5)...BULB (14V-3W T6.5)
-
65ST-H3519-00-00 ...BRACKET, METER...BRACKET, METER
-
75ST-H3513-00-00 ...DAMPER...DAMPER
-
85ST-H3663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
95ST-H354P-00-00 ...NUT...NUT
-
1091317-06012-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
115ST-H3550-03-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
1293210-14805-00 O-RINGO-RING
-
134X6-F5137-00-00 RING, STOPRING, STOP
