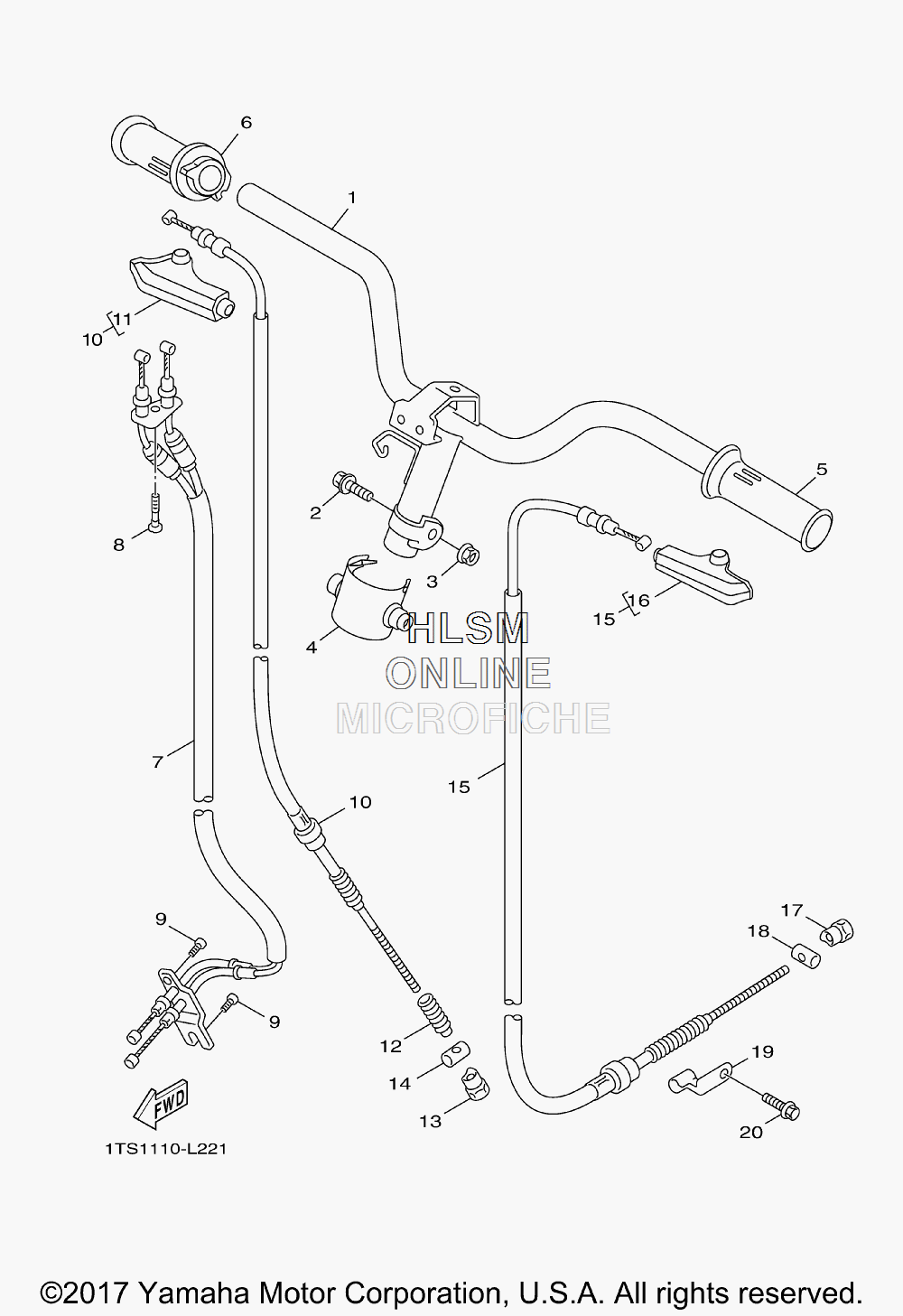

HANDLEBAR W/ CABLES - MIRRORS для Yamaha VINO CLASSIC - 2018 года выпуска`
-
№АртикулНазвание
-
15ST-F6110-00-00 HANDLE COMP.HANDLE COMP.
-
290105-10864-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
41TS-F6124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
537B-F6241-01-00 GRIPGRIP
-
637B-F6240-01-00 GRIP ASSYGRIP ASSY
-
71TS-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1013P-F6341-30-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
113YJ-2637A-00-00 ...COVER, HANDLE LEVER 2...COVER, HANDLE LEVER 2
-
1210B-F6342-00-00 ...BOOT, CABLE...BOOT, CABLE
-
1390179-06411-00 NUTNUT
-
1490249-12008-00 PINPIN
-
1513P-F6351-10-00 CABLE, BRAKECABLE, BRAKE
-
163YJ-26372-00-00 ...COVER, HANDLE LEVER 1...COVER, HANDLE LEVER 1
-
1790179-06411-00 NUTNUT
-
1890249-12008-00 PINPIN
-
195ST-F639F-00-00 HOLDER 2HOLDER 2
-
2095807-06016-00 BOLT, FLANGEBOLT, FLANGE
