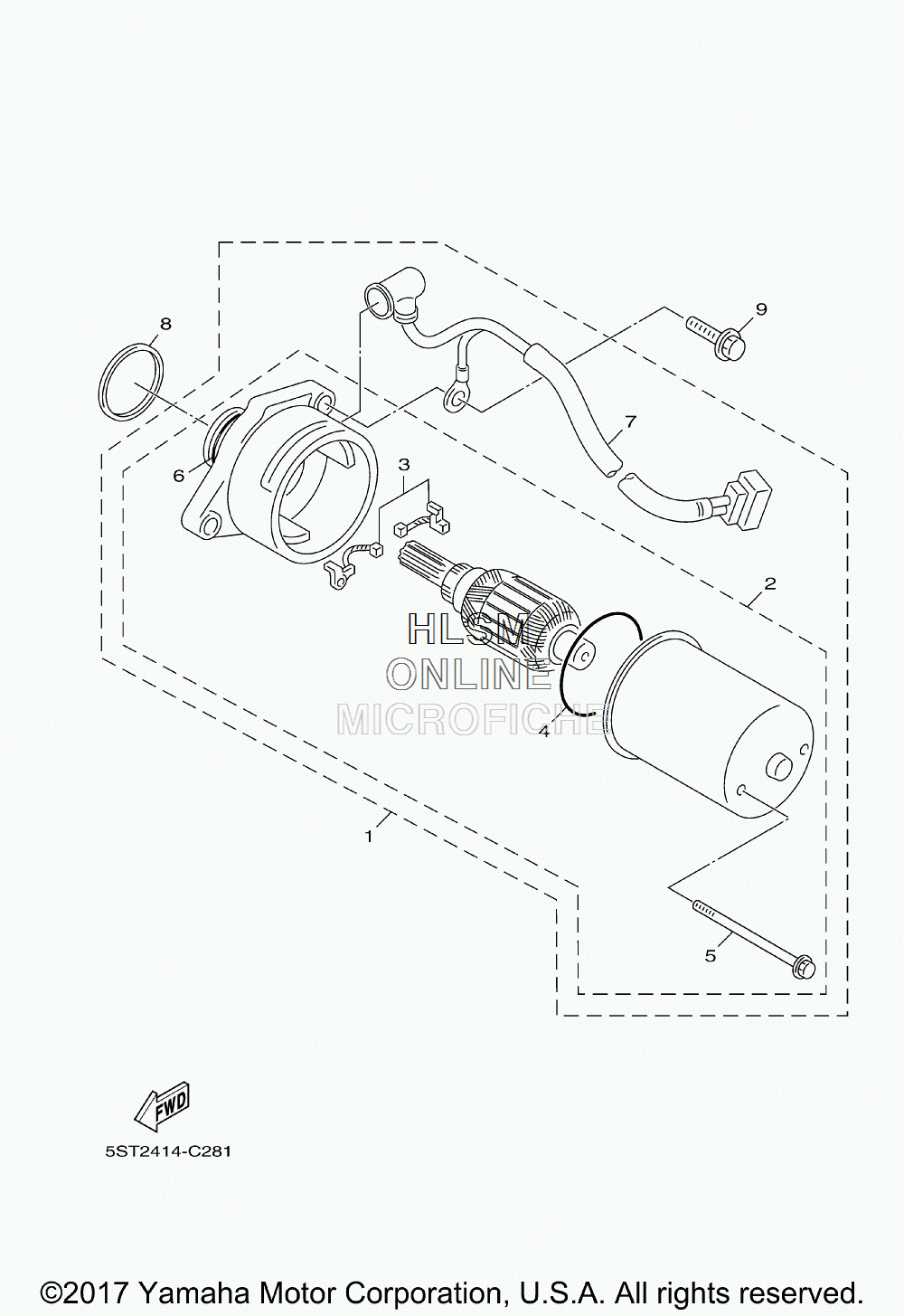

STARTING MOTOR ASSY. для Yamaha VINO CLASSIC - 2018 года выпуска`
-
№АртикулНазвание
-
113P-H1800-20-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
213P-WH180-00-00 ...ELECTRIC STARTER KIT...ELECTRIC STARTER KIT
-
34DM-H1801-00-00 ......BRUSH SET......BRUSH SET
-
493210-44678-00 ......O-RING......O-RING
-
55ST-H1828-10-00 ......SCREW 2......SCREW 2
-
693210-23614-00 ......O-RING......O-RING
-
713P-8183G-20-00 ...CORD COMP....CORD COMP.
-
890202-26800-00 WASHER, PLATEWASHER, PLATE
-
991317-06020-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
