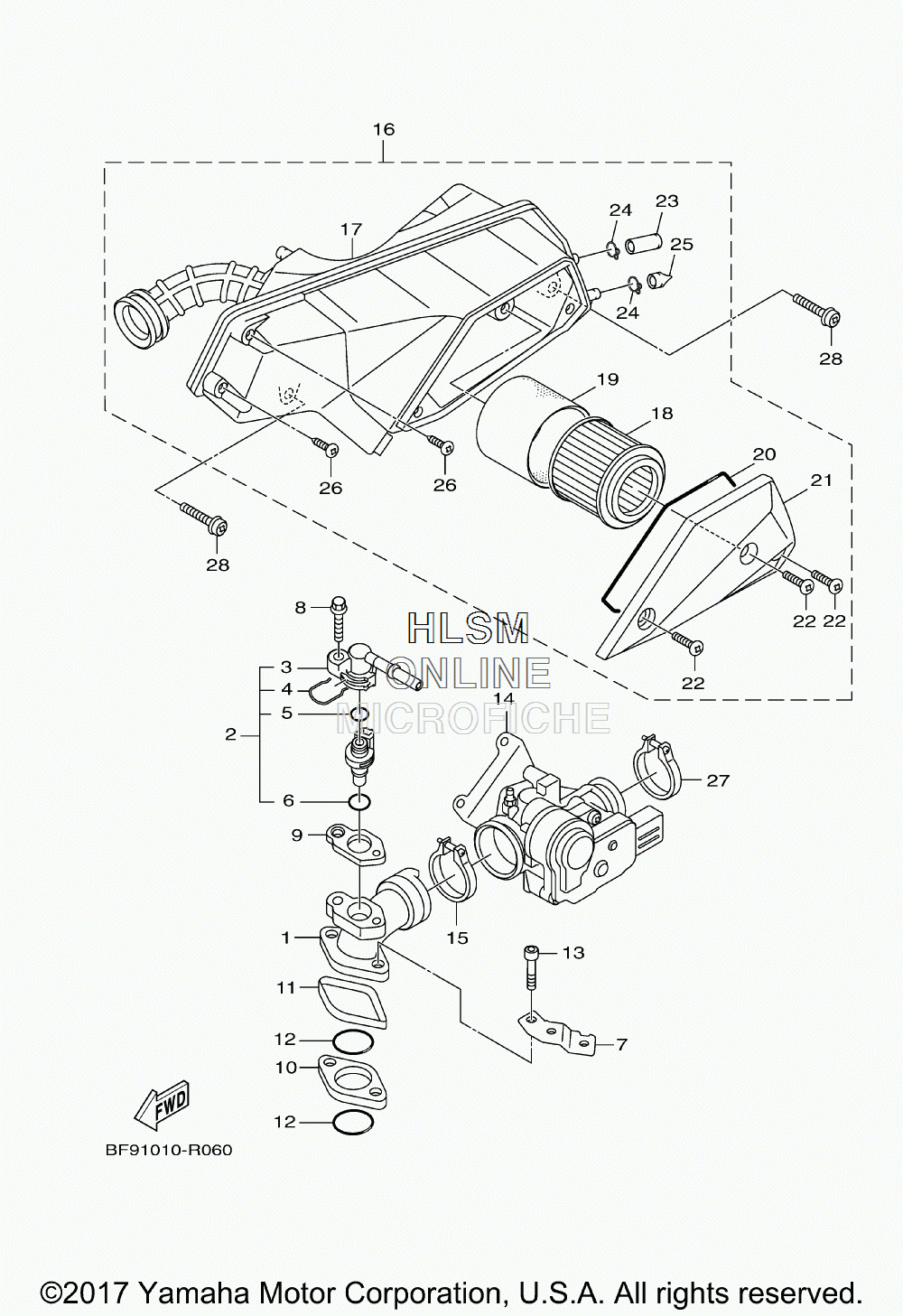

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA 125 - 2017 года выпуска`
-
№АртикулНазвание
-
12EB-E3585-00-00 MANIFOLDMANIFOLD
-
22EB-E3770-00-00 INJECTOR ASSYINJECTOR ASSY
-
354P-E3938-00-00 ...PIPE...PIPE
-
454P-E4137-00-00 ...CLIP...CLIP
-
554P-E4147-00-00 ...O-RING...O-RING
-
65CA-E4147-00-00 ...O-RING...O-RING
-
72JS-E4413-00-00 STAYSTAY
-
895817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
94P9-E3556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
104P9-E3595-01-00 JOINTJOINT
-
114P9-E4239-00-00 SEALSEAL
-
1293210-29802-00 O-RINGO-RING
-
1390110-06256-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
144C6-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
154P9-E3575-00-00 BANDBAND
-
162JS-E4410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
172JS-WE440-00-00 ...AIR CLEANER UNIT...AIR CLEANER UNIT
-
182JS-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
192JS-E4461-00-00 ...ELEMENT, AIR CLEANER 2...ELEMENT, AIR CLEANER 2
-
202JS-E4452-00-00 ...SEAL...SEAL
-
212JS-E4422-00-00 ...CAP, CLEANER CASE 2...CAP, CLEANER CASE 2
-
2290154-06827-00 ...SCREW, BINDING...SCREW, BINDING
-
231MS-E443E-00-00 ...PIPE, DRAIN...PIPE, DRAIN
-
241MS-E4137-00-00 ...CLIP...CLIP
-
252JS-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
2697707-40012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2790450-43805-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2897607-06230-00 SCREW, WITH WASHERSCREW, WITH WASHER
