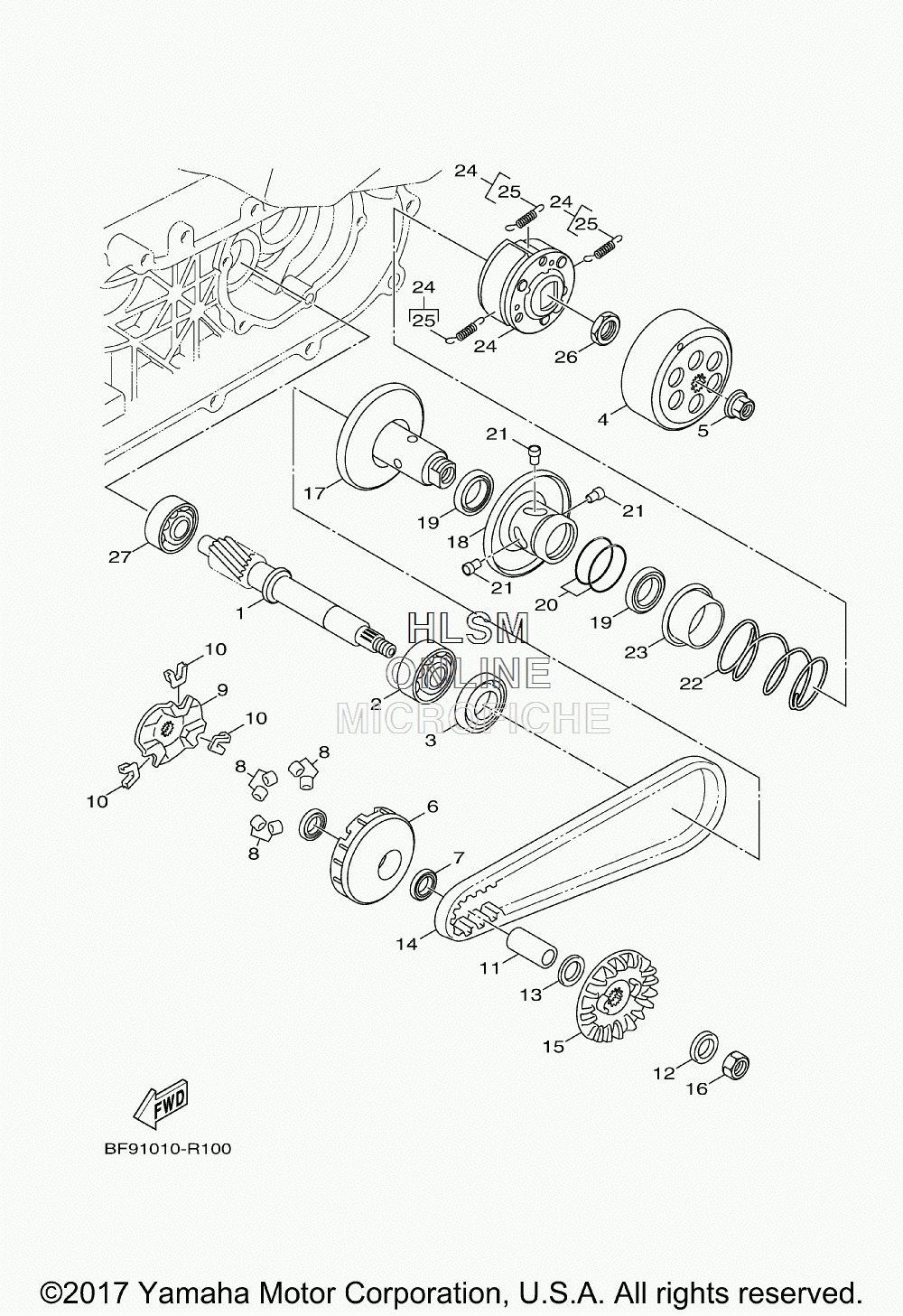

CLUTCH ASSY. для Yamaha ZUMA 125 - 2017 года выпуска`
-
№АртикулНазвание
-
12JS-E6111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-272X0-00 BEARINGBEARING
-
393102-22800-00 OIL SEALOIL SEAL
-
42JS-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
590179-14427-00 NUTNUT
-
62JS-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
793109-21800-00 OIL SEALOIL SEAL
-
85ML-E7632-00-00 WEIGHTWEIGHT
-
95ML-E7623-21-00 CAMCAM
-
104CW-E7653-00-00 SLIDERSLIDER
-
1190387-16801-00 COLLARCOLLAR
-
1290201-120A5-00 WASHER, PLATEWASHER, PLATE
-
1390201-16801-00 WASHER, PLATEWASHER, PLATE
-
142JS-E7641-10-00 V-BELTV-BELT
-
152JS-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
1690170-12800-00 NUTNUT
-
172JS-WE766-01-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
182JS-E7670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
1993104-41801-00 OIL SEALOIL SEAL
-
2093210-43800-00 O-RINGO-RING
-
212JS-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
2290501-43805-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
232JS-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
242JS-E6620-01-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
254CW-E6626-00-00 SPRING, CLUTCH WEIGHT 1SPRING, CLUTCH WEIGHT 1
-
2690170-36279-00 NUTNUT
-
2793306-203YS-00 BEARINGBEARING
