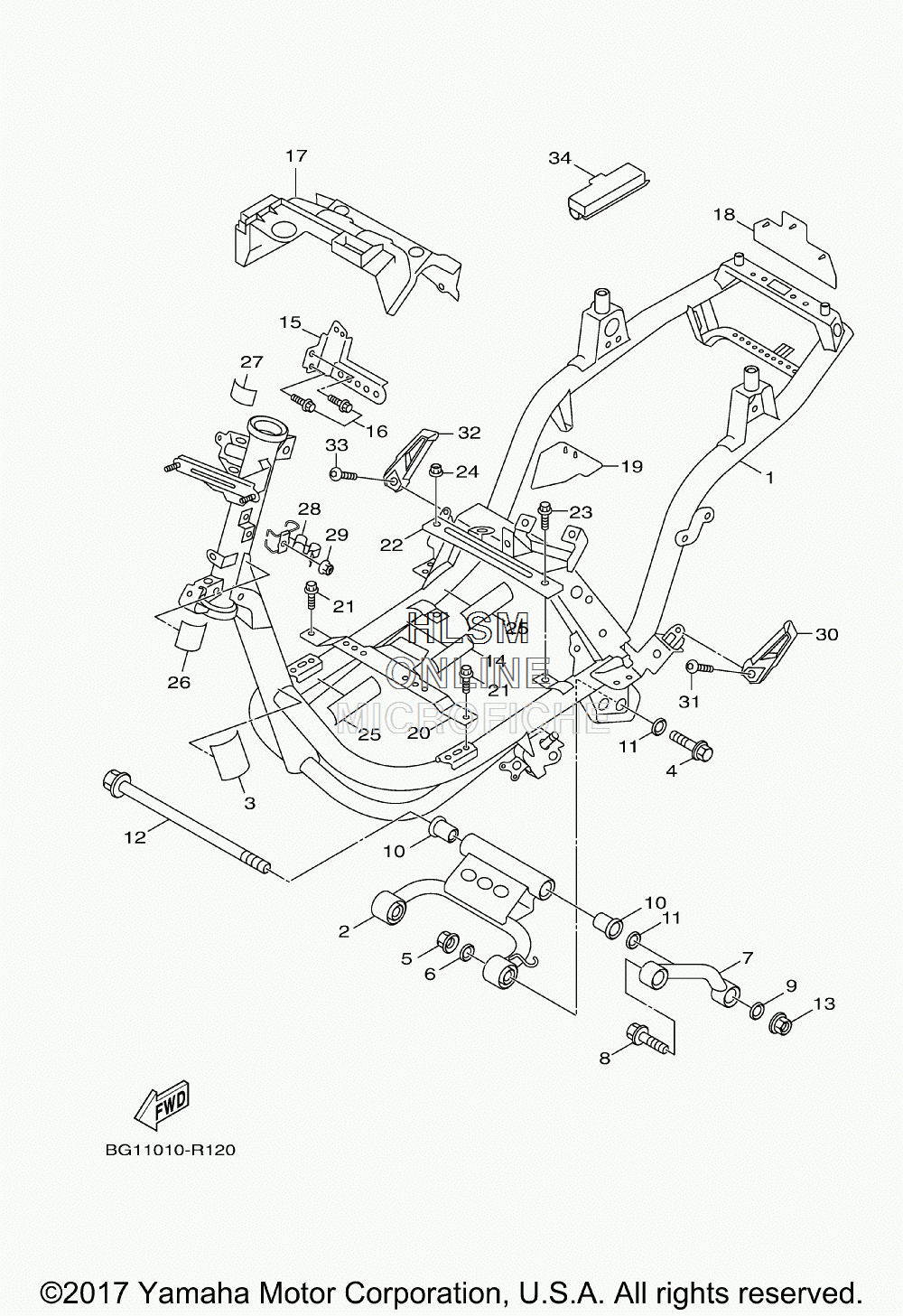

FRAME для Yamaha ZUMA 125 - 2017 года выпуска`
-
№АртикулНазвание
-
1BC9-F1110-00-33 FRAME COMP. (YB - YAMAHA BLACK)FRAME COMP. (YB - YAMAHA BLACK)
-
25S9-F1420-00-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
35ML-F117G-00-00 PROTECTORPROTECTOR
-
43UH-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
590185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690201-105A2-00 WASHER, PLATEWASHER, PLATE
-
75ML-F1480-10-00 STAY, ENGINESTAY, ENGINE
-
85S9-F1482-00-00 BOLT, ENGINE MOUNTING 2BOLT, ENGINE MOUNTING 2
-
990201-105A2-00 WASHER, PLATEWASHER, PLATE
-
105ML-F1544-01-00 COLLAR 1COLLAR 1
-
1190202-15803-00 WASHER, PLATEWASHER, PLATE
-
125ML-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
1390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
145ML-F836U-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
152JS-F1415-00-00 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
1695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
172JS-F842M-00-00 COVER 1COVER 1
-
182JS-F1561-00-00 FLAP 2FLAP 2
-
192JS-F162H-00-00 FLAP 3FLAP 3
-
201P3-F112K-30-00 BRACKET 5BRACKET 5
-
2195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
222JS-F116M-00-00 BRACKET 10BRACKET 10
-
2395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2495702-06500-00 NUT, FLANGENUT, FLANGE
-
251P3-F4747-01-00 DAMPER, SEATDAMPER, SEAT
-
2690520-01801-00 DAMPER, PLATEDAMPER, PLATE
-
2790520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
282JS-F5886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2990176-06055-00 NUT, CROWNNUT, CROWN
-
302JS-F7430-10-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
3152S-F7117-00-00 BOLT, MAIN STANDBOLT, MAIN STAND
-
322JS-F7440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
3352S-F7117-00-00 BOLT, MAIN STANDBOLT, MAIN STAND
-
344CW-F8100-00-00 TOOL KITTOOL KIT
