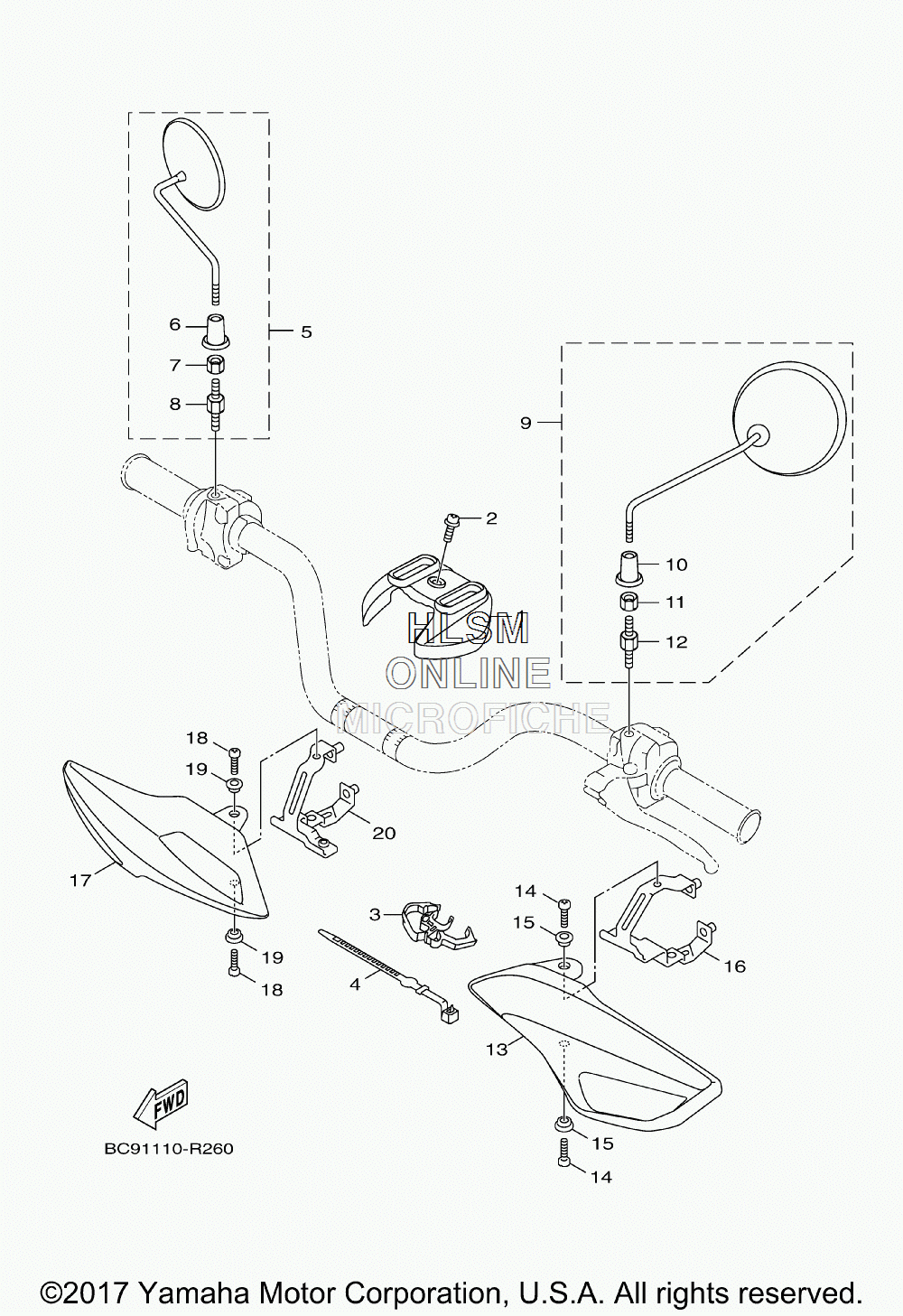

HANDLEBAR - COVER W/ MIRRORS для Yamaha ZUMA 125 - 2017 года выпуска`
-
№АртикулНазвание
-
12JS-F6143-00-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
290159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
32JS-F627E-00-00 CLAMP, WIRECLAMP, WIRE
-
437C-H3936-10-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
55S9-F6290-01-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
65FA-F629T-00-00 ...BOOT 1...BOOT 1
-
75FA-F6294-00-00 ...NUT 1...NUT 1
-
85FA-F6356-01-00 ...BOLT, ADJUSTING...BOLT, ADJUSTING
-
95S9-F6280-01-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
105FA-F629T-00-00 ...BOOT 1...BOOT 1
-
115FA-F6294-00-00 ...NUT 1...NUT 1
-
125FA-F6386-01-00 ...BOLT, ADJUSTING...BOLT, ADJUSTING
-
135S9-F6141-20-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
1498907-05014-00 SCREW, BINDSCREW, BIND
-
1590387-06868-00 COLLARCOLLAR
-
165S9-F612K-10-00 BRKT 2BRKT 2
-
175S9-F6142-20-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
1898907-05014-00 SCREW, BINDSCREW, BIND
-
1990387-06868-00 COLLARCOLLAR
-
205S9-F612L-10-00 BRACKET 3BRACKET 3
