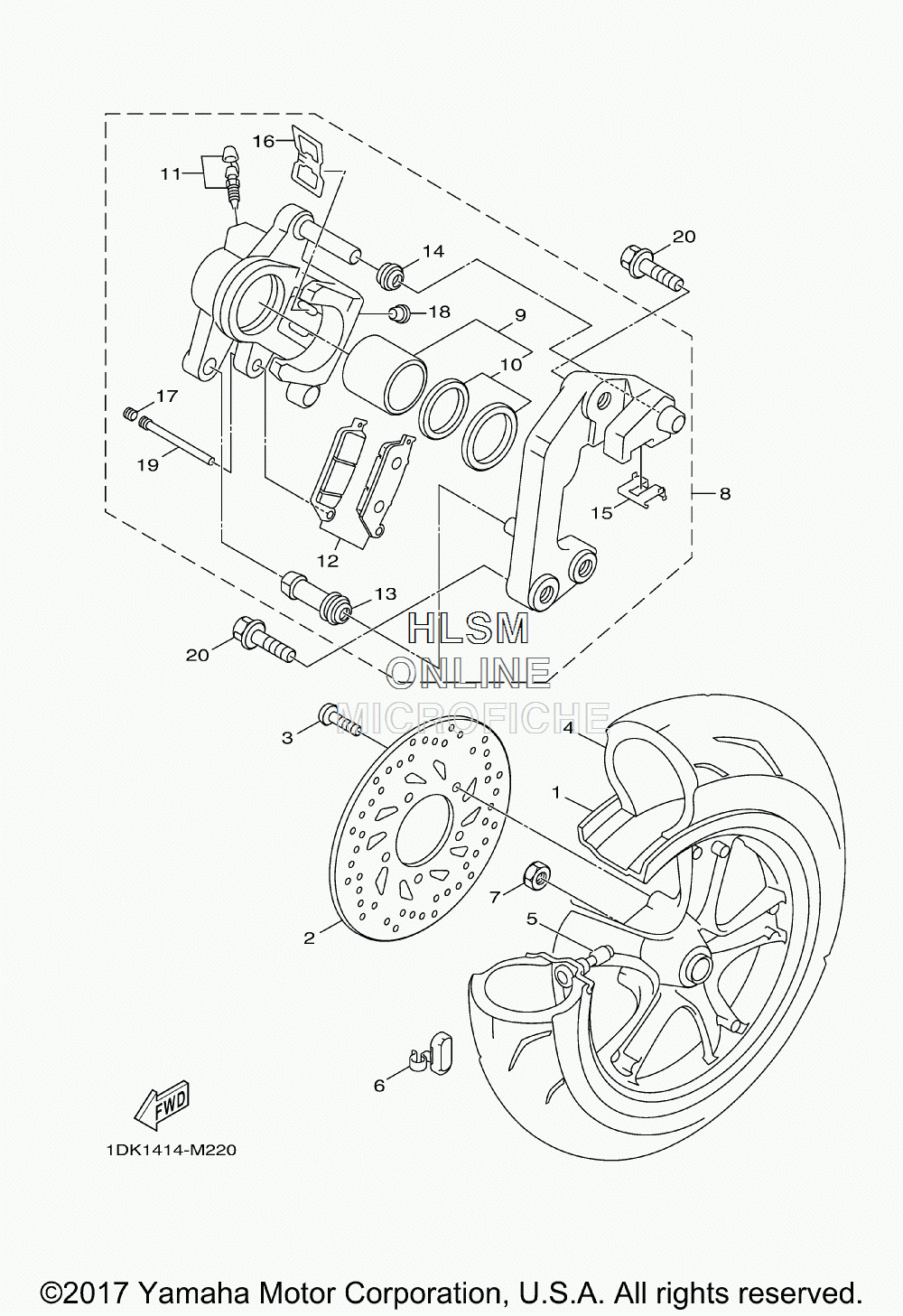

WHEEL - REAR для Yamaha SMAX - 2017 года выпуска`
-
№АртикулНазвание
-
11DK-F5338-00-35 CAST WHEEL, REAR (SL - SILVER)CAST WHEEL, REAR (SL - SILVER)
-
21DK-F582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390111-08834-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
494113-13800-00 TIRETIRE
-
593900-00834-00 VALVE, RIMVALVE, RIM
-
65MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
65MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
65MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
790185-16800-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
81DK-F580W-20-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
91DK-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
105S9-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
111MS-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
121DK-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
135ML-F5927-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
145ML-F5937-00-00 ...BOOT 2...BOOT 2
-
151DK-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
161DK-F5919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
171MS-F5139-00-00 ...PLUG, BLIND...PLUG, BLIND
-
185AG-F5845-00-00 ...CAP, INDICATOR...CAP, INDICATOR
-
191DK-F5924-00-00 ...PIN, PAD...PIN, PAD
-
2090105-10638-00 BOLT, FLANGEBOLT, FLANGE
