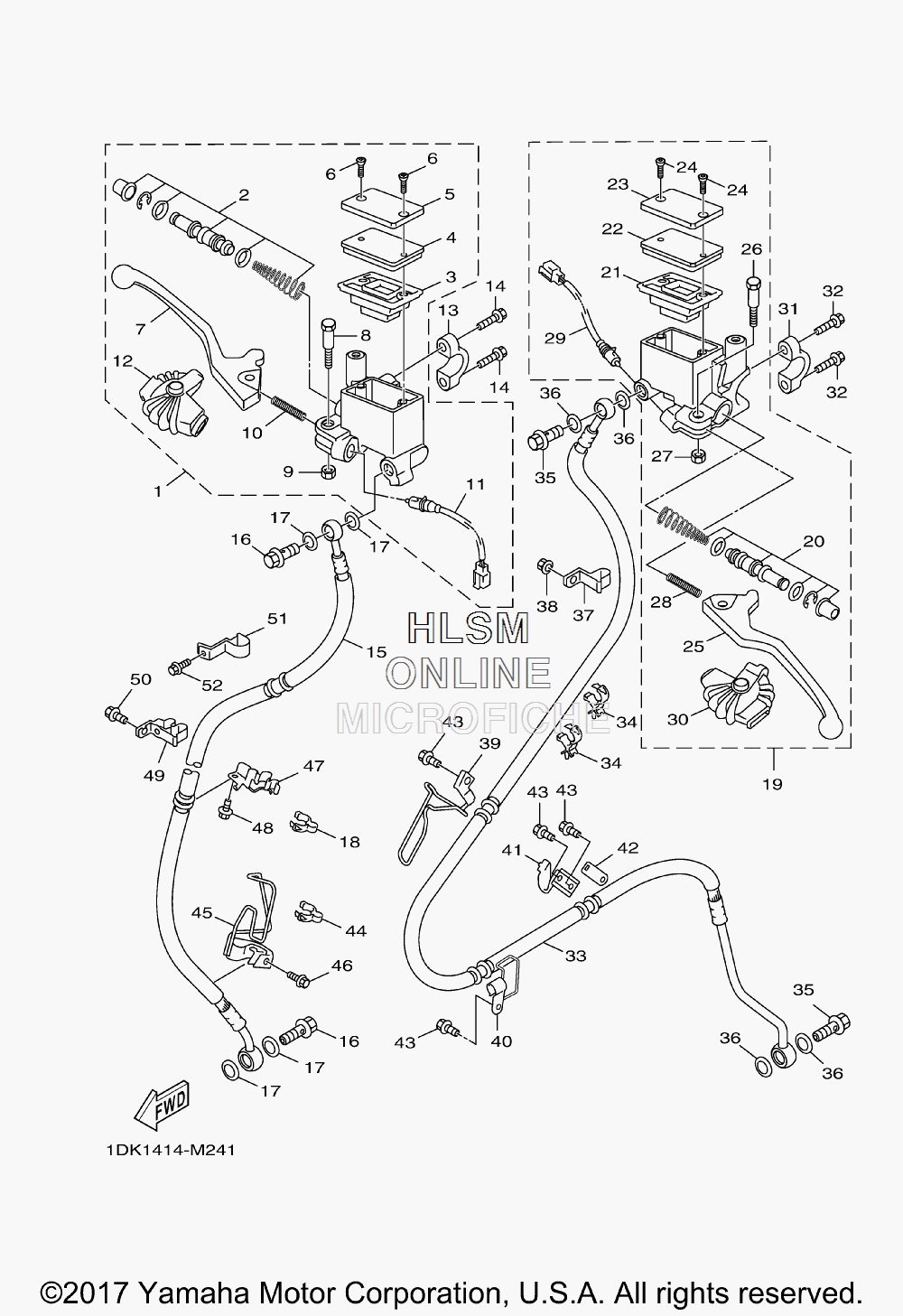

BRAKE - MASTER CYLINDER для Yamaha SMAX - 2017 года выпуска`
-
№АртикулНазвание
-
11DK-F5870-01-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25NW-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
353B-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
453B-F5855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
51DK-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
698707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
71DK-H3922-00-00 ...LEVER 2...LEVER 2
-
841D-H3945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995607-06100-00 ...NUT, U...NUT, U
-
1090501-10312-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
111DK-H3980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
121DK-F6372-01-00 ...COVER, HANDLE LEVER 1...COVER, HANDLE LEVER 1
-
133GF-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1490105-068B4-00 BOLT, FLANGEBOLT, FLANGE
-
151DK-F5872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1690401-10820-00 BOLT, UNIONBOLT, UNION
-
1790201-10118-00 WASHER, PLATEWASHER, PLATE
-
1890464-17003-00 CLAMPCLAMP
-
191DK-F5870-11-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
205NW-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
2153B-F5854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
2253B-F5855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
231DK-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
2498707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
251DK-H3912-00-00 ...LEVER 1...LEVER 1
-
2641D-H3945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
2795607-06100-00 ...NUT, U...NUT, U
-
2890501-10312-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
291DK-H3980-10-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
301DK-F637A-01-00 ...COVER, HANDLE LEVER 2...COVER, HANDLE LEVER 2
-
313GF-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
3290105-068B4-00 BOLT, FLANGEBOLT, FLANGE
-
331DK-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
3490464-16803-00 CLAMPCLAMP
-
3590401-10820-00 BOLT, UNIONBOLT, UNION
-
3690201-10118-00 WASHER, PLATEWASHER, PLATE
-
371DK-F588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
3890176-06065-00 NUT, CROWNNUT, CROWN
-
391DK-F5887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
401DK-F588G-00-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
411DK-F8216-00-00 PLATE, LOCK 1PLATE, LOCK 1
-
421DK-F1682-00-00 STAY, PLATESTAY, PLATE
-
4395807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4490464-14803-00 CLAMPCLAMP
-
4590464-14810-00 CLAMPCLAMP
-
461DK-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
4795807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
481DK-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4995807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
501DK-F587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
5195802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
521DK-F5886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
5395807-06010-00 BOLT, FLANGEBOLT, FLANGE
