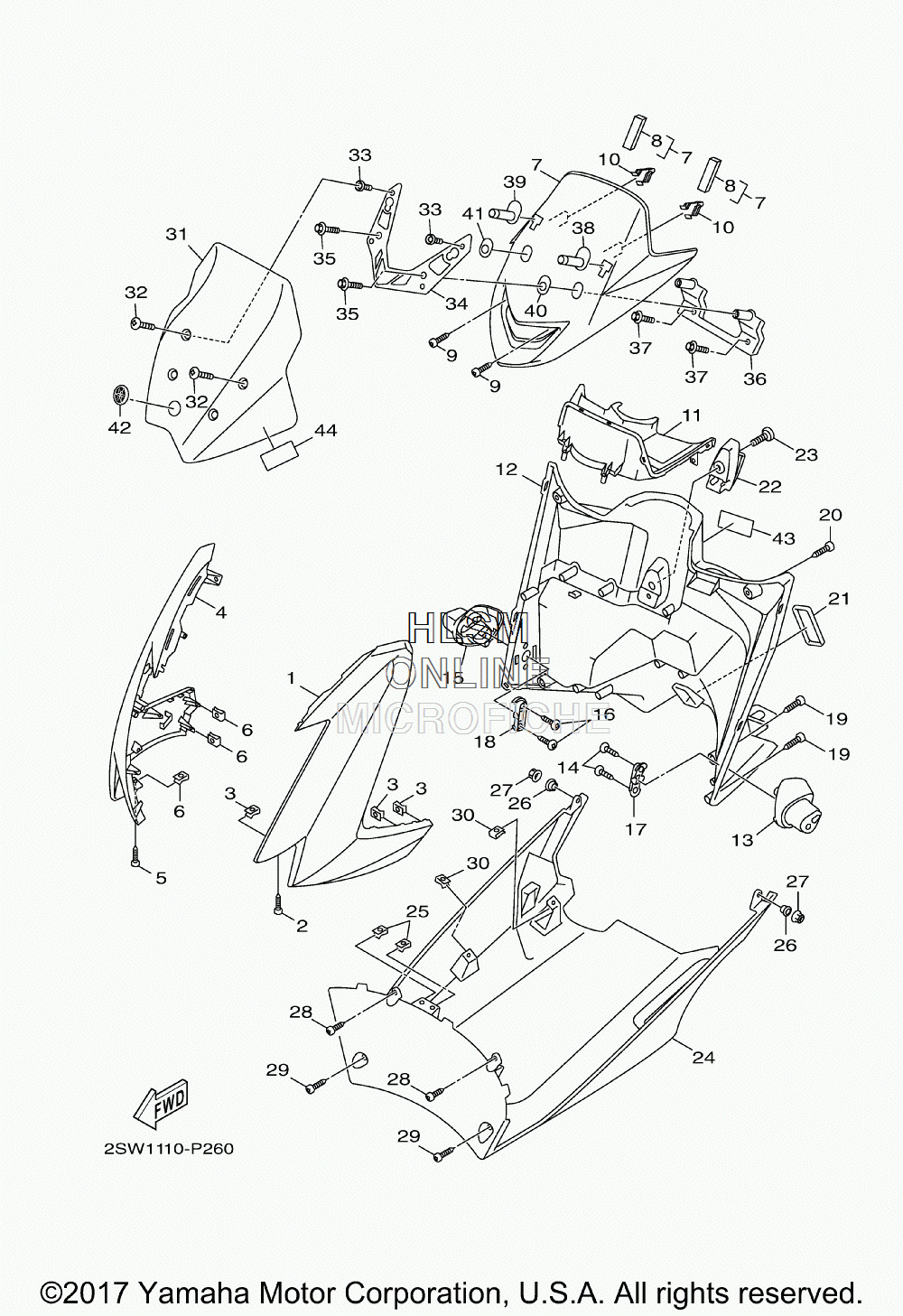

COWLING W/ LEG SHIELD для Yamaha SMAX - 2017 года выпуска`
-
№АртикулНазвание
-
11DK-F835U-00-P0 PANEL 1 (SMX - BLACK METALLIC)PANEL 1 (SMX - BLACK METALLIC)
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390183-05816-00 NUT, SPRINGNUT, SPRING
-
41DK-F835V-00-P0 PANEL 2 (SMX - BLACK METALLIC)PANEL 2 (SMX - BLACK METALLIC)
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690183-05816-00 NUT, SPRINGNUT, SPRING
-
72PE-XF836-00-P0 PANEL COMP 1 (MBL2 - MAT BLACK 2)PANEL COMP 1 (MBL2 - MAT BLACK 2)
-
890520-10822-00 ...DAMPER, PLATE...DAMPER, PLATE
-
990169-05001-00 TAPPING SCREWTAPPING SCREW
-
1090468-04800-00 CLIPCLIP
-
111DK-F836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
122SW-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
132SW-F83D3-00-00 COVER, FLASHER 1COVER, FLASHER 1
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
152SW-F83D4-00-00 COVER, FLASHER 2COVER, FLASHER 2
-
1697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
172SW-F8396-00-00 PLATE 1PLATE 1
-
182SW-F8397-00-00 PLATE 2PLATE 2
-
1997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2090169-05001-00 TAPPING SCREWTAPPING SCREW
-
215FM-F8349-00-00 CAPCAP
-
221CJ-F8257-10-00 HOOK 1HOOK 1
-
2390149-06814-00 SCREWSCREW
-
241DK-F8385-02-00 COVER, UNDERCOVER, UNDER
-
2590183-04039-00 NUT, SPRINGNUT, SPRING
-
2690387-062M9-00 COLLARCOLLAR
-
2795707-06500-00 NUT, FLANGENUT, FLANGE
-
2897707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2990169-05001-00 TAPPING SCREWTAPPING SCREW
-
3090183-05816-00 NUT, SPRINGNUT, SPRING
-
312PE-F837U-00-00 SCREENSCREEN
-
3290150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
3390179-05003-00 NUTNUT
-
342PE-F8356-00-00 STAY 1STAY 1
-
3590119-068B0-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
361DK-F8367-00-00 BRACKETBRACKET
-
3795827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
382PE-F83C1-00-00 STOPPER, RUBBER 1STOPPER, RUBBER 1
-
392PE-F83C2-00-00 STOPPER, RUBBER 2STOPPER, RUBBER 2
-
402PE-F839K-00-00 LID 1LID 1
-
412PE-F839L-00-00 LID 2LID 2
-
422PE-F8291-00-00 EMBLEM 1EMBLEM 1
-
432SW-F4876-00-00 LABEL, 2LABEL, 2
-
442SW-F815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
