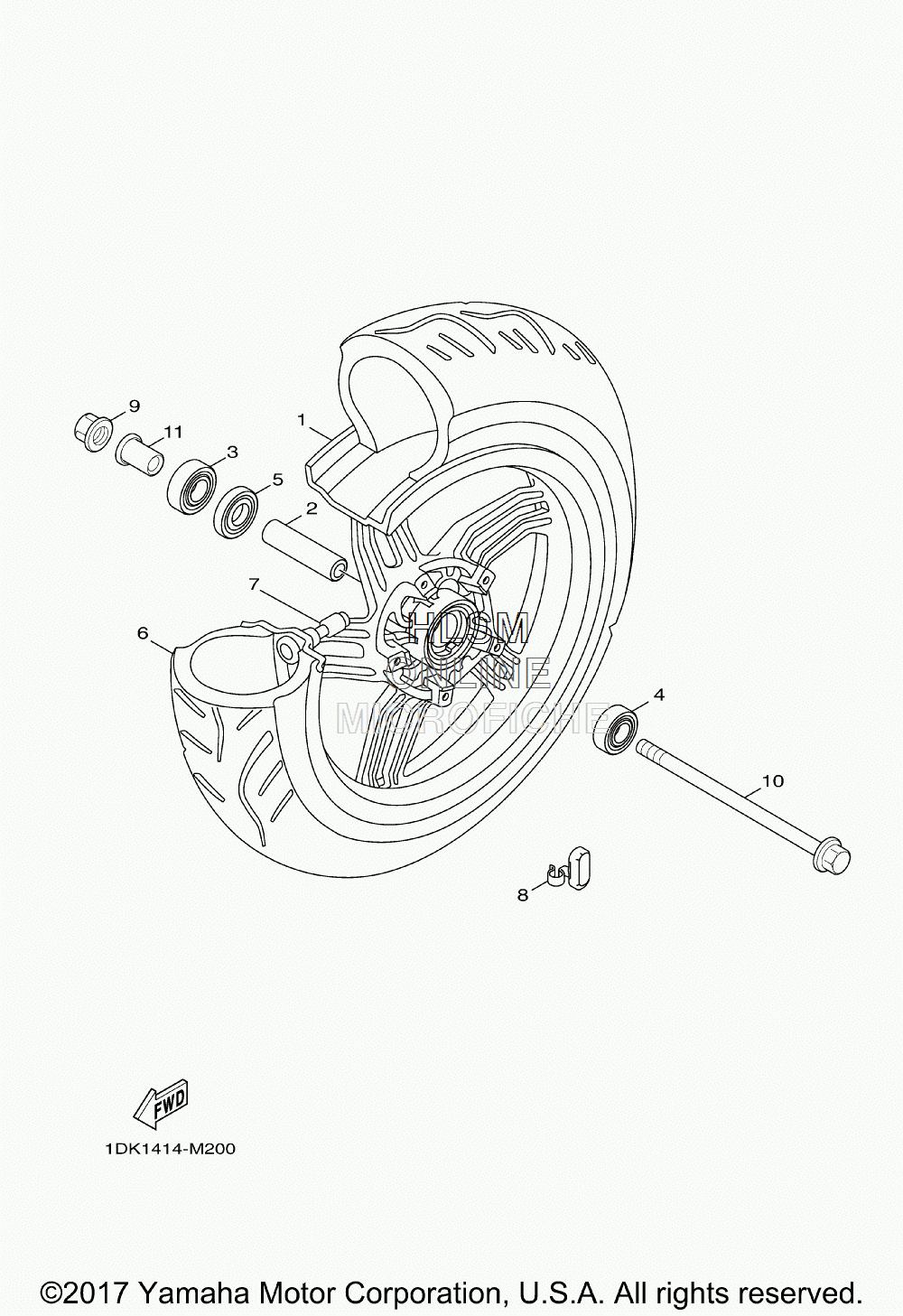

WHEEL - FRONT для Yamaha SMAX - 2017 года выпуска`
-
№АртикулНазвание
-
11DK-F5168-10-35 CAST WHEEL, FRONT (SL - SILVER)CAST WHEEL, FRONT (SL - SILVER)
-
25ML-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
393106-17805-00 OIL SEALOIL SEAL
-
493306-201Y7-00 BEARINGBEARING
-
593306-301YA-00 BEARINGBEARING
-
694112-13800-00 TIRETIRE
-
793900-00832-00 VALVE, RIMVALVE, RIM
-
85MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
85MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
85MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
101DK-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1190387-12852-00 COLLARCOLLAR
