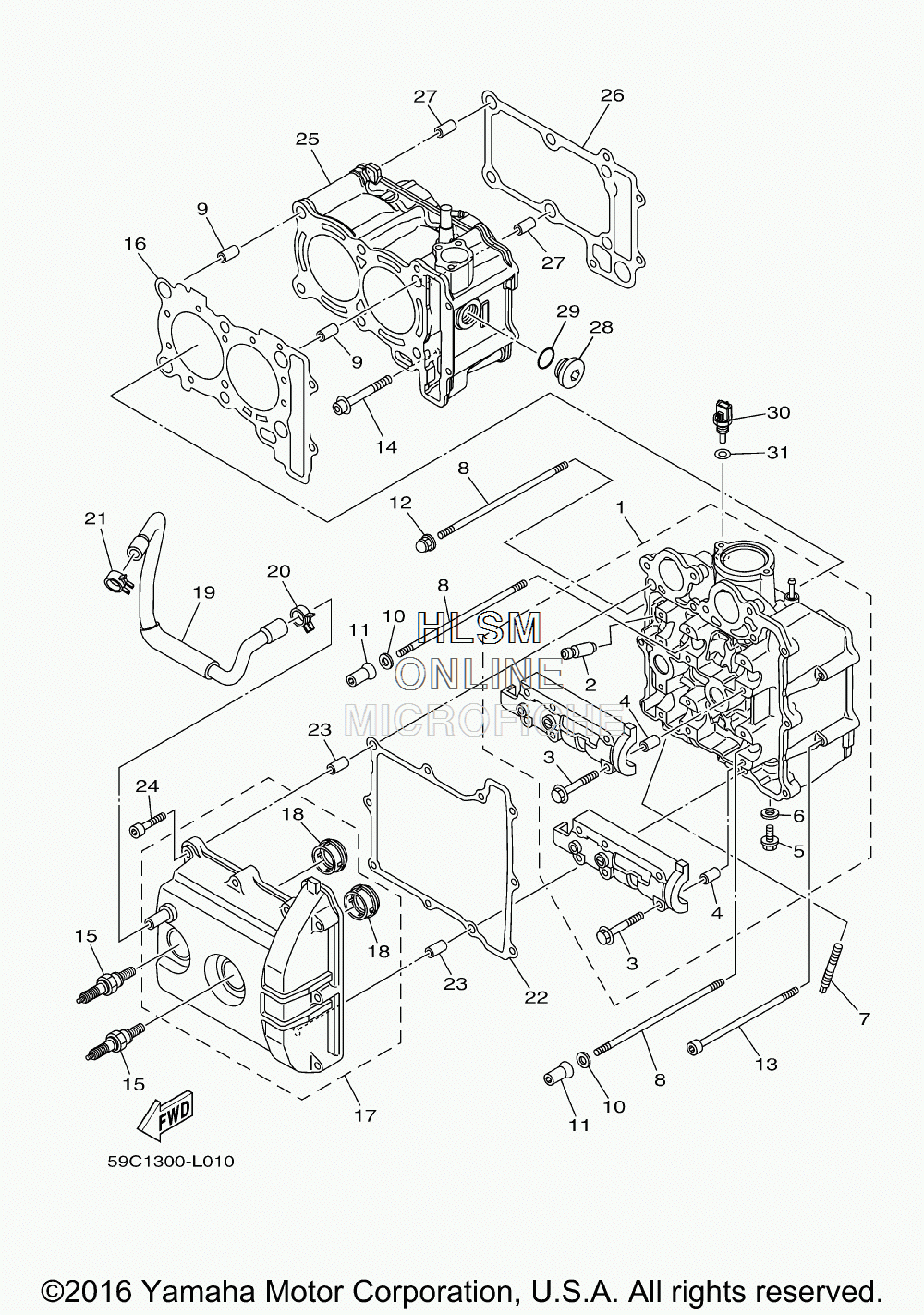

CYLINDER W/ HEAD ASSY. для Yamaha TMAX [XP500G] - 2016 года выпуска`
-
№АртикулНазвание
-
159C-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25NL-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
390105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
595022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
690430-08119-00 ...GASKET...GASKET
-
790116-08087-00 BOLT, STUDBOLT, STUD
-
890116-09584-00 BOLT, STUDBOLT, STUD
-
993612-16254-00 PIN, DOWELPIN, DOWEL
-
1090201-090P4-00 WASHER, PLATEWASHER, PLATE
-
1190179-09612-00 NUTNUT
-
1290176-09001-00 NUT, CROWNNUT, CROWN
-
1390110-06021-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490110-06379-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1594701-00353-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
1659C-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1759C-11190-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
185GJ-11195-00-00 ...GASKET...GASKET
-
1959C-11166-01-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2090467-15001-00 CLIPCLIP
-
2190467-16181-00 CLIPCLIP
-
2259C-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
2399530-10116-00 PIN, DOWELPIN, DOWEL
-
2491312-06035-00 BOLTBOLT
-
2559C-11310-08-00 CYLINDERCYLINDER
-
2659C-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
2793612-16254-00 PIN, DOWELPIN, DOWEL
-
284H7-15189-00-00 PLUGPLUG
-
2993210-22382-00 O-RINGO-RING
-
305PS-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
3190430-12202-00 GASKETGASKET
