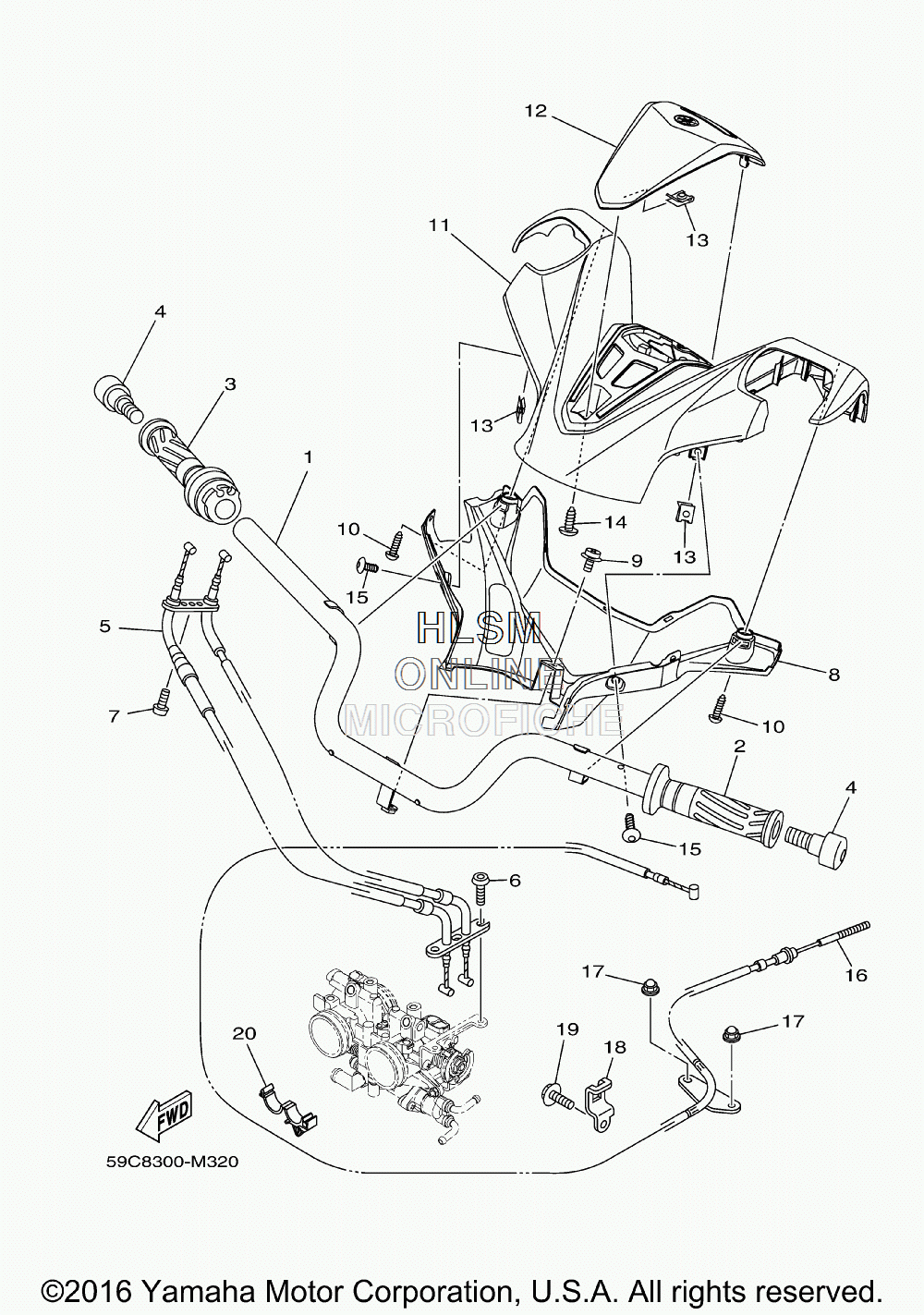

HANDLEBAR W/ CABLES - MIRRORS для Yamaha TMAX [XP500G] - 2016 года выпуска`
-
№АртикулНазвание
-
159C-26110-01-00 HANDLE COMP.HANDLE COMP.
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSYGRIP ASSY
-
45GJ-26246-00-00 END, GRIPEND, GRIP
-
52PW-26301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
692012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
798502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
859C-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
990159-05032-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1090160-05014-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1159C-26143-00-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
1259C-26145-00-P0 COVER, HANDLE UPPER 2 (MBL2 FOR MLNM3)COVER, HANDLE UPPER 2 (MBL2 FOR MLNM3)
-
1390183-05042-00 NUT, SPRINGNUT, SPRING
-
1497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1590167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
1659C-2835X-00-00 WIREWIRE
-
1790176-06055-00 NUT, CROWNNUT, CROWN
-
184B5-26131-00-00 GUIDE, CABLE 1GUIDE, CABLE 1
-
1995822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2090464-16006-00 CLAMPCLAMP
