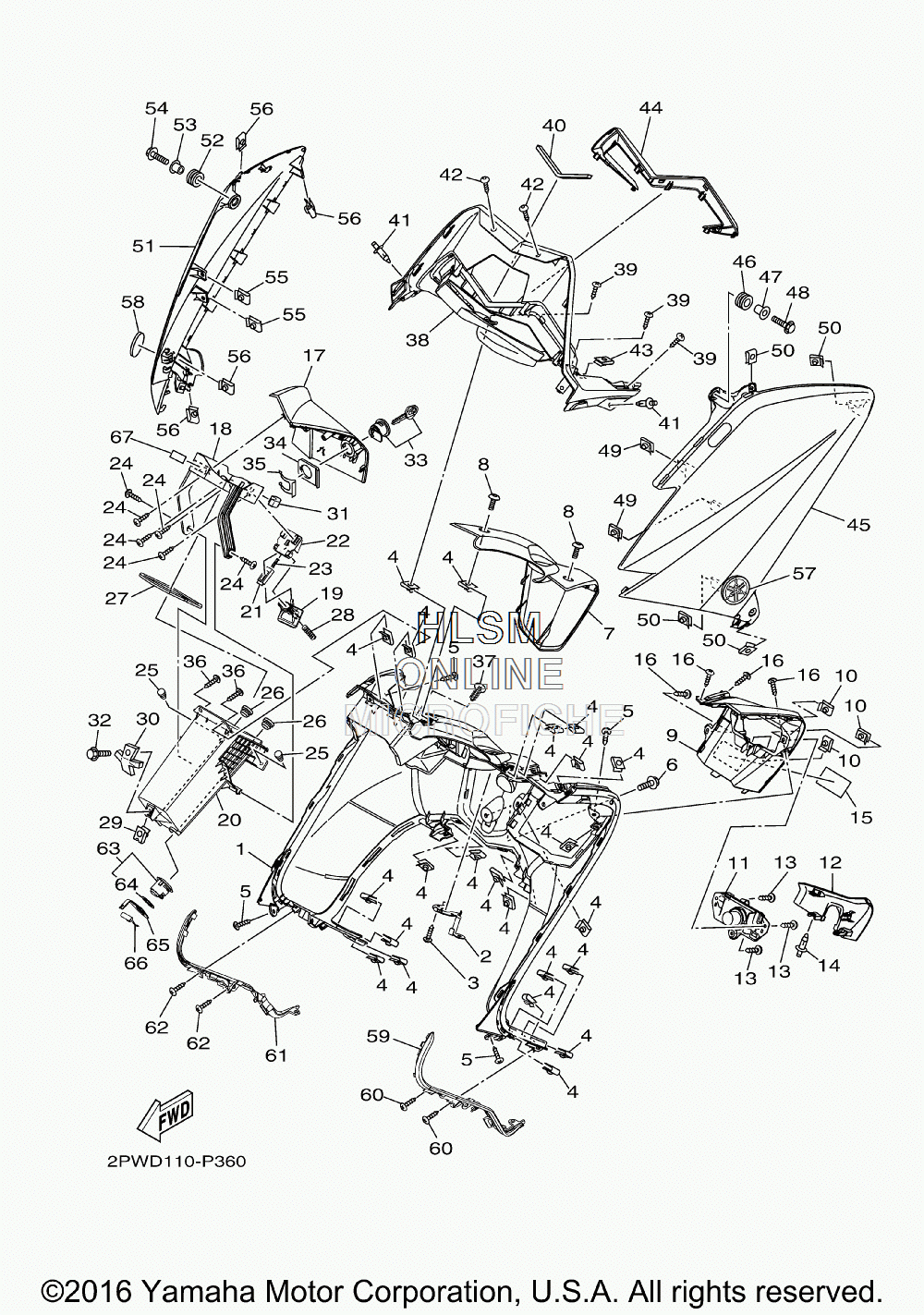

COWLING W/ LEG SHIELD для Yamaha TMAX [XP500G] - 2016 года выпуска
-
№АртикулНазвание
-
159C-28311-00-00 LEG SHIELD 1LEG SHIELD 1
-
22PW-28366-00-00 BRACKETBRACKET
-
397707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
490183-05042-00 NUT, SPRINGNUT, SPRING
-
597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
690119-06212-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
759C-28312-00-00 LEG SHIELD 2LEG SHIELD 2
-
890167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
959C-28313-00-00 LIDLID
-
1090183-05042-00 NUT, SPRINGNUT, SPRING
-
112PW-2830P-00-00 PANEL ASSYPANEL ASSY
-
122PW-2839V-00-00 LID 3LID 3
-
1390169-05001-00 TAPPING SCREWTAPPING SCREW
-
1490269-06008-00 RIVETRIVET
-
154C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
1697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1759C-2839K-00-00 LID 1LID 1
-
1859C-2836N-00-00 PANEL, INNER 4PANEL, INNER 4
-
1959C-2836Y-00-00 KNOB, 2KNOB, 2
-
202PW-2838L-00-00 BOX 2BOX 2
-
2159C-28235-00-00 PIN, LOCKPIN, LOCK
-
2259C-2848Y-00-00 COVER, LOCKCOVER, LOCK
-
2359C-28388-00-00 SPRINGSPRING
-
2497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2590338-06018-00 PLUGPLUG
-
2690338-10132-00 PLUGPLUG
-
2790520-06006-00 DAMPER, PLATEDAMPER, PLATE
-
2859C-2838C-00-00 SPRING 2SPRING 2
-
2990183-06069-00 NUT, SPRINGNUT, SPRING
-
3059C-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
315JX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
3290119-06241-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3359C-28407-00-00 LOCK SET 2LOCK SET 2
-
3459C-2117K-00-00 STAY, LOCKSTAY, LOCK
-
3559C-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
-
3697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
3790269-03001-00 RIVETRIVET
-
3859C-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
3997702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
4090520-03012-00 DAMPER, PLATEDAMPER, PLATE
-
4190269-06001-00 RIVETRIVET
-
4290111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4390183-05042-00 NUT, SPRINGNUT, SPRING
-
4459C-2839R-00-P0 PANEL, ACCESSORY (MBL2 FOR MLNM3)PANEL, ACCESSORY (MBL2 FOR MLNM3)
-
452PW-28351-00-P4 BODY, COWLING (MLNM3)BODY, COWLING (MLNM3)
-
4690480-14003-00 GROMMETGROMMET
-
4790387-0602X-00 COLLARCOLLAR
-
4895822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
4990183-060A6-00 NUT, SPRINGNUT, SPRING
-
5090183-05042-00 NUT, SPRINGNUT, SPRING
-
512PW-28377-00-P4 BODY, COWLING 2 (MLNM3)BODY, COWLING 2 (MLNM3)
-
5290480-14003-00 GROMMETGROMMET
-
5390387-0602X-00 COLLARCOLLAR
-
5495822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
5590183-060A6-00 NUT, SPRINGNUT, SPRING
-
5690183-05042-00 NUT, SPRINGNUT, SPRING
-
571RC-2413B-00-00 EMBLEMEMBLEM
-
581RC-2413B-00-00 EMBLEMEMBLEM
-
5959C-28396-00-00 PLATE 1PLATE 1
-
6097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6159C-28397-00-00 PLATE 2PLATE 2
-
6297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
632PW-W2470-00-00 ROTOR SETROTOR SET
-
642PW-2839T-00-00 ...GASKET, LOCK...GASKET, LOCK
-
652PW-2117K-00-00 STAY, LOCKSTAY, LOCK
-
665VY-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
-
674BR-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
