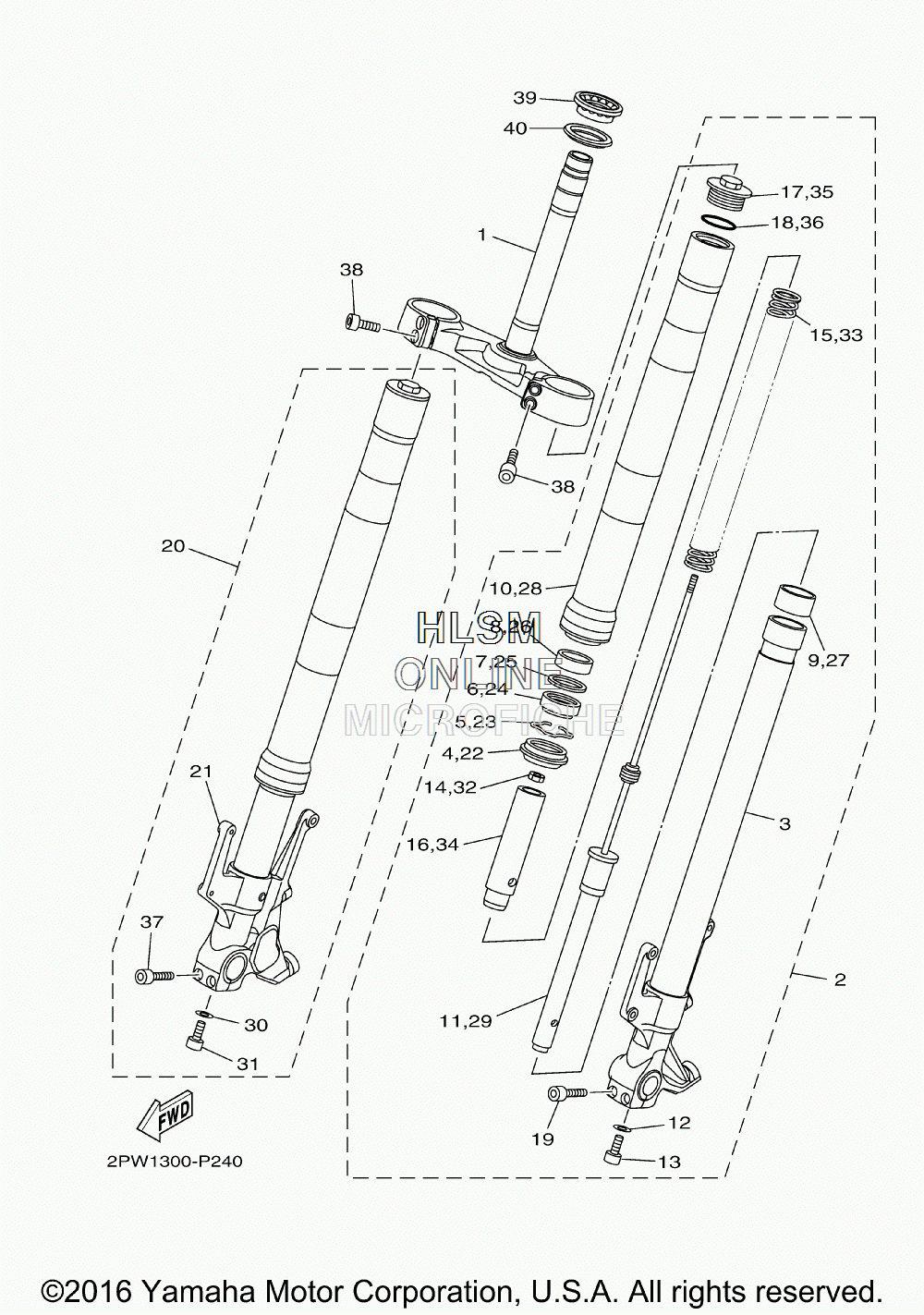

SUSPENSION - FRONT FORK для Yamaha TMAX [XP500G] - 2016 года выпуска`
-
№АртикулНазвание
-
12PW-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
22PW-23102-00-00 FRONT FORK ASSY (L.EFT HAND)FRONT FORK ASSY (L.EFT HAND)
-
32PW-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
44EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
526H-23156-00-00 ...RING, SNAP...RING, SNAP
-
64EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
81RC-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94FM-23171-40-00 ...METAL, SLIDE...METAL, SLIDE
-
102PW-23126-00-00 ...TUBE, OUTER (L.EFT HAND)...TUBE, OUTER (L.EFT HAND)
-
112PW-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
12509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
13278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
143LC-23357-00-00 ...NUT...NUT
-
152PW-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
165VY-23118-00-00 ...SPACER...SPACER
-
172PW-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1839P-23147-00-00 ...O-RING...O-RING
-
1991314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
202PW-23103-00-00 FRONT FORK ASSY (RIGHT HAND)FRONT FORK ASSY (RIGHT HAND)
-
212PW-23110-10-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
224EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2326H-23156-00-00 ...RING, SNAP...RING, SNAP
-
244EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2536Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
261RC-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
274FM-23171-40-00 ...METAL, SLIDE...METAL, SLIDE
-
282PW-23126-00-00 ...TUBE, OUTER (L.EFT HAND)...TUBE, OUTER (L.EFT HAND)
-
292PW-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
30509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
31278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
323LC-23357-00-00 ...NUT...NUT
-
332PW-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
345VY-23118-00-00 ...SPACER...SPACER
-
352PW-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3639P-23147-00-00 ...O-RING...O-RING
-
3791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3891312-08030-00 BOLTBOLT
-
3993399-99957-00 BEARINGBEARING
-
403FV-23462-00-00 .SEAL, STEERING.SEAL, STEERING
