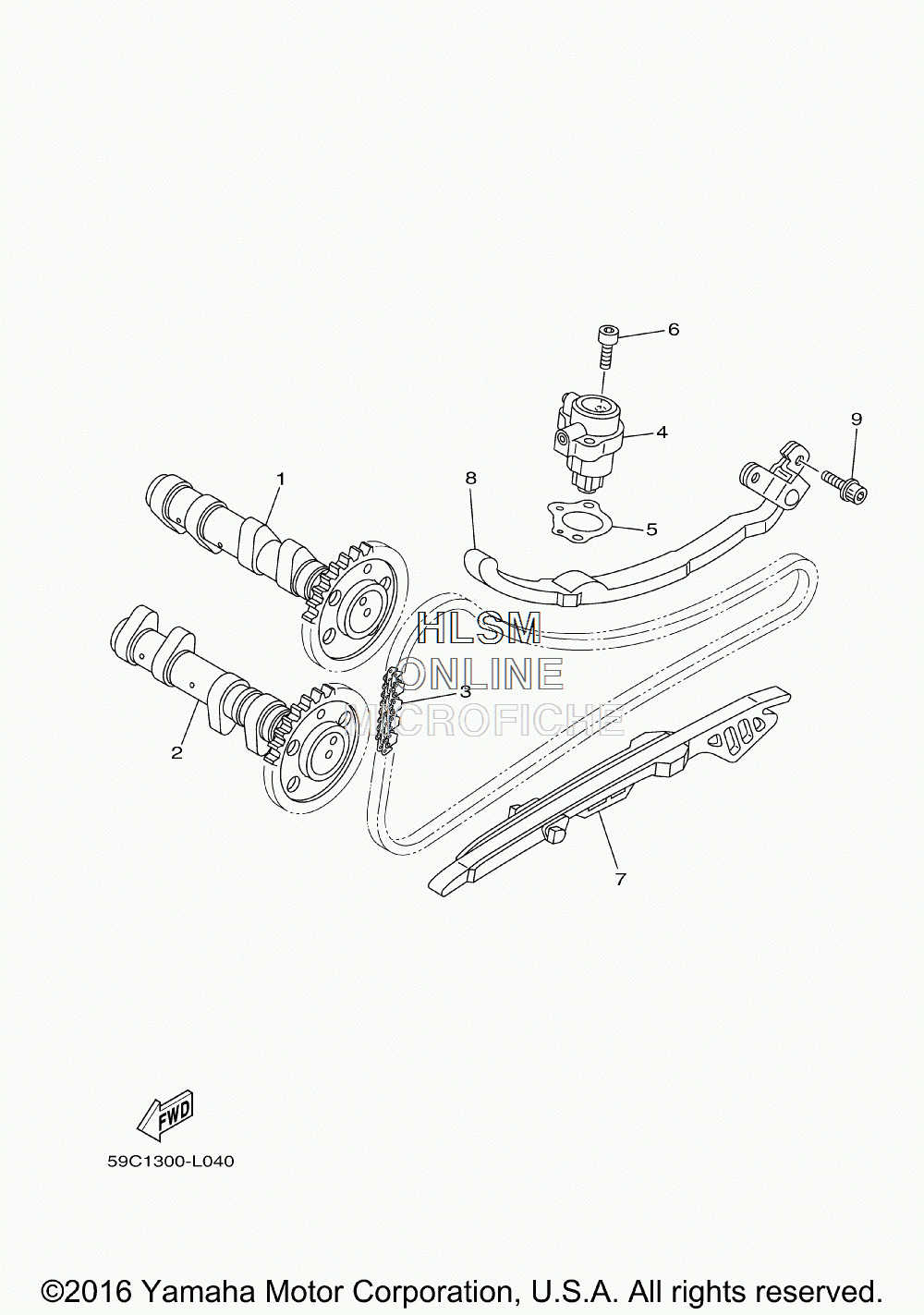

CAMSHAFT W/ CHAIN для Yamaha TMAX [XP500G] - 2016 года выпуска`
-
№АртикулНазвание
-
159C-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
259C-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
394591-53134-00 CHAINCHAIN
-
42PW-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
515B-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
691312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
759C-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
85GJ-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
990110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
