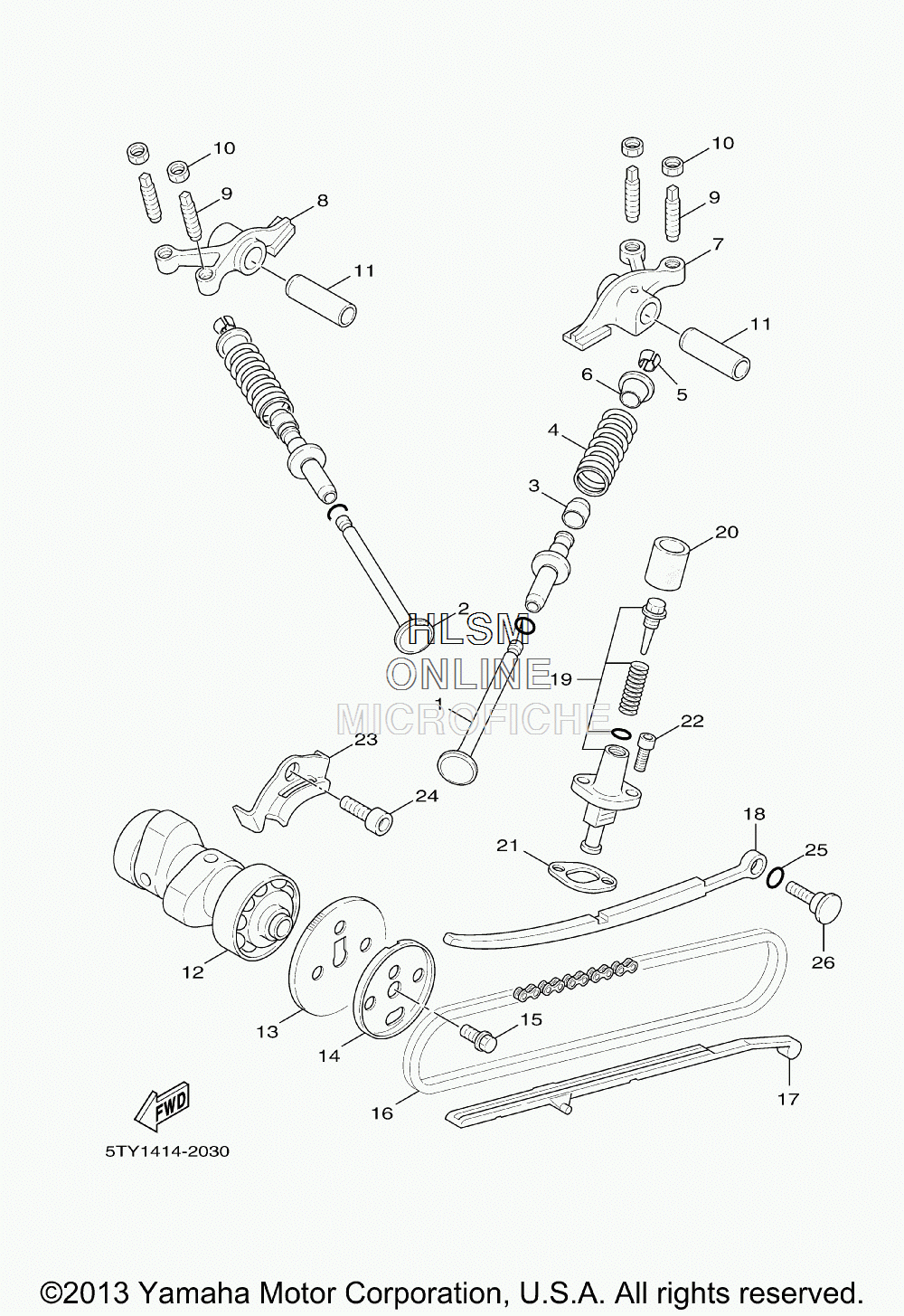

VALVE ASSY. для Yamaha ZUMA 125 - 2014 года выпуска`
-
№АртикулНазвание
-
14C6-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
24C6-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
35ML-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
45ML-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
55WG-E2118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
64C6-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
71P3-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
81P3-E2161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
95FM-E2159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1090170-05800-00 NUTNUT
-
115HK-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
125S9-E2170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
135LW-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
145ML-E1145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
1595817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1694568-75094-00 CHAINCHAIN
-
175ML-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
185ML-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
195ML-E2210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
204CW-E2232-00-00 DAMPERDAMPER
-
214DH-E2213-01-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2291317-06016-00 BOLTBOLT
-
235ML-E111F-00-00 PLATEPLATE
-
2491317-06012-00 BOLTBOLT
-
2593210-15862-00 O-RINGO-RING
-
263B3-E2157-00-00 BOLTBOLT
