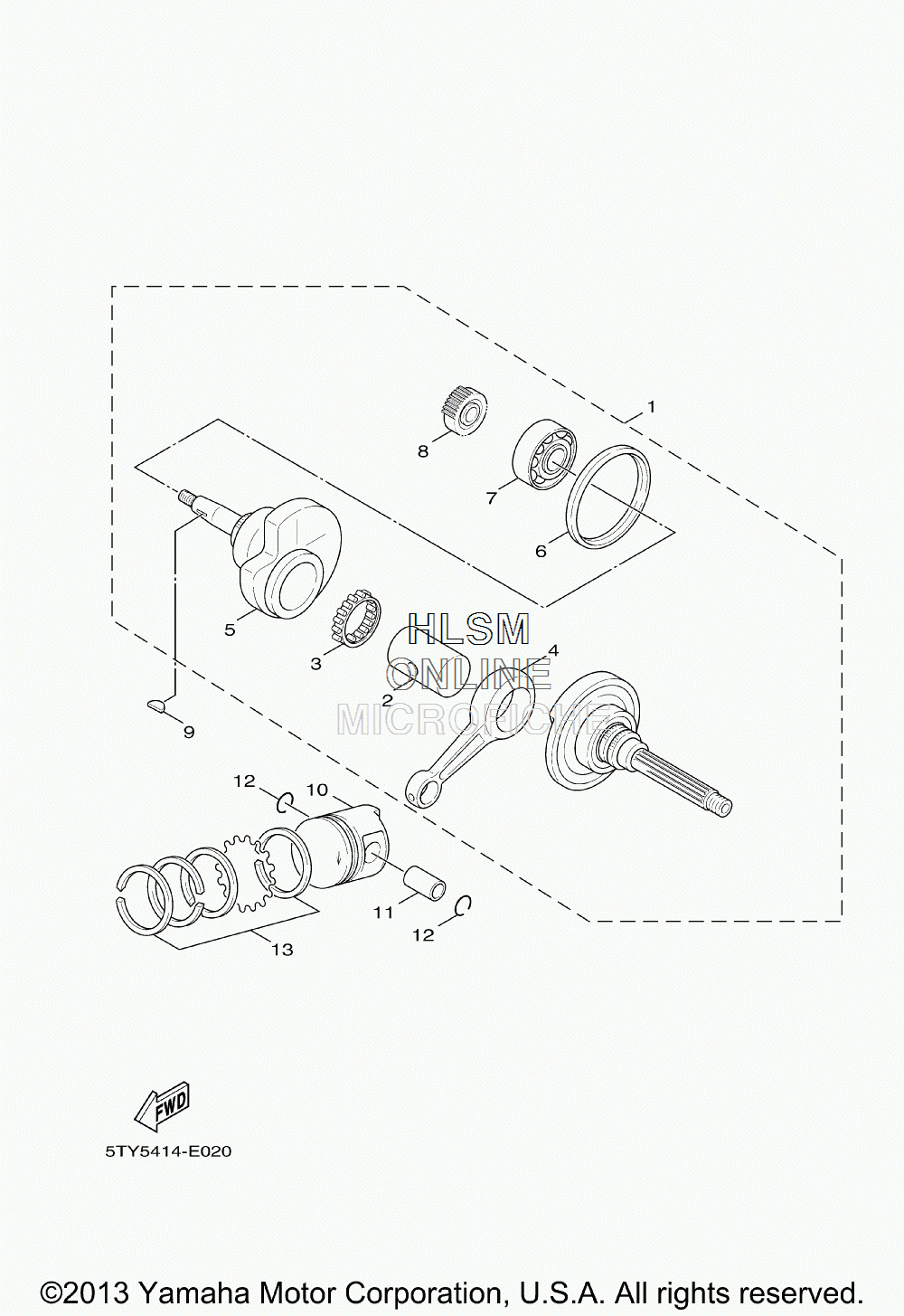

CRANKSHAFT W/ PISTON ASSY. для Yamaha ZUMA 125 - 2014 года выпуска`
-
№АртикулНазвание
-
15S9-E1400-02-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25ML-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
393310-528Y9-00 ...BEARING...BEARING
-
45LW-E1651-10-00 ...ROD, CONNECTING...ROD, CONNECTING
-
51P3-E1422-00-00 ...CRANK 2...CRANK 2
-
65ML-E3452-00-00 ...COVER, ROTOR FILTER...COVER, ROTOR FILTER
-
793306-372Y3-00 ...BEARING...BEARING
-
85ML-E3324-00-00 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
990280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
105ML-E1631-10-00 PISTON (STD)PISTON (STD)
-
115LW-E1633-00-00 PIN, PISTONPIN, PISTON
-
1293450-16068-00 CIRCLIPCIRCLIP
-
134C6-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
