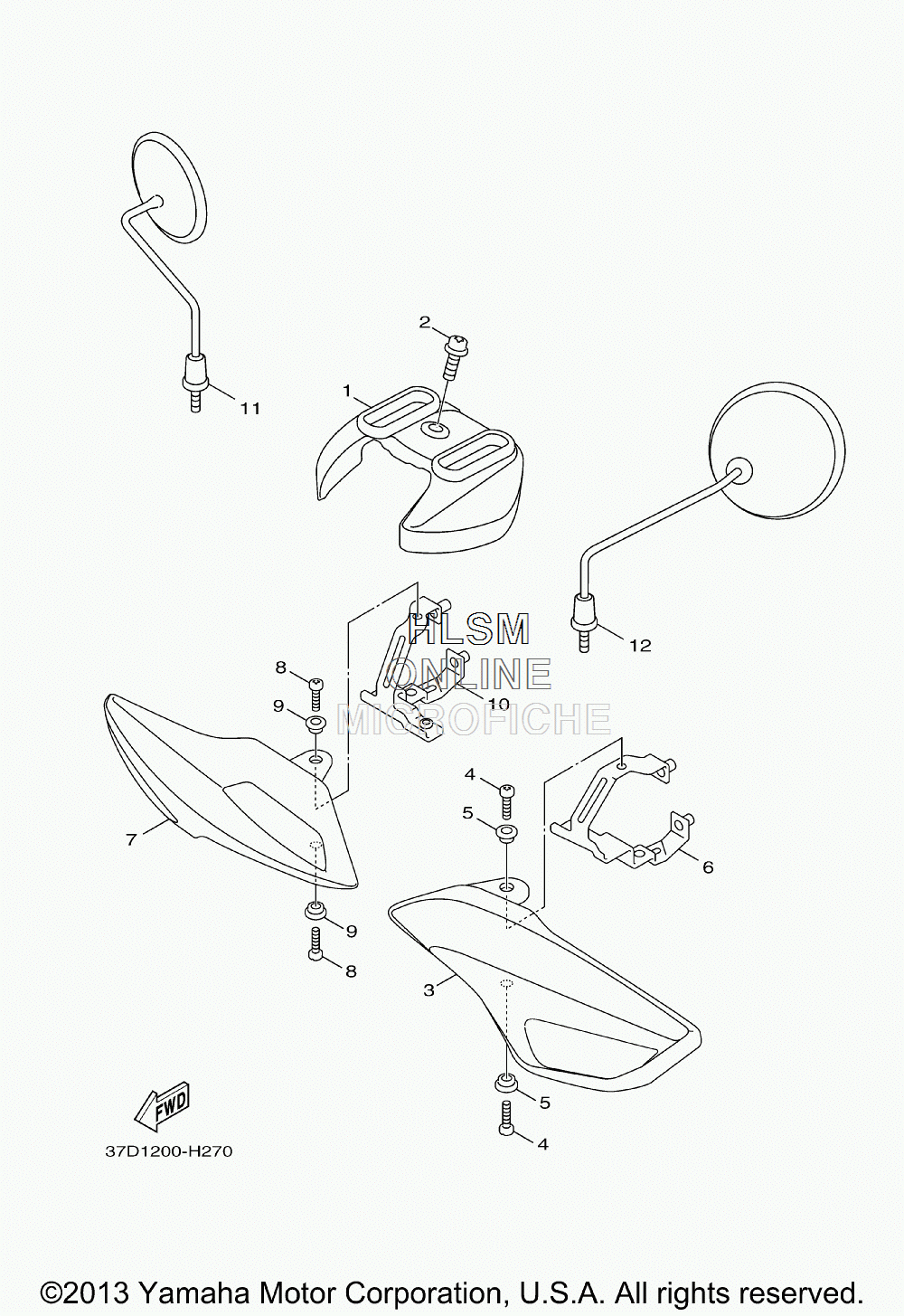

HANDLEBAR - COVER W/ MIRRORS для Yamaha ZUMA 125 - 2014 года выпуска`
-
№АртикулНазвание
-
15S9-F6143-01-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
290159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
35S9-F6141-01-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
498907-05014-00 SCREW, BINDSCREW, BIND
-
590387-06868-00 COLLARCOLLAR
-
65S9-F612K-02-00 BRKT 2BRKT 2
-
75S9-F6142-01-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
898907-05014-00 SCREW, BINDSCREW, BIND
-
990387-06868-00 COLLARCOLLAR
-
105S9-F612L-02-00 BRACKET 3BRACKET 3
-
114VP-F6290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
124VP-F6280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
