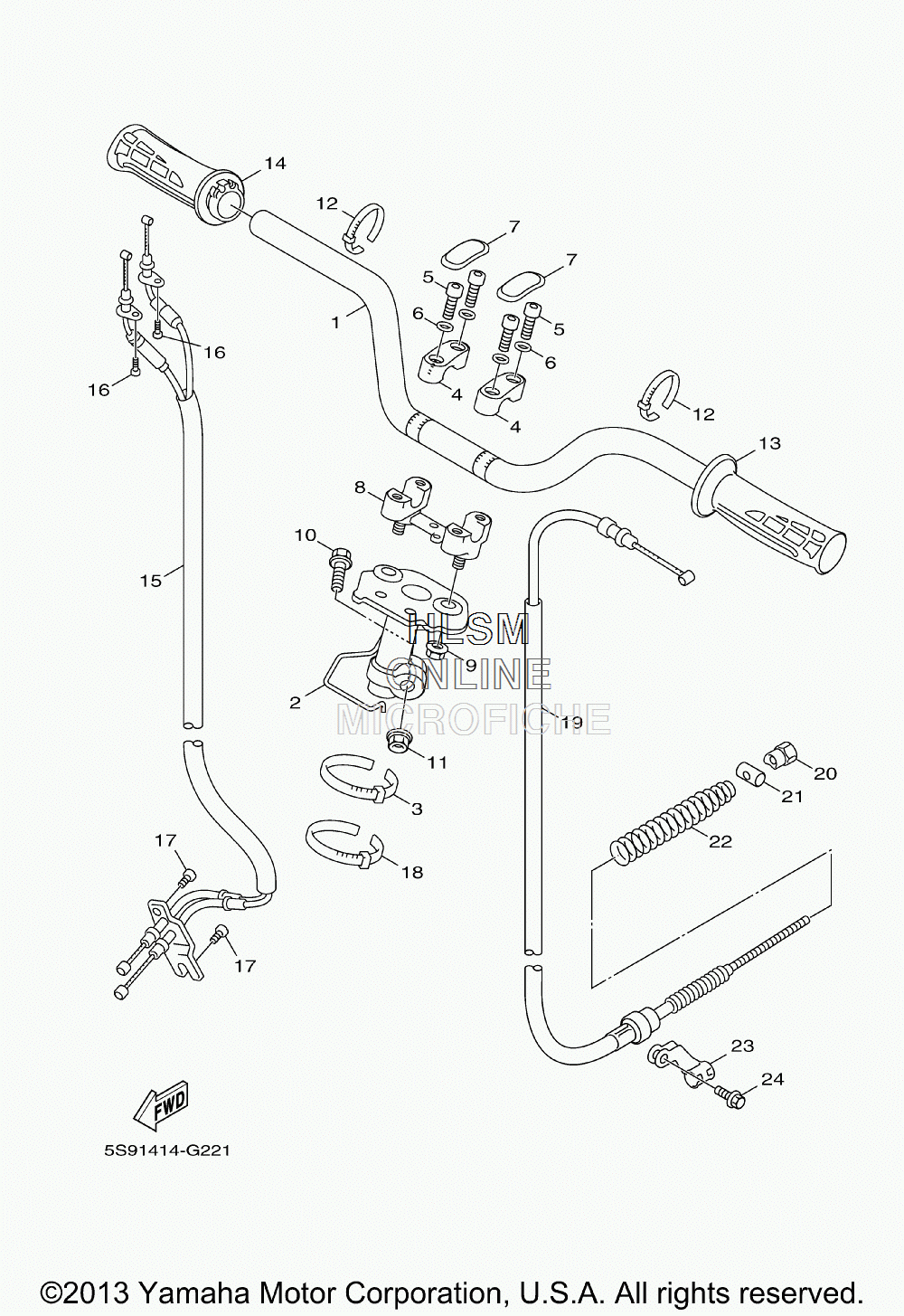

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ZUMA 125 - 2014 года выпуска`
-
№АртикулНазвание
-
132S-F6111-00-00 HANDLEBARHANDLEBAR
-
25S9-F3461-02-00 BRACKET, HANDLEBRACKET, HANDLE
-
390464-12812-00 CLAMPCLAMP
-
41MH-F3441-01-35 HOLDER, HANDLE UPPER (SILVER)HOLDER, HANDLE UPPER (SILVER)
-
591317-08025-00 BOLTBOLT
-
690201-08823-00 WASHER, PLATEWASHER, PLATE
-
71MH-F3469-00-00 CAP, BOLTCAP, BOLT
-
85FH-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
990185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-10036-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1190185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1231U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
135ML-F6241-01-00 GRIPGRIP
-
145UA-F6240-00-00 GRIP ASSYGRIP ASSY
-
155S9-F6301-10-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1692012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1791317-05010-00 BOLTBOLT
-
1890464-12812-00 CLAMPCLAMP
-
1932S-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
2090179-06843-00 NUTNUT
-
2190249-12008-00 PIN SPEC'L SHAPEPIN SPEC'L SHAPE
-
2290501-16801-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
235S9-F637H-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
2495827-06012-00 BOLT, FLANGEBOLT, FLANGE
