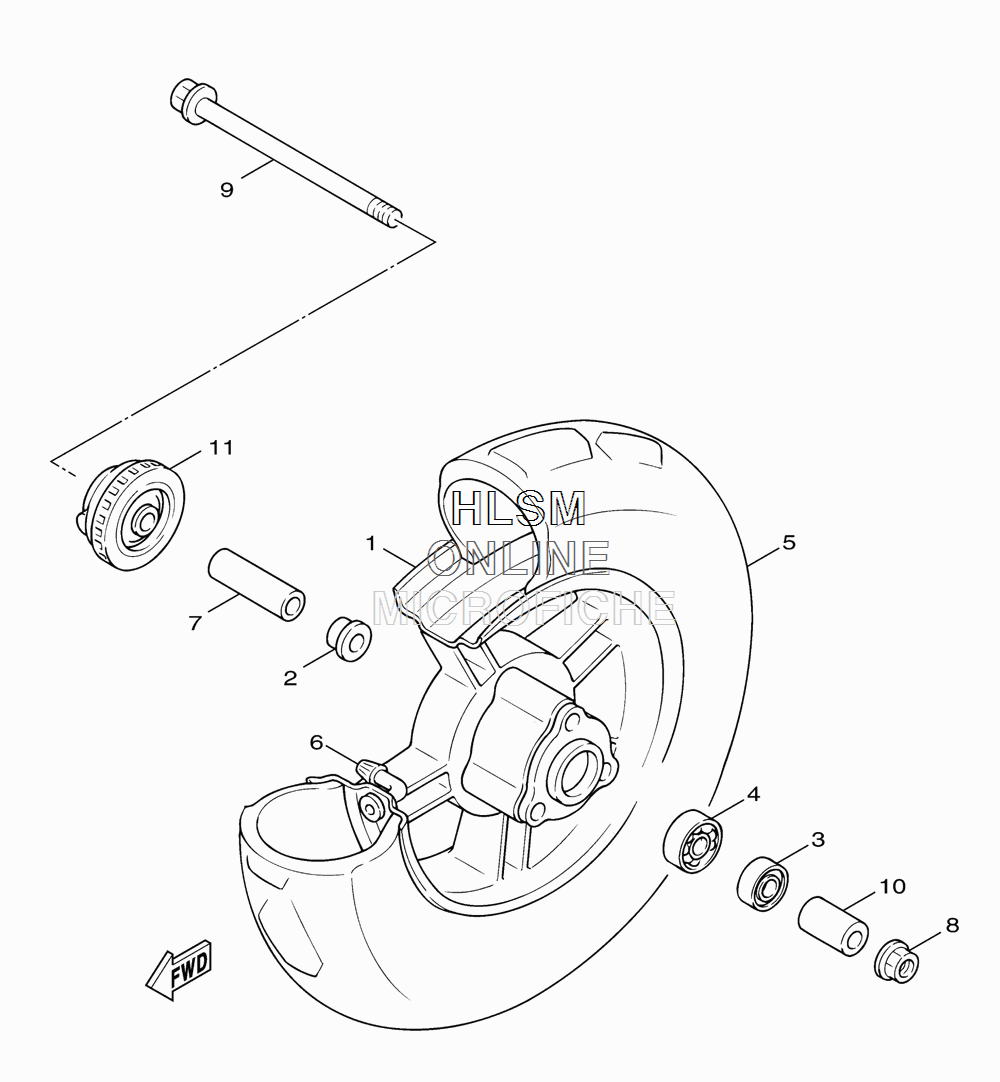

WHEEL - FRONT для Yamaha ZUMA 50 - 2013 года выпуска`
-
№АртикулНазвание
-
11CD-F5168-00-33 CAST WHEEL, FRONT (BLACK)CAST WHEEL, FRONT (BLACK)
-
220A-F5115-00-00 FLANGE, SPACER 1FLANGE, SPACER 1
-
393106-20808-00 OIL SEALOIL SEAL
-
493306-300Y4-00 BEARINGBEARING
-
594112-10800-00 TIRE (120/90-10 C6022-5 CHTIRE (120/90-10 C6022-5 CH
-
693900-00802-00 VALVE, RIMVALVE, RIM
-
74VP-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
890185-10812-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
94VP-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1090387-108G4-00 COLLARCOLLAR
-
115FA-F5190-10-00 GEAR UNIT ASSYGEAR UNIT ASSY
