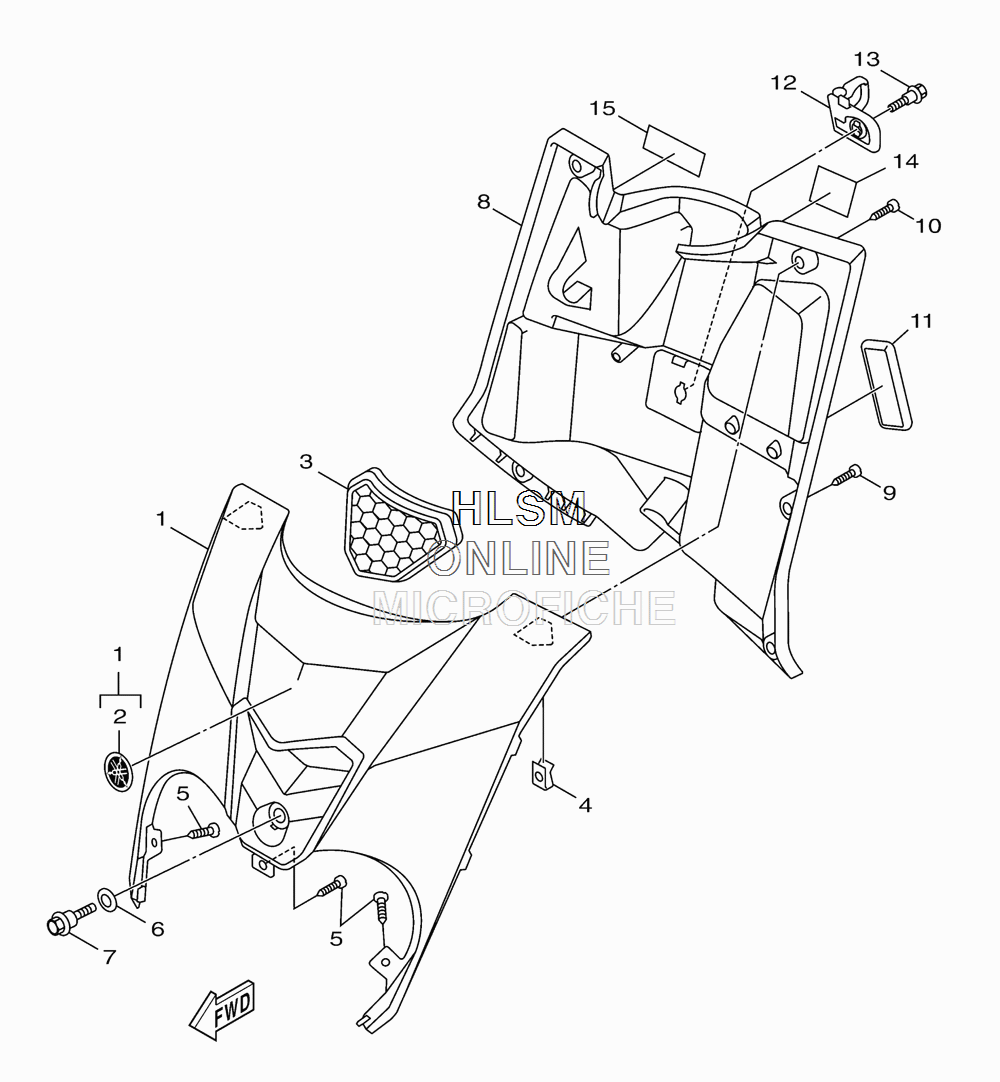

COWLING W/ LEG SHIELD для Yamaha ZUMA 50 - 2013 года выпуска`
-
№АртикулНазвание
-
11CD-F8311-00-P4 LEG SHIELD 1 (MBL2 - BLACK)LEG SHIELD 1 (MBL2 - BLACK)
-
11CD-F8311-00-EY LEG SHIELD 1 (HTR - RED)LEG SHIELD 1 (HTR - RED)
-
25TY-F1569-00-00 GRAPHIC 1GRAPHIC 1
-
31CD-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
490183-05816-00 NUT, SPRINGNUT, SPRING
-
597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690119-06887-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790387-068C3-00 COLLARCOLLAR
-
81CD-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1097707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
115FM-F8349-00-00 CAPCAP
-
121CF-F8379-00-00 HOOKHOOK
-
1390109-06872-00 BOLTBOLT
-
143D1-F4877-11-00 LABEL, CAUTIONLABEL, CAUTION
-
153D1-F118K-10-00 LABEL, CAUTIONLABEL, CAUTION
