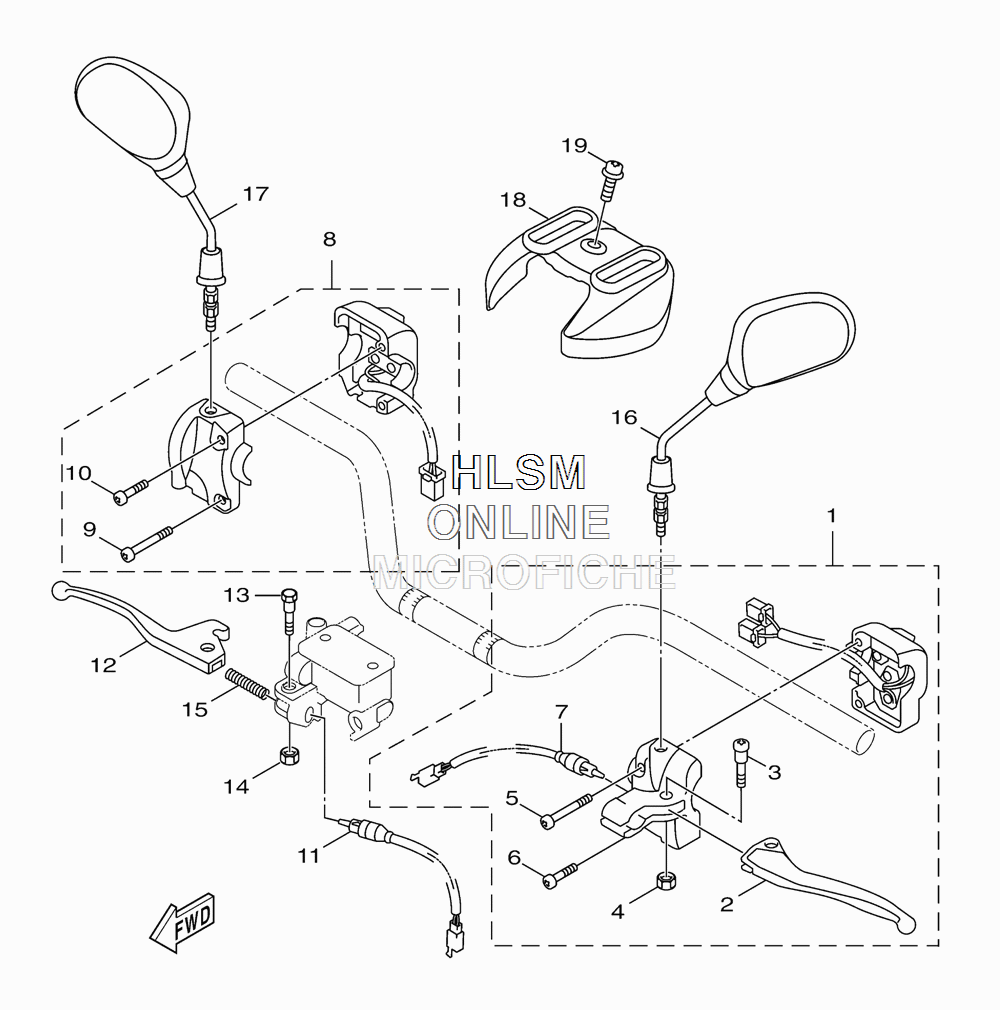

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA 50 - 2013 года выпуска`
-
№АртикулНазвание
-
11CD-H2910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
21CE-H3912-00-00 ...LEVER 1...LEVER 1
-
33XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
495607-05100-00 ...NUT, U...NUT, U
-
598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
698507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
71CD-H3980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
81CD-H3976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
998507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1098507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1132S-H3980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
121DN-H3922-00-00 LEVER 2LEVER 2
-
1341D-H3945-00-00 BOLT, LEVERBOLT, LEVER
-
1495607-06100-00 NUT, UNUT, U
-
1590501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
165SU-F6280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
175SU-F6290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
185S9-F6143-01-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
1990159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
