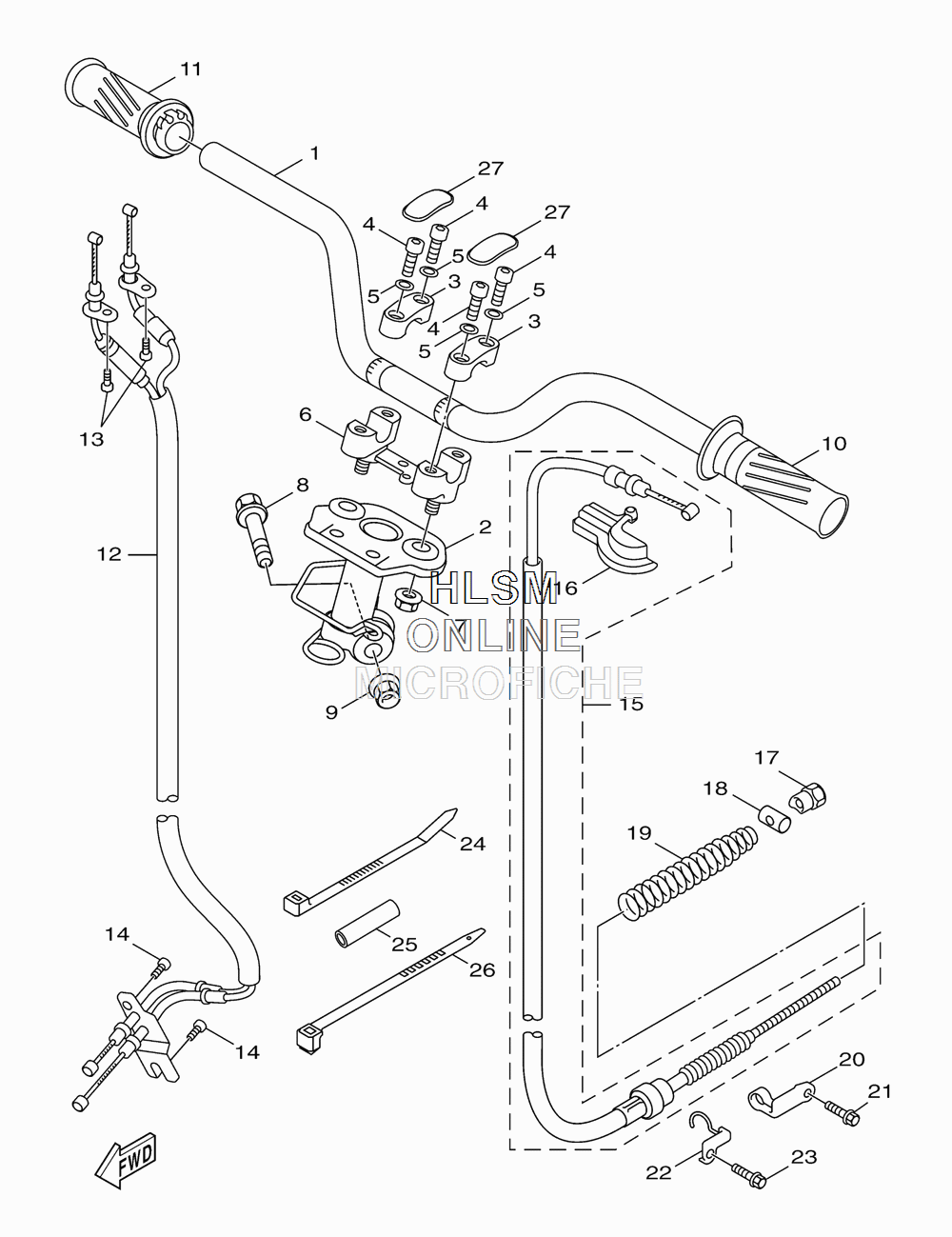

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ZUMA 50 - 2013 года выпуска`
-
№АртикулНазвание
-
11CD-F6111-00-00 HANDLEBARHANDLEBAR
-
21CD-F3461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
31MH-F3441-01-35 HOLDER, HANDLE UPPER (SILVER)HOLDER, HANDLE UPPER (SILVER)
-
491317-08025-00 BOLTBOLT
-
590201-08823-00 WASHER, PLATEWASHER, PLATE
-
65FH-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
790185-10814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890105-10036-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
990185-10814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
105ML-F6241-01-00 GRIPGRIP
-
111CD-F6240-10-00 GRIP ASSYGRIP ASSY
-
121CD-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1391317-05010-00 BOLTBOLT
-
1492012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
151CD-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
161CD-F6372-00-00 ...COVER, HANDLE LEVER 1...COVER, HANDLE LEVER 1
-
1790179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1890249-12806-00 PINPIN
-
1990501-16804-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
203B3-F639F-00-00 HOLDER 2HOLDER 2
-
2195807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
223B3-F637G-01-00 HOLDER, WIREHOLDER, WIRE
-
2395807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2431U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
251CD-F117G-00-00 PROTECTORPROTECTOR
-
2690464-26800-00 CLAMPCLAMP
-
271MH-F3469-00-00 CAP, BOLTCAP, BOLT
