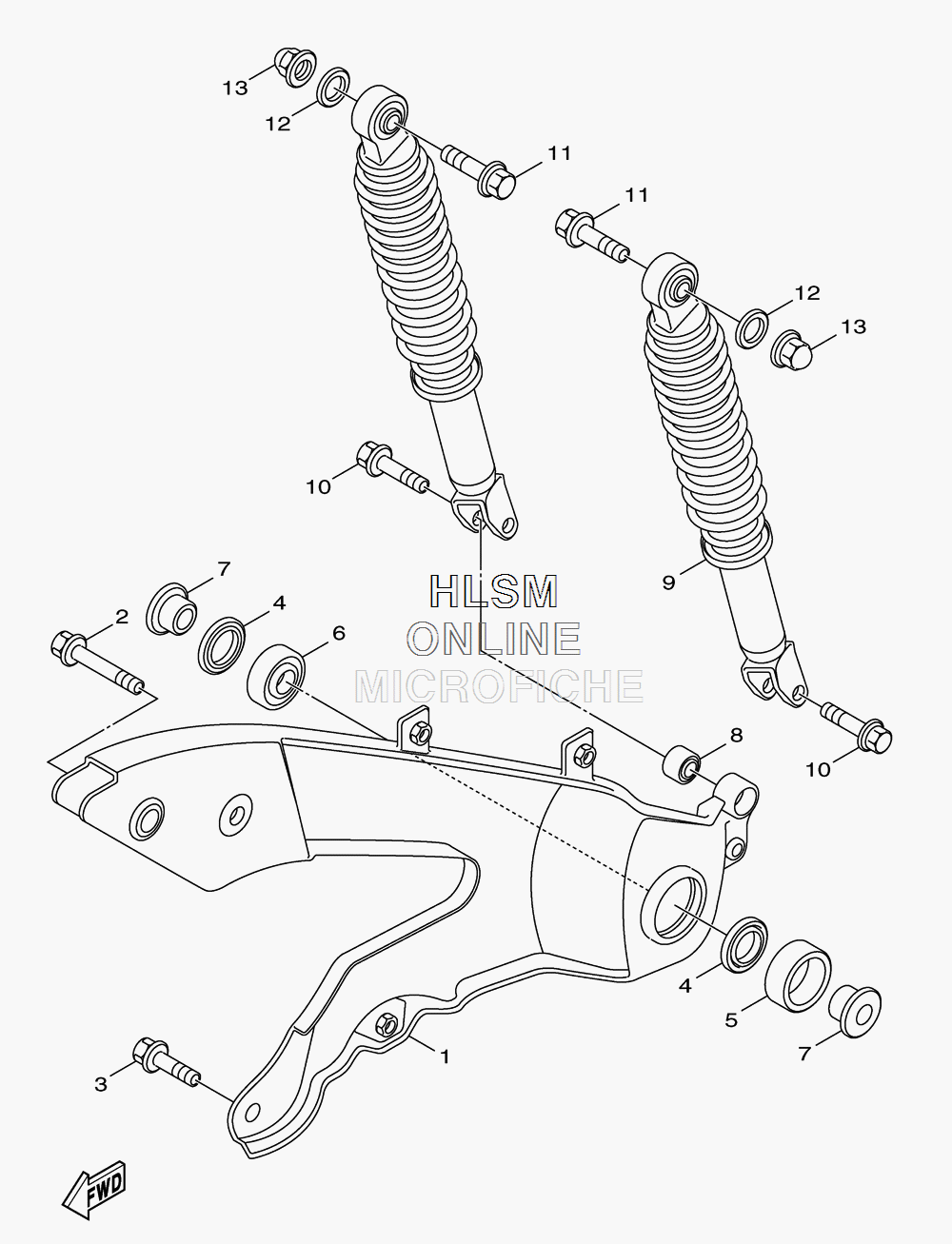

SUSPENSION - REAR ARM W/ SHOCK для Yamaha ZUMA 125 - 2012 года выпуска`
-
№АртикулНазвание
-
15S9-F2110-01-00 REAR ARM COMP.REAR ARM COMP.
-
295827-08045-00 BOLT, FLANGEBOLT, FLANGE
-
395827-08025-00 BOLT, FLANGEBOLT, FLANGE
-
493106-20813-00 OIL SEALOIL SEAL
-
53UH-F2184-00-00 BUSHBUSH
-
693306-202X1-00 BEARINGBEARING
-
75S9-F5315-00-00 FLANGE, SPACERFLANGE, SPACER
-
84X6-F2216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
924P-F2210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1090105-08121-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190101-10875-00 BOLTBOLT
-
1290201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1395307-10800-00 NUTNUT
