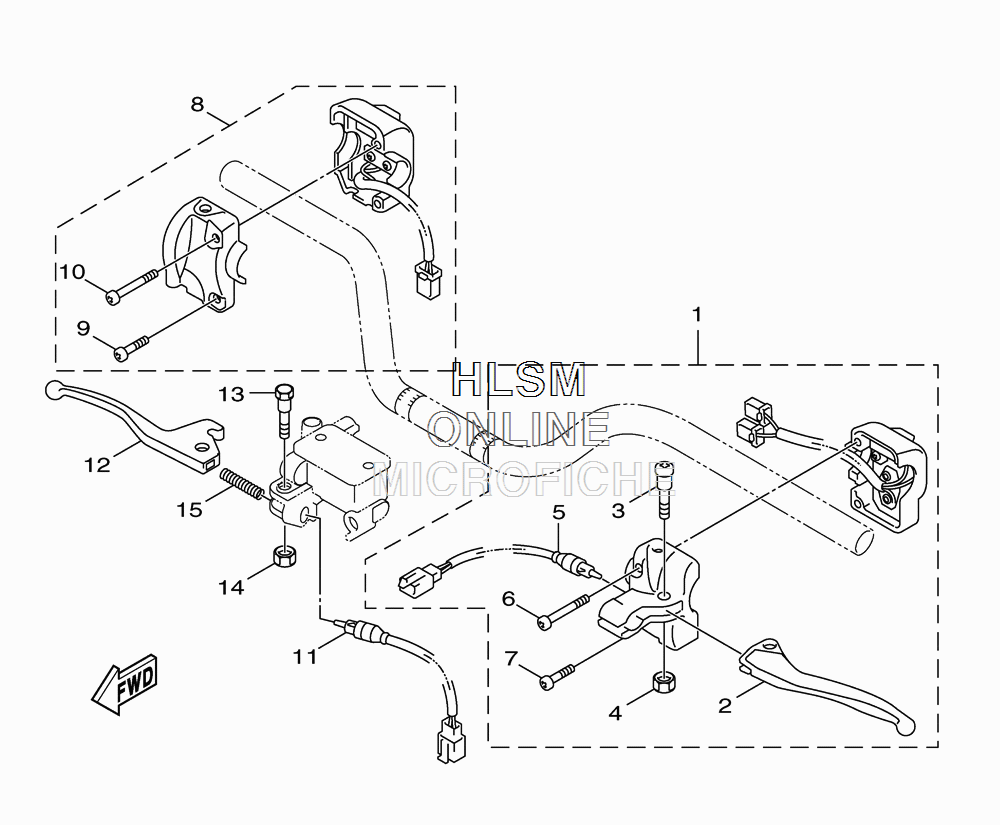

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha ZUMA 125 - 2012 года выпуска`
-
№АртикулНазвание
-
124P-H2910-30-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24VP-H3912-10-00 ...LEVER 1...LEVER 1
-
33XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
495607-05100-00 ...NUT, U...NUT, U
-
55S9-H3980-20-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
698517-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798517-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
832S-H3976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
998507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1098507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1132S-H3980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
121DN-H3922-00-00 LEVER 2LEVER 2
-
1341D-H3945-00-00 BOLT, LEVERBOLT, LEVER
-
1495607-06100-00 NUT, UNUT, U
-
1590501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
