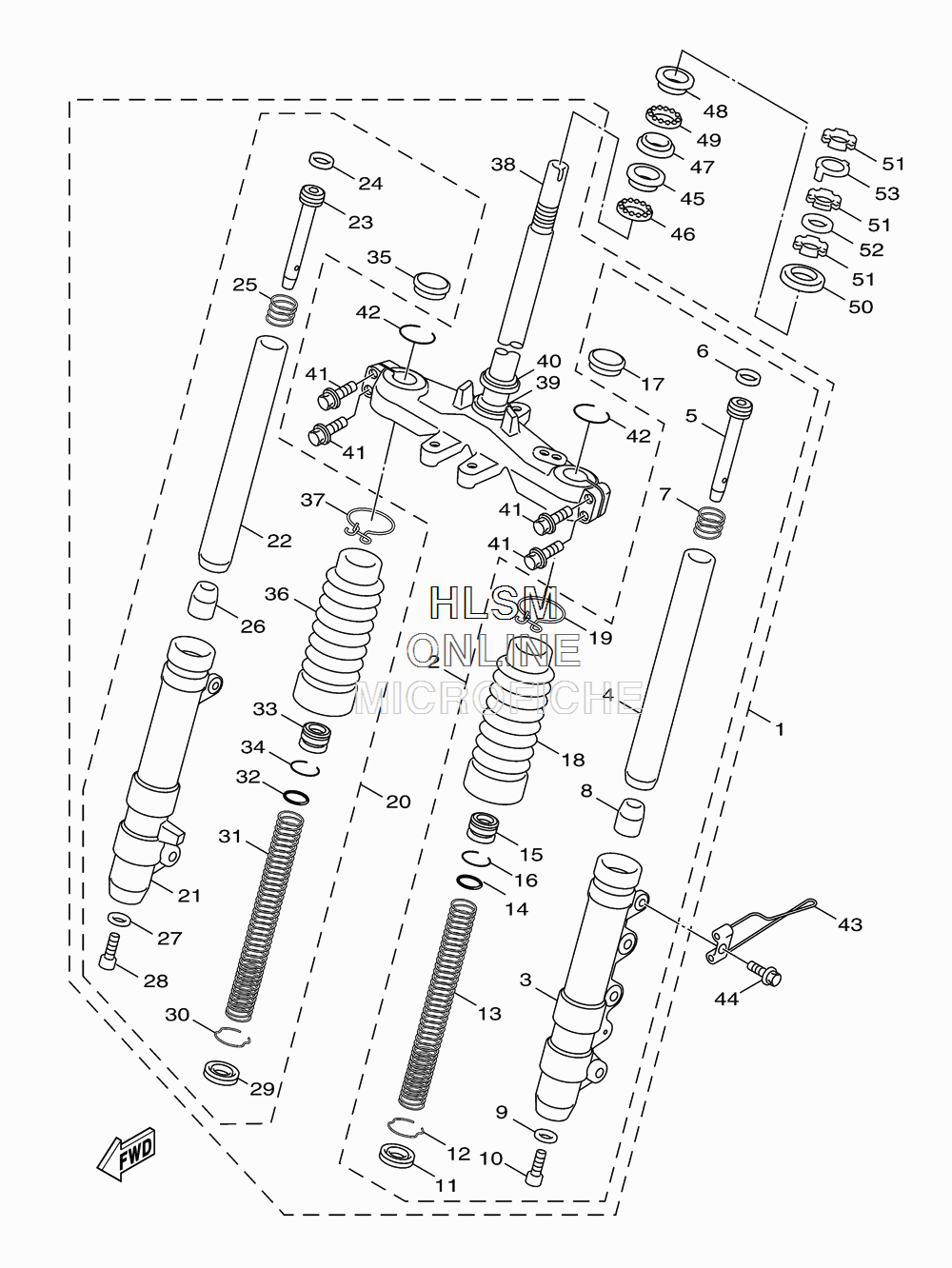

SUSPENSION - FRONT FORK для Yamaha ZUMA 125 - 2012 года выпуска`
-
№АртикулНазвание
-
124P-F3100-00-00 FRONT FORK ASSYFRONT FORK ASSY
-
224P-F3102-00-00 ...FRONT FORK ASSY (LEFT)...FRONT FORK ASSY (LEFT)
-
35S9-F3126-00-00 ......TUBE, OUTER (LEFT)......TUBE, OUTER (LEFT)
-
45S9-F3110-00-00 ......INNER TUBE COMP 1......INNER TUBE COMP 1
-
524P-F3142-00-00 ......SEAT, SPRING UPPER......SEAT, SPRING UPPER
-
64C6-F318X-00-00 ......PISTON RING......PISTON RING
-
74C6-F3151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
84C6-F3171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
94C6-F3158-00-00 ......GASKET......GASKET
-
104C6-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
114C6-F3145-00-00 ......OIL SEAL......OIL SEAL
-
124C6-F3157-00-00 ......RING, PISTON......RING, PISTON
-
135S9-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
144C6-F3147-00-00 ......O-RING......O-RING
-
154C6-F3113-00-00 ......COLLAR......COLLAR
-
164C6-F3155-00-00 ......RING, FELT......RING, FELT
-
174C6-F3154-00-00 ......CAP......CAP
-
184C6-F3191-00-00 ......BOOT......BOOT
-
194C6-F3192-00-00 ......BAND......BAND
-
2024P-F3103-00-00 ...FRONT FORK ASSY (RIGHT)...FRONT FORK ASSY (RIGHT)
-
215S9-F3136-00-00 ......TUBE, OUTER (RIGHT)......TUBE, OUTER (RIGHT)
-
225S9-F3110-00-00 ......INNER TUBE COMP 1......INNER TUBE COMP 1
-
2324P-F3142-00-00 ......SEAT, SPRING UPPER......SEAT, SPRING UPPER
-
244C6-F318X-00-00 ......PISTON RING......PISTON RING
-
254C6-F3151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
264C6-F3171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
274C6-F3158-00-00 ......GASKET......GASKET
-
284C6-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
294C6-F3145-00-00 ......OIL SEAL......OIL SEAL
-
304C6-F3157-00-00 ......RING, PISTON......RING, PISTON
-
315S9-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
324C6-F3147-00-00 ......O-RING......O-RING
-
334C6-F3113-00-00 ......COLLAR......COLLAR
-
344C6-F3155-00-00 ......RING, FELT......RING, FELT
-
354C6-F3154-00-00 ......CAP......CAP
-
364C6-F3191-00-00 ......BOOT......BOOT
-
374C6-F3192-00-00 ......BAND......BAND
-
385S9-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
393KW-F3462-00-00 ...SEAL, DUST...SEAL, DUST
-
404C6-F3411-10-00 ...RACE, BALL 1...RACE, BALL 1
-
414C6-F3346-00-00 ...BOLT 1...BOLT 1
-
424C6-F3153-00-00 ...RING, SNAP...RING, SNAP
-
435S9-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
449580L-06010-00 BOLT, FLANGEBOLT, FLANGE
-
454C6-F3412-00-00 RACE, BALL 2RACE, BALL 2
-
464C6-F341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
474C6-F3414-00-00 RACE, BALL 4RACE, BALL 4
-
484C6-F3413-00-00 RACE, BALL 3RACE, BALL 3
-
494C6-F341D-00-00 RETAINER, BALL BEARING 2RETAINER, BALL BEARING 2
-
504C6-F3416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
5190179-25811-00 NUTNUT
-
5290202-26142-00 WASHER, PLATEWASHER, PLATE
-
534VP-F3418-00-00 WASHER, SPECIALWASHER, SPECIAL
