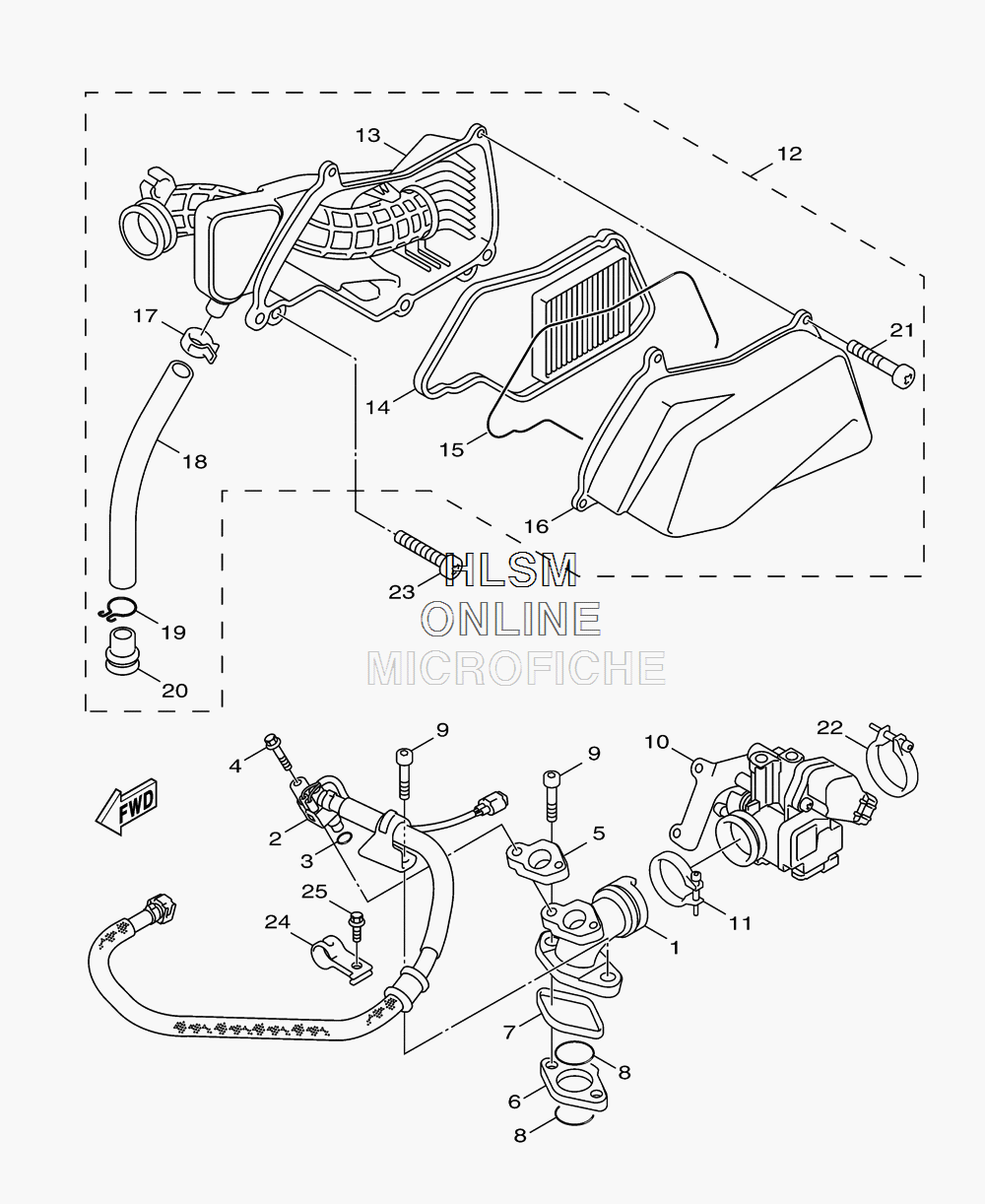

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA 125 - 2012 года выпуска`
-
№АртикулНазвание
-
14P9-E3585-10-00 MANIFOLDMANIFOLD
-
25S9-13930-03-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
35CA-14147-00-00 O-RINGO-RING
-
495817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
54P9-E3556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
64P9-E3595-01-00 JOINTJOINT
-
74P9-E4239-00-00 SEALSEAL
-
893210-29574-00 O-RINGO-RING
-
990110-06256-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
105S9-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
114P9-E3575-00-00 BANDBAND
-
125S9-E4410-11-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
135S9-WE441-11-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
145S9-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
155S9-E4467-00-00 ...SEAL...SEAL
-
165S9-WE442-00-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
1790467-13813-00 ...CLIP...CLIP
-
185S9-E443E-01-00 ...PIPE, DRAIN...PIPE, DRAIN
-
1990467-12052-00 ...CLIP...CLIP
-
2090338-11820-00 ...PLUG...PLUG
-
2197607-06220-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
224C7-E3575-00-00 BANDBAND
-
2397607-06230-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
245S9-F419A-00-00 HOLDERHOLDER
-
2595807-06012-00 BOLT, FLANGEBOLT, FLANGE
